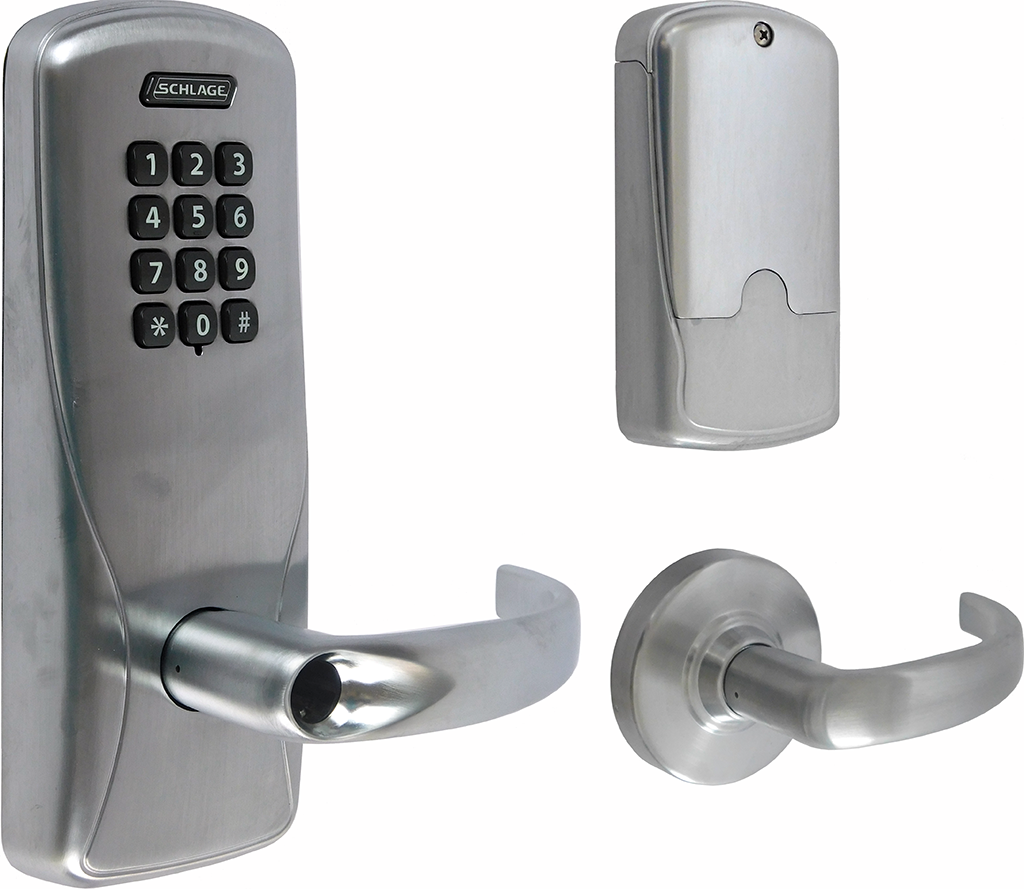

Schlage Electronic Security CO200-MS70KP-SPA626 LD Standalone Keypad Classroom/Storeroom Mortise Lock combines robust security with user-friendly access control. Designed for commercial environments, this Grade 1 lock features a Sparta lever and is finished in elegant Satin Chrome (626). With the ability to support up to 2,000 users and maintain an audit trail of the same number, it offers flexible access management without the complexities of a networked system. The CO-200 is both computer and manually programmable, allowing you to issue electronic credentials easily while minimizing mechanical key distribution-enhancing your key system's integrity. The lock accommodates various door thicknesses from 1-3/8" to 2-3/4" and is compatible with multiple cylinder types for added convenience. User rights are stored directly on the lock, enabling on-site additions or deletions. The tri-colored LED indicators visually communicate lock status, while the mechanical key override ensures access during power outages. This lock is also ANSI/BHMA A156.25 and UL 294 certified, ensuring it meets the highest standards for quality and reliability. Whether for storerooms or classrooms, the Schlage CO200-MS70KP-SPA626 LD lock delivers peace of mind with its advanced features and durable construction, making it a smart choice for any facility.

Standalone Keypad Classroom/Storeroom Mortise Lock, Computer or Manually Programmed, Users Rights Stored on Lock, Sparta Lever, Less Cylinder, Grade 1, 626/US26D Satin Chrome

The CO series is the ideal solution for customers seeking the added security and convenience of electronic access control without the cost or complexity of a fully networked system. The CO-200 is computer or manually programmable with users rights stored on the lock. The Schlage utility software (SUS) mobile app on compatible Android devices is used in conjunction with your access control software and allows you to easily add or delete users and retrieve audits. By issuing electronic credentials you can minimize the number of mechanical keys issued which protects the integrity of your key system. A variety of credential readers are also available including keypad only, magnetic stripe, and proximity. The magnetic stripe and proximity readers are also available with keypad for the added security of dual authentication. Cylindrical, mortise, mortise deadbolt, and exit trim chassis options are available as well as a wide variety of finishes and levers to suite with your existing hardware. Mechanical key override is standard and compatible with multiple cylinder types. The CO series is also compatible with many popular brands and types of exit devices. The CO series has been tested the highest standards in the industry to ensure quality and reliability you have come to expect from Schlage. The CO series is ANSI/BHMA A156.25, ANSI/BHMA grade 1 certified and UL 294 listed.

Features:

• Computer programmable with audit trail
• Up to 2,000 users and up to 2,000 audits. Depending on access control software.
• Up to 32 holidays and 16 time zones. Depending on access control software.
• User rights stored on the lock
• The ability to add and delete users at the lock
• Available in cylindrical, mortise, mortise deadbolt, and exit trim
• Compatible with major brands of key systems and exit devices
• Classroom/storeroom, office, and privacy functions available
• Programmable option for lighted occupancy indication. Available on privacy function locks manufactured after February 2019 with firmware version CO.A.30 or higher.
• LED indicator visually communicates lock status

Electronic Lock Specifications:

• Users: Up to 2,000
• Audits: Up to 2,000
• Credential verification time: ≤ 1 second
• Visual/audible communications: Tri-colored LED’s and audible indicators
• Power supply: 4 AA batteries (standard off the shelf: included)
• Voltage range: 4 VDC to 7 VDC
• Battery life: Up to 2 yrs with 4AA batteries
• Operating temperature: Exterior: -31° to 151°F (-35° to 66°C)
• Operating temperature: Interior: 32° to 120°F (0° to 49°C) due to batteries
• Operating humidity: 0 - 100 non-condensing
• Certifications: ANSI/BHMA A156.25; ANSI/BHMA grade 1; UL 294; ULC S319; UL 10C 3 hour; FCC Part 15; industry Canada (IC); ADA compliant

Mechanical Specifications:

• Handing: Handed to order, field reversible
• Door Thickness: 1-3⁄4" standard, 1-3⁄8" to 2-3⁄4" optional (available in 1⁄8" increments)
• Backset:
• Cylindrical: Standard: 2-3⁄4". Optional: 2-3⁄8", 3-3⁄4", 5"
• Mortise: 2-3⁄4" only
• Latch Bolt:
• Cylindrical: Standard: 1⁄2" throw. Optional: 3⁄4" throw
• Mortise: Standard: 3⁄4" throw. Optional: 1" throw on mortise deadbolt
• Levers: Pressure cast zinc, plated
• Strike: Standard: 1-3⁄16" lip, ANSI, 1-1⁄4" x 4-7⁄8"
• Cylinder and keys: 6-pin Everest 29 S123 keyway Conventional cylinder with two patented keys standard.

Functions:

• 40: Privacy
• 50: Office/classroom
• 70: Storeroom

Chassis:

• CY: Cylindrical
• MS: Mortise
• MD: Mortise deadbolt
• 993R: Exit trim – Rim/CVC/CVR
• 993S: Exit trim – SVR
• 993M: Exit trim – mortise
• 993DT: Dummy exit trim

Levers:

• ATH: Athens
• BRK: Boardwalk
• BRW: Broadway
• LAT: Latitude
• LON: Longitude
• RHO: Rhodes
• SPA: Sparta
• TLR: Tubular

Finishes:

• 605 - Bright brass
• 606 - Satin brass
• 612 - Satin bronze
• 619 - Satin nickel
• 625 - Bright chrome
• 626 - Satin chrome
• 643e - Aged bronze
• 626AM - Satin chrome antimicrobial
