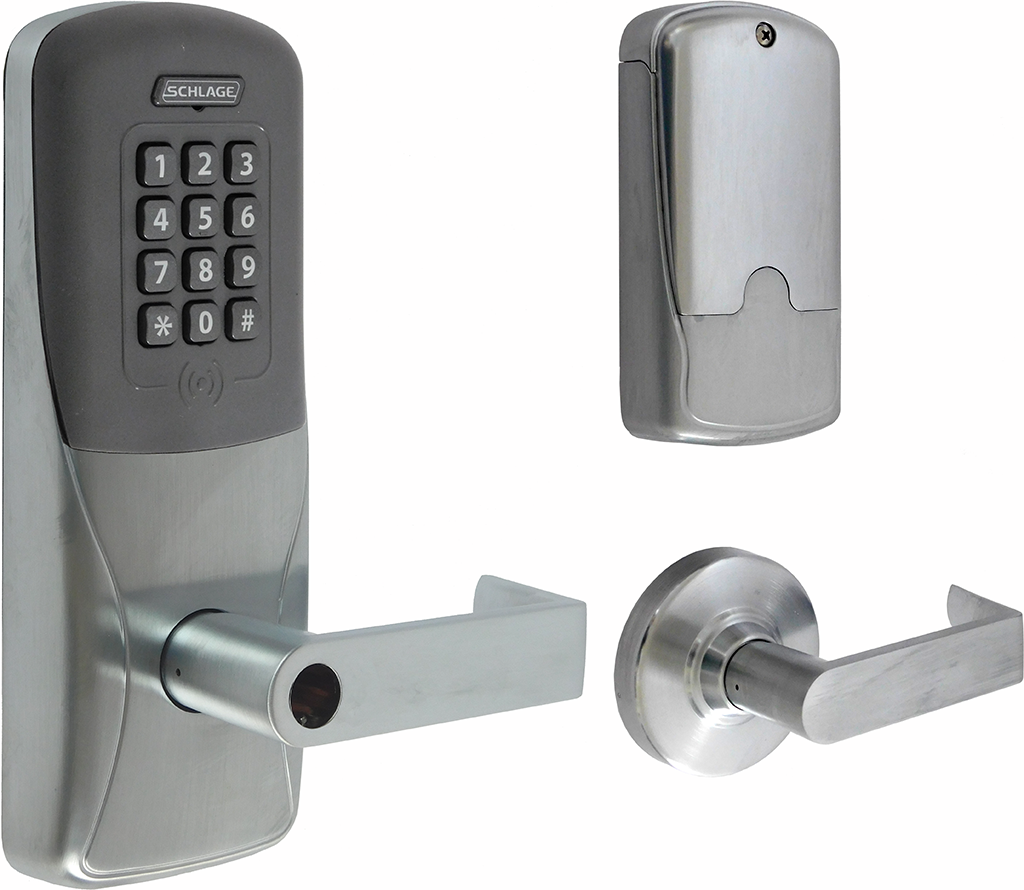

Schlage Electronic Security CO200-MS70PRK-RHO626 LD Standalone Proximity and Keypad Classroom/Storeroom Mortise Lock offers a robust security solution ideal for commercial environments. This Grade 1 lock combines electronic access control with the ease of standalone programming, allowing for computer or manual setup. With the capacity to store rights for up to 2,000 users and maintain an audit trail of the same size, this lock ensures that access is managed efficiently. The CO series supports various credential options, including keypad, magnetic stripe, and proximity readers, enhancing security through dual authentication capabilities. The Rhodes lever adds an elegant touch, while the satin chrome finish ensures durability and aesthetic appeal. Installation flexibility allows for compatibility with a range of door thicknesses (from 1-3/8" to 2-3/4") and backsets. The lock operates on standard 4 AA batteries, offering a battery life of up to 2 years, suitable for a wide range of temperatures and humidity levels. Certified to the highest industry standards, including ANSI/BHMA A156.25 and UL 294, the CO200 is built for reliability. This lock is the perfect choice for those looking to enhance security without the complexities of a fully networked system.

Standalone Proximity and Keypad Classroom/Storeroom Mortise Lock, Computer or Manually Programmed, Users Rights Stored on Lock, Rhodes Lever, Less Cylinder, Grade 1, 626/US26D Satin Chrome

The CO series is the ideal solution for customers seeking the added security and convenience of electronic access control without the cost or complexity of a fully networked system. The CO-200 is computer or manually programmable with users rights stored on the lock. The Schlage utility software (SUS) mobile app on compatible Android devices is used in conjunction with your access control software and allows you to easily add or delete users and retrieve audits. By issuing electronic credentials you can minimize the number of mechanical keys issued which protects the integrity of your key system. A variety of credential readers are also available including keypad only, magnetic stripe, and proximity. The magnetic stripe and proximity readers are also available with keypad for the added security of dual authentication. Cylindrical, mortise, mortise deadbolt, and exit trim chassis options are available as well as a wide variety of finishes and levers to suite with your existing hardware. Mechanical key override is standard and compatible with multiple cylinder types. The CO series is also compatible with many popular brands and types of exit devices. The CO series has been tested the highest standards in the industry to ensure quality and reliability you have come to expect from Schlage. The CO series is ANSI/BHMA A156.25, ANSI/BHMA grade 1 certified and UL 294 listed.

Features:

• Computer programmable with audit trail
• Up to 2,000 users and up to 2,000 audits. Depending on access control software.
• Up to 32 holidays and 16 time zones. Depending on access control software.
• User rights stored on the lock
• The ability to add and delete users at the lock
• Available in cylindrical, mortise, mortise deadbolt, and exit trim
• Compatible with major brands of key systems and exit devices
• Classroom/storeroom, office, and privacy functions available
• Programmable option for lighted occupancy indication. Available on privacy function locks manufactured after February 2019 with firmware version CO.A.30 or higher.
• LED indicator visually communicates lock status

Electronic Lock Specifications:

• Users: Up to 2,000
• Audits: Up to 2,000
• Credential verification time: ≤ 1 second
• Visual/audible communications: Tri-colored LED’s and audible indicators
• Power supply: 4 AA batteries (standard off the shelf: included)
• Voltage range: 4 VDC to 7 VDC
• Battery life: Up to 2 yrs with 4AA batteries
• Operating temperature: Exterior: -31° to 151°F (-35° to 66°C)
• Operating temperature: Interior: 32° to 120°F (0° to 49°C) due to batteries
• Operating humidity: 0 - 100 non-condensing
• Certifications: ANSI/BHMA A156.25; ANSI/BHMA grade 1; UL 294; ULC S319; UL 10C 3 hour; FCC Part 15; industry Canada (IC); ADA compliant

Mechanical Specifications:

• Handing: Handed to order, field reversible
• Door Thickness: 1-3⁄4" standard, 1-3⁄8" to 2-3⁄4" optional (available in 1⁄8" increments)
• Backset:
• Cylindrical: Standard: 2-3⁄4". Optional: 2-3⁄8", 3-3⁄4", 5"
• Mortise: 2-3⁄4" only
• Latch Bolt:
• Cylindrical: Standard: 1⁄2" throw. Optional: 3⁄4" throw
• Mortise: Standard: 3⁄4" throw. Optional: 1" throw on mortise deadbolt
• Levers: Pressure cast zinc, plated
• Strike: Standard: 1-3⁄16" lip, ANSI, 1-1⁄4" x 4-7⁄8"
• Cylinder and keys: 6-pin Everest 29 S123 keyway Conventional cylinder with two patented keys standard.

Functions:

• 40: Privacy
• 50: Office/classroom
• 70: Storeroom

Chassis:

• CY: Cylindrical
• MS: Mortise
• MD: Mortise deadbolt
• 993R: Exit trim – Rim/CVC/CVR
• 993S: Exit trim – SVR
• 993M: Exit trim – mortise
• 993DT: Dummy exit trim

Levers:

• ATH: Athens
• BRK: Boardwalk
• BRW: Broadway
• LAT: Latitude
• LON: Longitude
• RHO: Rhodes
• SPA: Sparta
• TLR: Tubular

Finishes:

• 605 - Bright brass
• 606 - Satin brass
• 612 - Satin bronze
• 619 - Satin nickel
• 625 - Bright chrome
• 626 - Satin chrome
• 643e - Aged bronze
• 626AM - Satin chrome antimicrobial

Resources

• Cut Sheet
