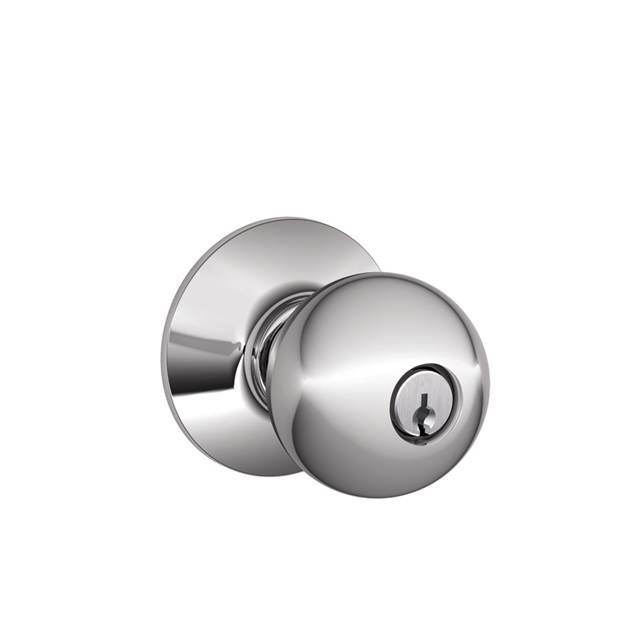

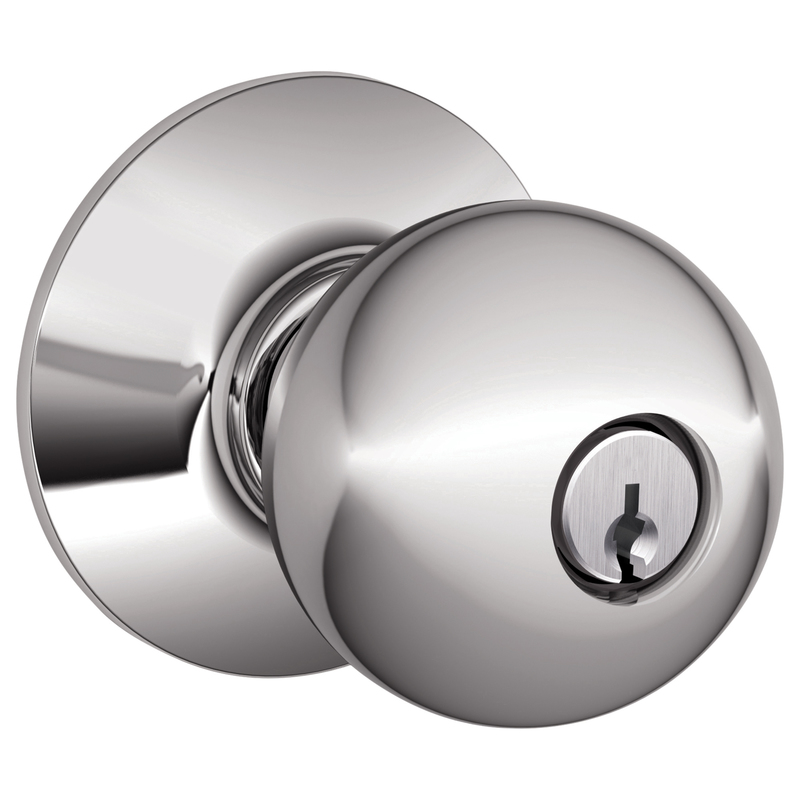

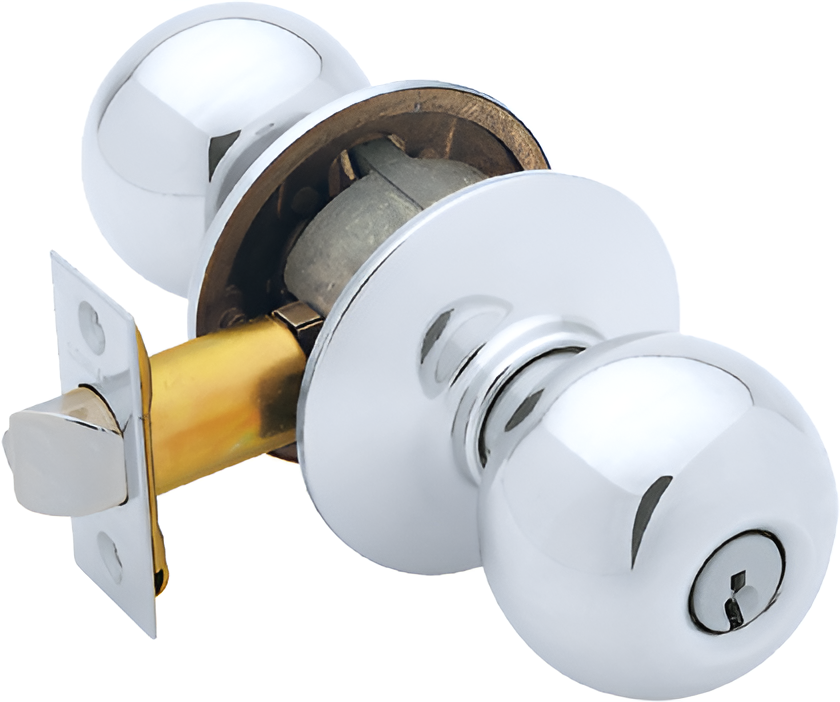

Schlage Residential F51AORB625 Orbit Knob Keyed Entry Lock offers a perfect blend of security and style for residential applications. Designed for doors ranging from 1-3/8" to 1-3/4" thick, this lockset features a durable metal construction that enhances both strength and longevity, ensuring reliable performance in your home. The bright chrome finish not only adds a modern touch but also stands up to the rigors of daily use. This entry lock is equipped with a Schlage C keyway, allowing you to secure your home using a key from the outside or by manually rotating the interior turn button. Its reversible handing makes installation easy and adaptable for various door setups. With a triple option adjustable dead latch supporting backsets of 2-3/8" or 2-3/4", the F51AORB625 accommodates a wide variety of door configurations. Certified as Commercial Grade 2, this lockset is graded best in residential security, durability, and finish. The limited lifetime mechanical and finish warranty underscores Schlage's commitment to quality. The Orbit knob design, along with the Plymouth rose escutcheon, adds a touch of elegance, making this lock not just a security feature but also a stylish addition to your home’s entryway.
For more than 90 years, Schlage has been creating the strongest and most technologically advanced security products for homes, multi-family, commercial, and institutional buildings. We have been meticulous designers, painstaking engineers, and proud craftsmen. From durable mechanical locks to comprehensive electronic access control solutions and biometrics, Schlage provides protection at critical moments–when property and personal security are at stake. In homes, public buildings, and the workplace, at the end of the day, Schlage stands for one thing: strong.
Attributes
Alternate Codes: 043156730612, 118857, 216390, 988339, F51AORB625, F51ORB625, SCHF51ORB625
Ansi Function: F81 - Office
Backset: Triple Option Adjustable Dead Latch, 2-3/8" or 2-3/4" Backset
Bolt Protection: 1/2 In.
Category: Mechanical Residential Locksets
Crossbore Size: 2-1/8" Bore
Cylinder Included: Yes
Cylinder Type: 5 Pin Cylinder
Design: Orbit Knob
Dimension: 2-1/8" Knob and 2-7/8" Projection with 2-3/4" Rose
Door Bore Size: 2-1/8"
Door Range: 1-3/8" to 1-3/4"
Door Thickness: 1-3/8 In. - 1-3/4 In.
Door Thickness Max: 1-3/4"
Door Thickness Min: 1-5/8"
Finish: Bright Chrome
Finish Code: 625
Finish Color: Bright Chrome
Finish Description: Bright Chrome
Function: F51A-Keyed Entry
Grade: Grade 2
Hand: Not Handed
Handing: Reversible
Hazardous Material: NO
Keys: Cut
Keyway: C
Knob/ Lever Design: Orbit
Knob/ Lever Style: Knob
Latch Backset Dim: Adjustable 2-3/8 In. and 2-3/4 In.
Latch Bolt Face Type: Triple Option-Round, Square, Drive-in
Latch Bolt Faceplate Size: 2-1/4" x 1"
Latch Bolt Throw: 1/2"
Latch Bolt Type: Deadlatch
Latch Faceplate Dimension: 1" x 2-1/4"
Latch Number: 16-086
Latch Type: Dead Latch (Guarded)
Lever Knob Design: ORB - Orbit
Lock Category: Handlesets
Lock Face Size: 2-1/4 In. x 1 In.
Manufacturer Warranty: Limited Lifetime Mechanical and Finish Warranty
Material: Zinc
No Of Inners: 1
No Of Pins: 5 Pin Cylinder
Num Of Keys: 2
Num Pins: 5-Pin
Order_ Qty: 1
PO date: 2024-10-09
Restricted Keyway: No
Rose Escutcheon Design: Plymouth Rose
Screws: Combination
Series: F Series
Strike: Round and Square Corner Full Lip Strikes
Strike Dimension: 1-5/8" x 2-1/4"
Strike Height: 2-1/4 In.
Strike Number: 10-027
Strike Size: 2-1/4" x 1-5/8"
Strike Type: Full Lip Rad
Strike Width: 1-5/8 In.
Subcategory: Residential Door Knobs
Subtype: Door Knobs
Supplier: Schlage
Type: LOCK SETS
Upc: 043156465613
