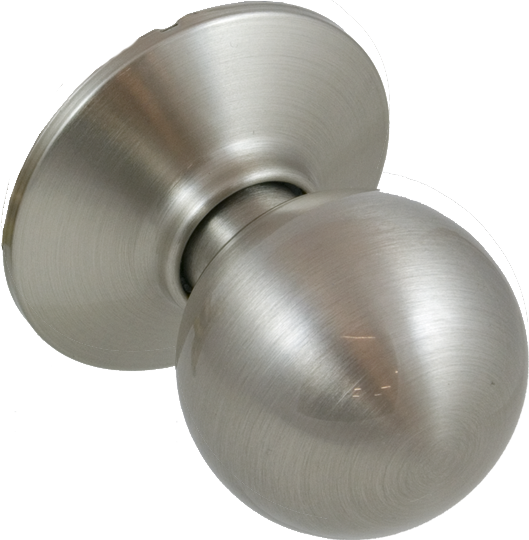

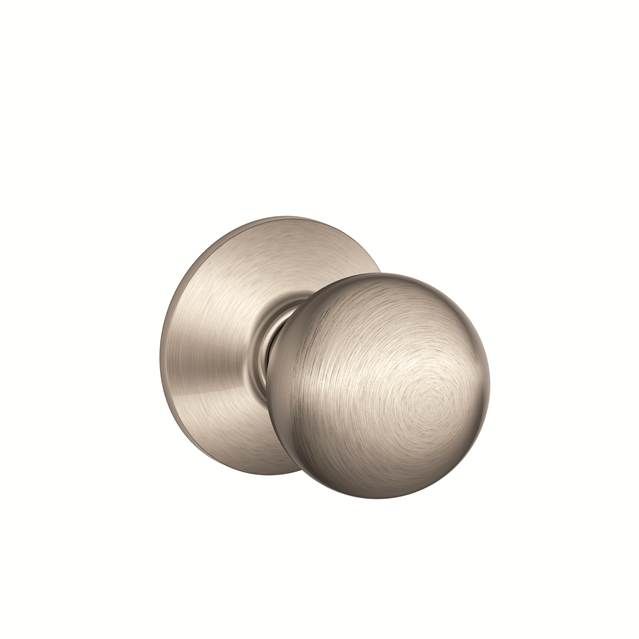

Schlage Residential F59ORB619 Orbit Knob Interior Active Trim with 12326 Latch and 10269 Strikes in Satin Nickel Finish offers a blend of style and security for your home. Designed for ease of use, this single-cylinder trim requires the F58 for a complete lockset, ensuring you have the necessary components for a fully functional door lock. The reversible handing feature allows for versatile installation on various door configurations. Constructed from durable zinc, the Orbit knob showcases a modern yet classic design with a 2-1/8" knob size and a 2-3/4" rose. It accommodates door thicknesses ranging from 1-5/8" to 1-3/4", making it suitable for a variety of applications. Included in the package are all mounting hardware for a straightforward installation process, enhancing user convenience. With a limited lifetime mechanical and finish warranty, this product reflects Schlage's commitment to quality and longevity. The attractive satin nickel finish not only complements many décor styles but also provides added resistance against wear. Whether for residential or light commercial use, the F59ORB619 is a reliable choice for those seeking security without compromising on aesthetics.
For more than 90 years, Schlage has been creating the strongest and most technologically advanced security products for homes, multi-family, commercial, and institutional buildings. We have been meticulous designers, painstaking engineers, and proud craftsmen. From durable mechanical locks to comprehensive electronic access control solutions and biometrics, Schlage provides protection at critical moments–when property and personal security are at stake. In homes, public buildings, and the workplace, at the end of the day, Schlage stands for one thing: strong.
Attributes
Alternate Codes: 043156165643, 143987, F359ORB619, F59ORB619
Backset: Triple Option Adjustable Spring Latch and Deadbolt, 2-3/8" or 2-3/4" Backset
Base Material: Brass or Bronze
Category: Mechanical Residential Locksets
Commercial Residential: Residential
Country of origin: Mexico
Crossbore Size: 2-1/8" Bore
Cylinder Included: Yes
Cylinder Type: 5 Pin Cylinder
Design: Orbit Knob
Dimension: 2-1/8" Knob and 2-7/8" Projection with 2-3/4" Rose
Door Bore Size: 2-1/8"
Door Range: 1-5/8" to 1-3/4"
Door Thickness: 1-5/8 In. - 1-3/4 In.
Door Thickness Max: 1-3/4"
Door Thickness Min: 1-5/8"
Finish: Satin Nickel
Finish Code: 619
Finish Color: Satin Nickel
Finish Description: Satin Nickel Plated Clear Coated
Function: F59-Handleset/Entrance Lock Interior
Grade: Grade 1
Handing: Reversible
Hazardous Material: NO
Installation: Residential
Keyway: Schlage C
Knob/ Lever Design: Orbit
Knob/ Lever Style: Knob
Latch Bolt Face Type: Triple Option-Round, Square, Drive-in
Latch Bolt Faceplate Size: 1"x 2-1/4"
Latch Bolt Throw: 1/2"
Latch Bolt Type: Deadbolt
Latch Faceplate Dimension: 1" x 2-1/4"
Lever Knob Design: ORB - Orbit
Leverknob Design: ORB - Orbit Knob
Lock Category: Handlesets
Manufacturer Warranty: Limited Lifetime Mechanical and Finish Warranty
Material: Zinc
No Of Inners: 1
Order_ Qty: 1
Origin: Mexico
PO date: 2024-11-07
Pack Qty: 1
Restricted Keyway: No
Rose Escutcheon Design: Plymouth Rose
Series: F Series
Strike: Round Corner Full Lip Strike and 1-1/8" x 2-3/4" Deadbolt Strike
Strike Dimension: 2-1/4" x 1-5/8" x 1-1/8"" Lip and 1-1/8" x 2-3/4"
Strike Size: 2-1/4" x 1-5/8"
Subcategory: Residential Handlesets
Subtype: Handleset Trims
Supplier: Schlage
Type: LOCK SETS
Unit of Measure: Each
Upc: 043156165643
Upc Code: 43156230730
