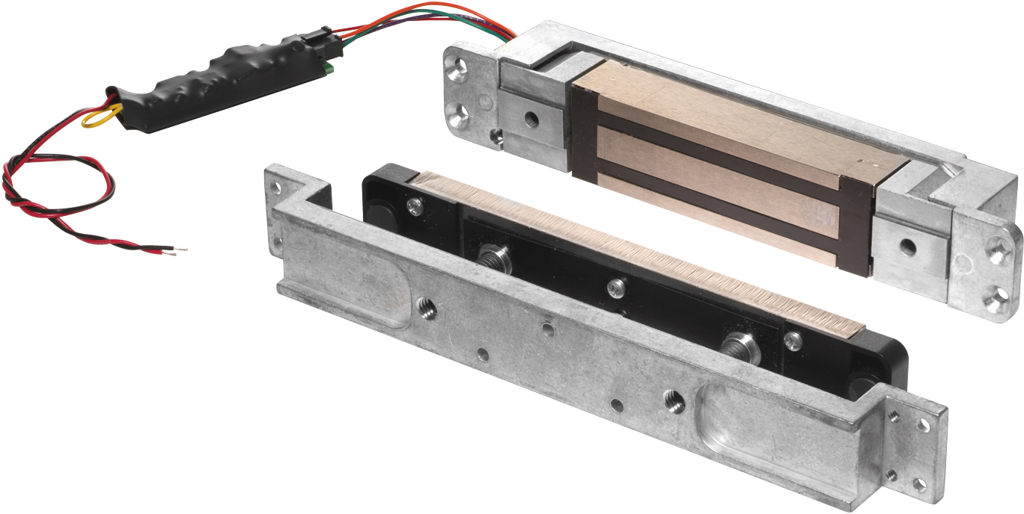

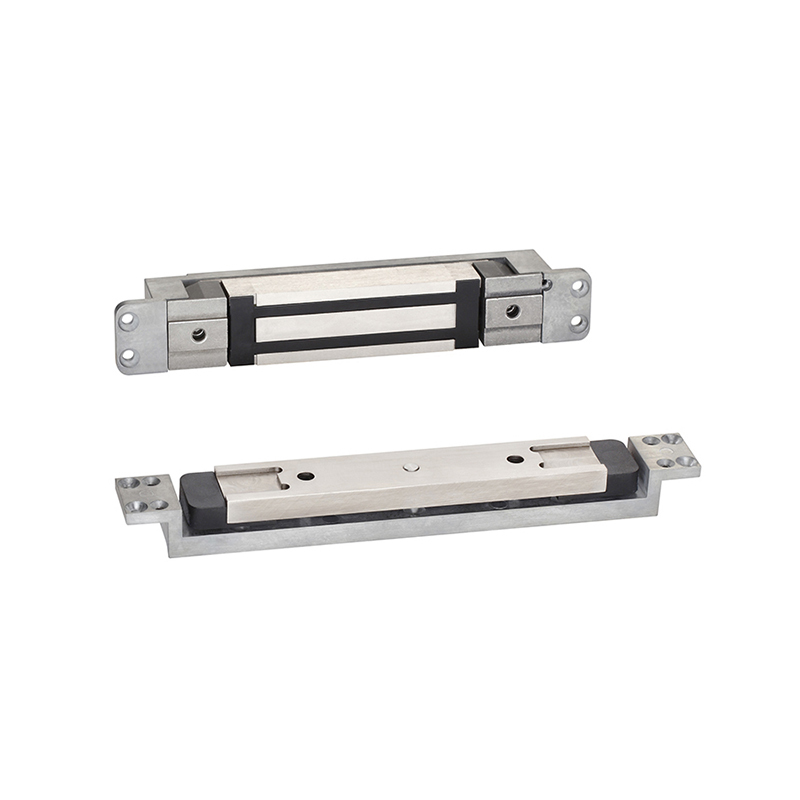

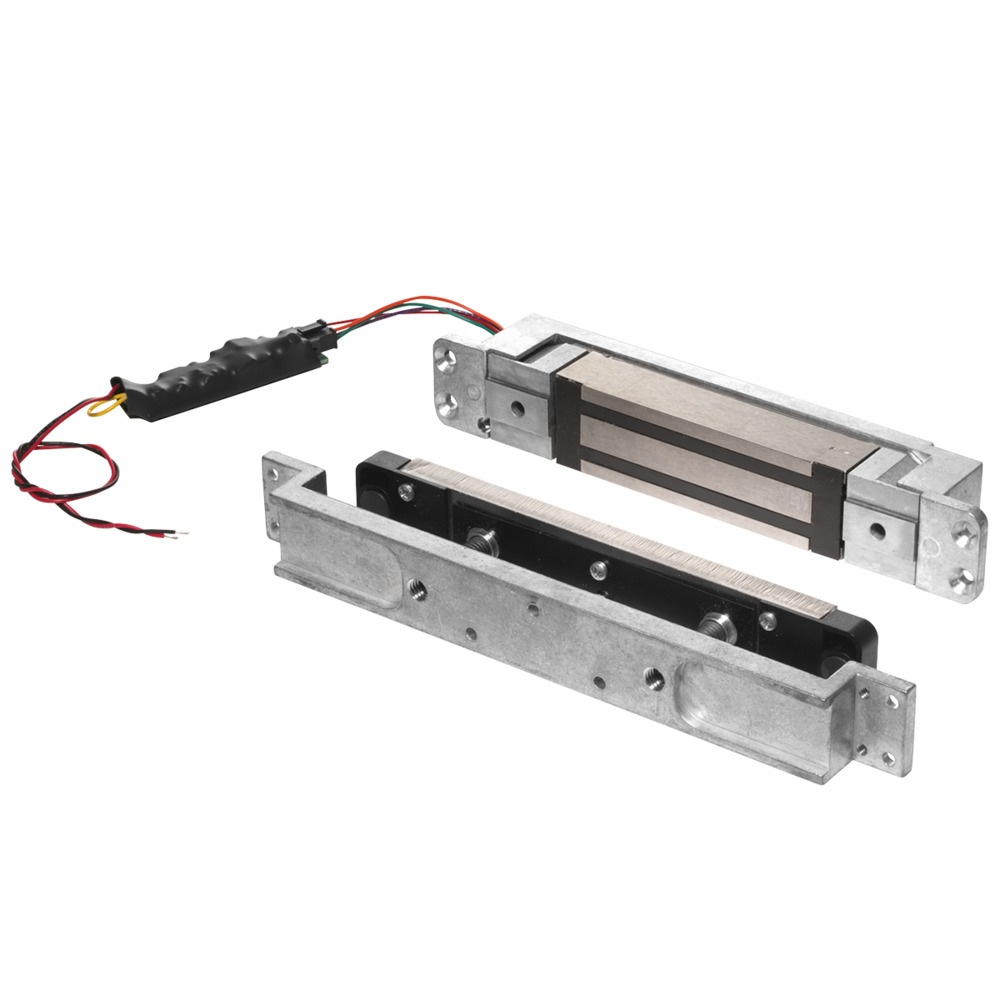

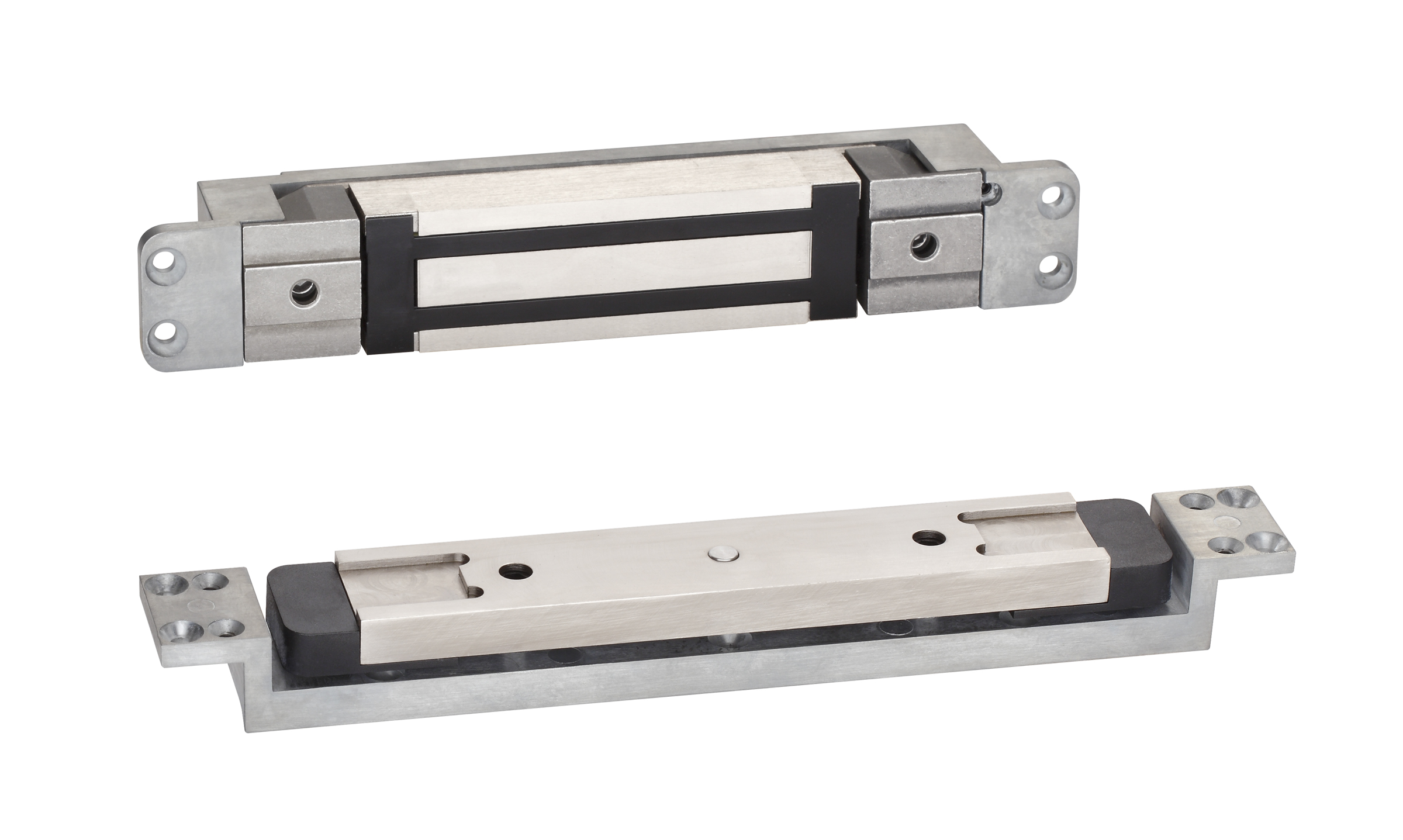

Schlage Electronics GF3000 Standard Unit Shear Lock Mortise Series offers maximum security with a remarkable 3,000 lb. rated hold force, ensuring that your entrances are protected against unauthorized access. Designed for both outswinging (GF3000SM) and inswinging (GF3000TJ) doors, this surface-mounted shear lock can effectively accommodate a 3/16" gap without any in-rush current, making it a versatile solution for various door types. This lock is engineered to integrate seamlessly with most access control systems, allowing for easy connectivity and enhanced security management. The automatic voltage selection (AVS) feature supports both 12 and 24 VDC, providing flexibility for installation in different environments. Constructed from durable anodized aluminum, the GF3000 is built to withstand the rigors of commercial use. Its compact dimensions of 1-1/4" x 9-13/16" x 1-1/2" for the magnet and 1-3/8" x 8-3/8" x 1/2" for the plate make it an efficient choice for space-conscious applications. With a limited lifetime magnetic warranty and a 1-year electromechanical warranty, you can trust in the reliability of this product. Enhance your security infrastructure with the Schlage Electronics GF3000-where strength meets advanced technology.
For more than 90 years, Schlage has been creating the strongest and most technologically advanced security products for homes, multi-family, commercial, and institutional buildings. We have been meticulous designers, painstaking engineers, and proud craftsmen. From durable mechanical locks to comprehensive electronic access control solutions and biometrics, Schlage provides protection at critical moments–when property and personal security are at stake. In homes, public buildings, and the workplace, at the end of the day, Schlage stands for one thing: strong.
Attributes
Manufacturer surcharge: $ 0.0
Alternate Codes: GF3000, SCHGF3000
Amp Draw: 900/450mA @ 12/24 VDC Current
Armature Dimensions: 6-1/8" x 1-3/8" x 7/16"
Base Material: Aluminum
Base Series: GF3000 Series
Category: Commercial Electronic Devices
Certifications: BHMA, CSFM, UL 10C, UL Listed
Commercial Residential: Commercial
Current Draw: .45A @ 24 VDC, .90A @ 12 VDC
Dimension: 1-1/4" x 9-13/16" x 1-1/2" Magnet and 1-3/8" x 8-3/8" x 1/2" Plate
Door Application: Maglocks
Finish Color: Anodized
Finish Description: Satin Aluminum
Finish Family: Matte Silver
Fire Rated: No
Function: Mortised Shear Lock
Hazardous Material: NO
Holding Force: 3000 Lbs.
Installation: Commercial
Limited Warranty: Limited Warranty
Lock Body Dimensions: 9-1/2" x 1-1/2" x 1-1/2"
Maglock Type: Shear
Magnet Size: 1-1/4" x 9-13/16" x 1-1/2" Magnet and 1-3/8" x 8-3/8" x 1/2" Plate
Manufacturer: Schlage Electronic Security
Manufacturer Warranty: Limited Lifetime Magnetic and 1 Year Electro Mechanical Warranty
Material: Anodized Aluminum
Mounting: Mortise
No Of Inners: 1
Operating Voltage: 12VDC/24VDC
Order_ Qty: 1
PO date: 2024-10-31
Pack Qty: 1
Power Supply: Wired
Product Height: 2"
Product Length: 9.81"
Product Type Used With: Push Button, Reader, or Sensor
Product Width: 3.13"
Series: GF3000
Ship Weight: 9 lbs.
Subcategory: Maglocks
Subtype: Maglock
Type: Electric Strikes, Bolts, Magnets
Ul Listing: UL 10C/cUL CSFM ANSI/BHMA 156.23
Ul Listing Type: UL294
Unit of Measure: Each
Use With: Maximum Security
Voltage: 12 - 24
Voltage Type: VAC - Alternating, VDC - Direct
Weight: 7lbs
