Schlage Electronics GF3000SM DSM MBS Surface Mounted Shear Lock offers a robust solution for securing commercial spaces with its impressive 3000 lbs. holding force. Designed with a patented technology, this shear lock stands out in the market by incorporating a microprocessor-based control module that enhances its electronic capabilities. The advanced circuitry allows for automatic sensing and adjustment of input voltage, enabling operation with both 12 and 24 VDC power sources, ensuring versatility in installation. The GF3000 series is crafted from durable aluminum and features a sleek matte silver finish (628/US28), making it an aesthetically appealing choice for any commercial application. With dimensions of 9.81" in length, 3.13" in width, and a height of 2", it is designed for surface mounting, making installation straightforward. The included door status monitor and magnetic bond sensor provide added security and reliability. This shear lock is UL listed (10C/cUL CSFM ANSI/BHMA 156.23), ensuring compliance with safety standards. Weighing only 9 lbs., it is lightweight yet sturdy, making it an ideal choice for high-traffic areas that require dependable access control. Elevate your security system with the Schlage Electronics GF3000SM DSM MBS Shear Lock, a perfect blend of strength, technology, and design.

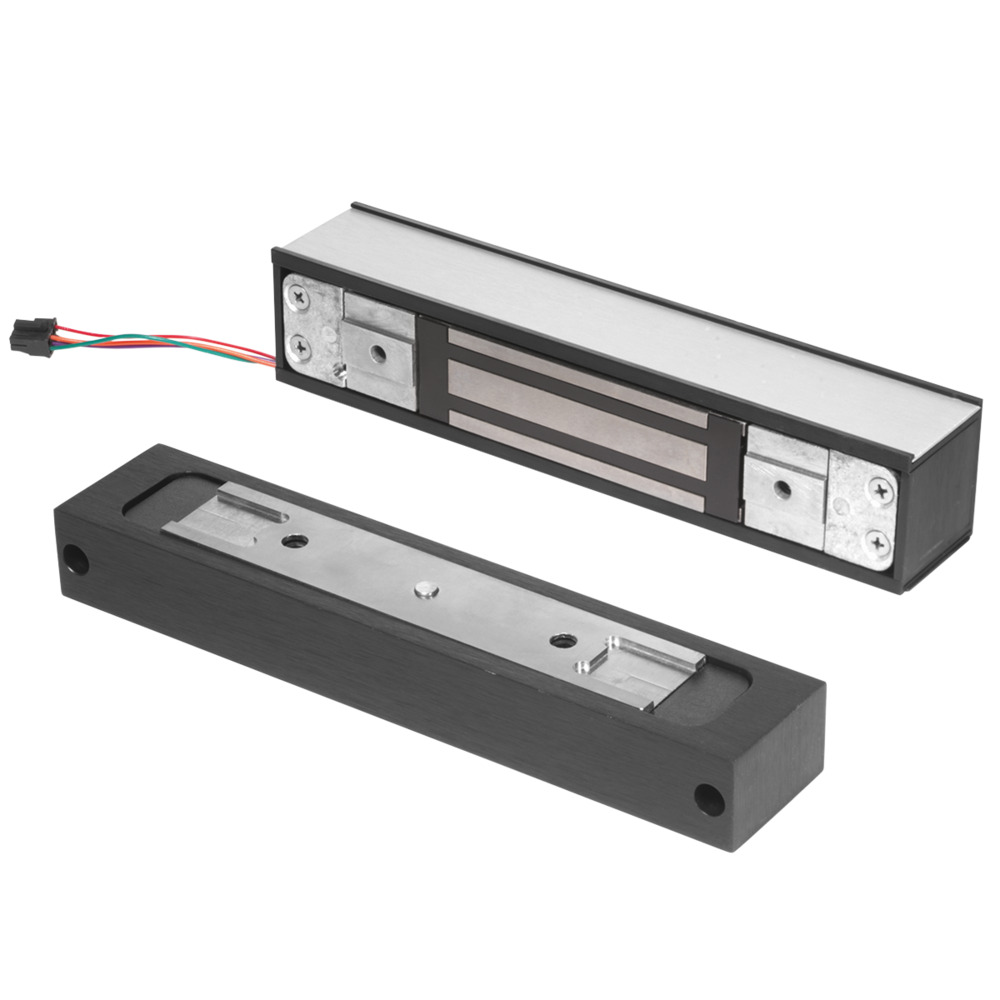

Surface Mounted Shear Lock
Surface Mounted Shear Lock, 3000 lbs. HoldIng Force, Door Status Monitor, Magnetic Bond Sensor
GF3000 Series shear locks feature a patented design, offering advances over any shear lock in the market. A microprocessor-based control module provides advanced electronic features. This circuitry automatically senses and adjusts input voltage, allowing for operation from 12 to 24 volt DC power sources.
The broad portfolio of Allegion’s electromagnetic locks offers a solution for most every application.
Amp Draw: 900/450mA @ 12/24 VDC Current
Armature Size: 9-13/16" x 1-1/4" x 2"
Base Material: Aluminum
Base Series: GF3000 Series
Commercial Residential: Commercial
Finish: 628/US28
Finish Family: Matte Silver
Holding Force: 3000 lbs.
Installation: Commercial
Limited Warranty: Limited Warranty
Magnet Size: 9-13/16" x 1-7/8" x 2"
Operating Voltage: 12/24 VDC
Pack Qty: 1
Pbs Options: 673491
Product Height: 2"
Product Length: 9.81"
Product Width: 3.13"
Series: Schlage Electronics Electromagnetic Locks
Ship Weight: 9 lbs.
Subtype: Maglocks
Type: Electric Strikes, Bolts, Magnets
Ul Listing: UL 10C/cUL CSFM ANSI/BHMA 156.23
Unit of Measure: Each
Upc: 43156570928
