Schlage Residential - J Series Dover Lever Entry Lock (Model J54DOV619) combines elegance with exceptional security for any home. Featuring a sleek satin nickel finish, this lock not only enhances the aesthetic of your doors but also ensures durability with a limited lifetime mechanical warranty and a 5-year finish warranty. Designed with an ANSI/BHMA A156.36 Grade 3 rating, it is a reliable choice for residential applications. This entry lock operates via a Schlage C keyway and includes a convenient 16255 latch and a 10101 strike. The reversible handing allows for easy installation on doors ranging from 1-3/8" to 1-3/4" thick, accommodating adjustable backsets of 2-3/8" or 2-3/4". With a 2-1/8" crossbore size and a round rose design, the Dover lever’s dimensions are 4-11/16" in length, with a 2-5/8" projection. Schlage's focus on user-friendly installation is evident, as the lockset includes all mounting hardware and can often be installed using just one tool. Its dependable security features, combined with the ability to be keyed to other Schlage locks for added convenience, make the Schlage J Series Dover Lever an ideal choice for homeowners seeking both style and safety.
Entry Lock Dover Lever with C Keyway 16255 Latch and 10101 Strike Satin Nickel Finish
Perfect for any home, with a 25-year mechanical warranty, Dexter products are built to last. Dexter by Schlage J Series Products are backed by a lifetime mechanical warranty and 5 year finish and made by a name you can trust. These durable grade 3 products are easy to install and fit standard door preps. Focused on elegant, sleek designs and the ability to be keyed to other Schlage locks for one key-convenience, customers know they are getting the best in affordable lock security. Dexter also focuses on the ease of installation, with products that often have a one-tool installation to make the process as seamless as possible. Though the installation is easy, Dexter products are dependable in their security.
Backset: Adjustable 2-3/8" or 2-3/4" Backset
Category: Mechanical Residential Locksets
Crossbore Size: 2-1/8" Bore
Design: Dover
Dimension: 4-11/16" Lever Length and 2-5/8" Projection with 2-5/8" Diameter Rose
Door Range: 1-3/8" to 1-3/4"
Door Thickness: 1-3/8" to 1-3/4"
Finish: Satin Nickel
Finish Code: 619
Function: Entry
Handing: Reversible
Hazardous Material: NO
Keyway: Schlage C Keyway
Latch Faceplate Dimension: Square and Round Corner 1" x 2-1/4" Faceplate or 1" Collar

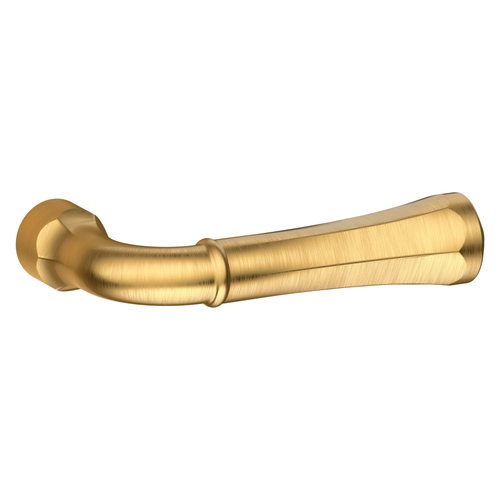

Lever Knob Design: Dover Lever
Manufacturer Warranty: Limited Lifetime Mechanical and 5 Year Finish Warranty
Material: Zinc
No Of Inners: 1
No Of Pins: 5 Pin Cylinder
Order_ Qty: 1
PO date: 2024-09-03
Rose Escutcheon Design: Round Rose
Series: J Series
Strike: Radius Full Lip Strike
Strike Dimension: 2-1/4" x 1-5/8" x 1-1/8" Lip
Subcategory: Residential Door Levers
