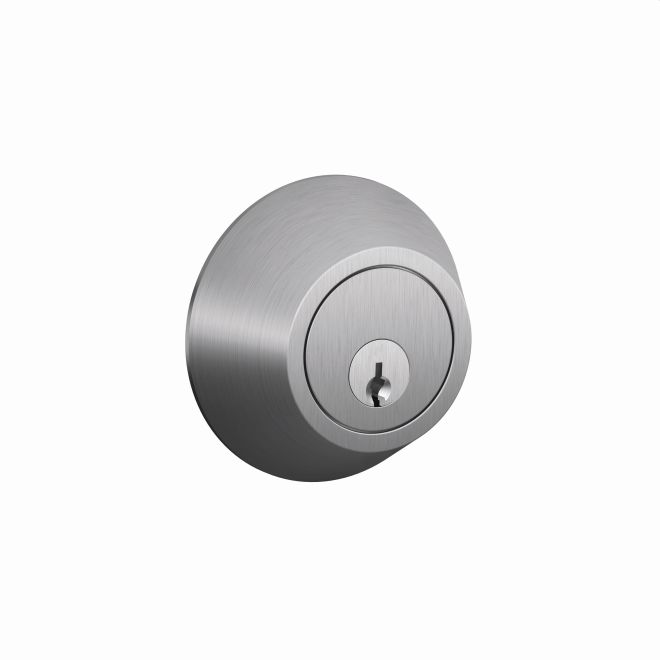

Schlage Residential - J Series JD60F626 Fire Rated Single Cylinder Deadbolt with C Keyway offers unmatched security and reliability for your home. Designed with a satin chrome finish, this robust deadbolt not only enhances your door's aesthetic appeal but also provides exceptional durability. It features an adjustable backset of 2-3/8" or 2-3/4", making it versatile for various door installations ranging from 1-3/8" to 1-3/4" thick. This single cylinder deadbolt boasts a 2-1/8" crossbore size and a 2-5/8" diameter with a 1" projection, ensuring a secure fit. Its five-pin Schlage C keyway enhances security, while the reversible handing allows for easy installation on either side of the door. The deadbolt is UL Fire Rated, providing peace of mind in case of emergencies. Included with the deadbolt is a round corner 1" x 2-1/4" faceplate or 1" collar and a radius deadbolt strike measuring 1-1/8" x 2-3/4". Schlage backs this product with a limited lifetime mechanical warranty and a 5-year finish warranty, ensuring long-lasting performance. Upgrade your home's security with the Schlage JD60F626, a reliable choice for discerning homeowners and building professionals alike.
Fire Rated Single Cylinder Deadbolt with C Keyway 16063 Latch and 10267 Strike Satin Chrome Finish
Backset: Adjustable 2-3/8" or 2-3/4" Backset
Category: Mechanical Residential Locksets
Crossbore Size: 2-1/8" Bore
Dimension: 2-5/8" Diameter and 1" Projection
Door Range: 1-3/8" to 1-3/4"
Finish: Satin Chrome
Finish Code: 626
Fire Rated: Yes
Function: Single Cylinder
Handing: Reversible
Hazardous Material: NO
Keyway: Schlage C Keyway
Latch Faceplate Dimension: Round Corner 1" x 2-1/4" Faceplate or 1" Collar
Manufacturer Warranty: Limited Lifetime Mechanical and 5 Year Finish Warranty
Material: Zinc
No Of Inners: 1
No Of Pins: 5 Pin Cylinder
Order_ Qty: 1
Series: J Series
Strike: Radius Deadbolt Strike
Strike Dimension: 1-1/8" x 2-3/4"
Subcategory: Residential Deadbolts
Ul Listing Type: UL Fire Rated
