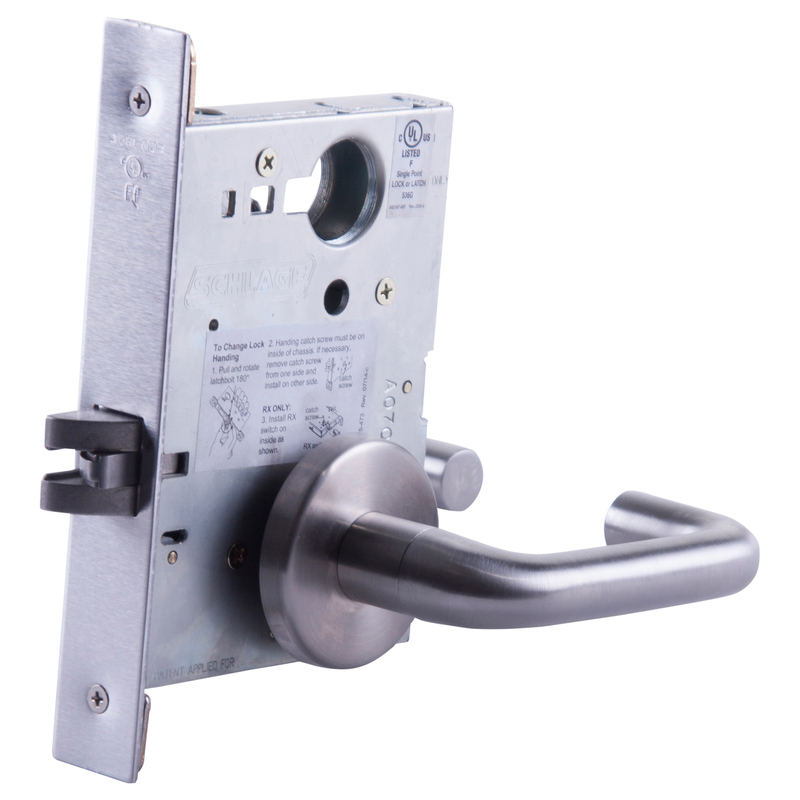

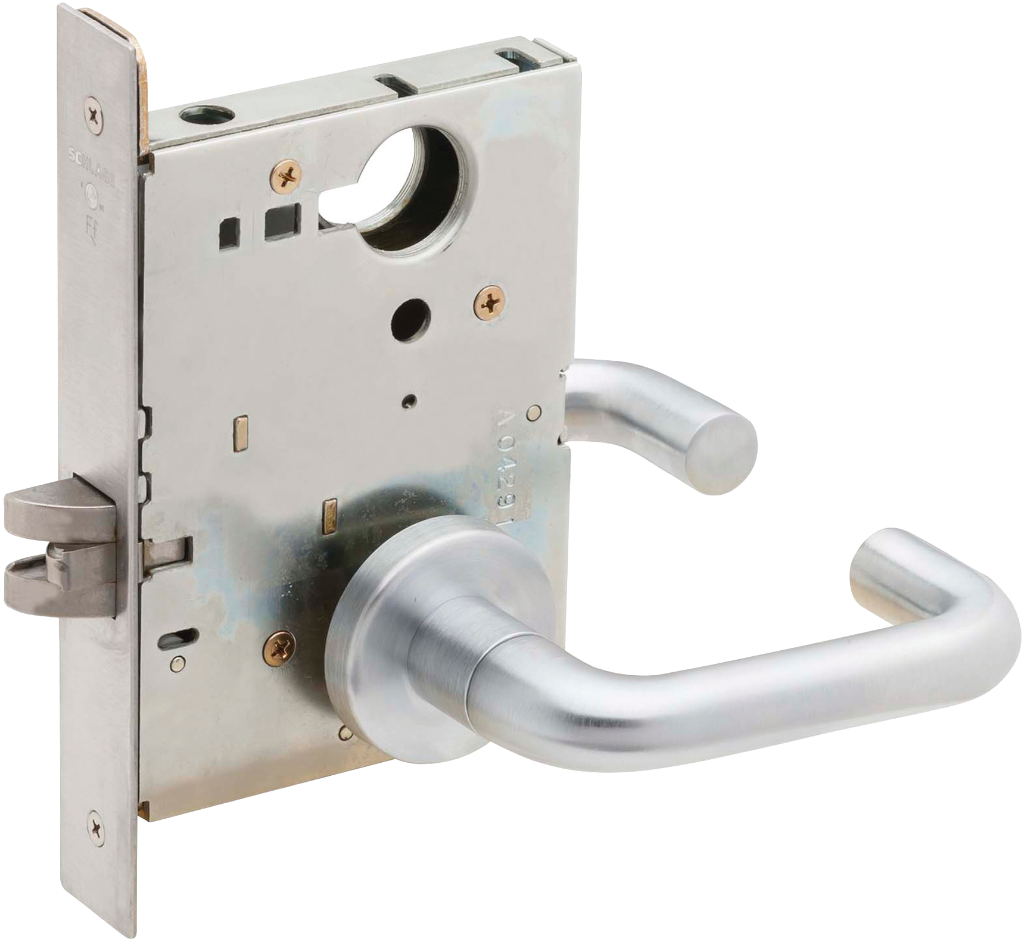

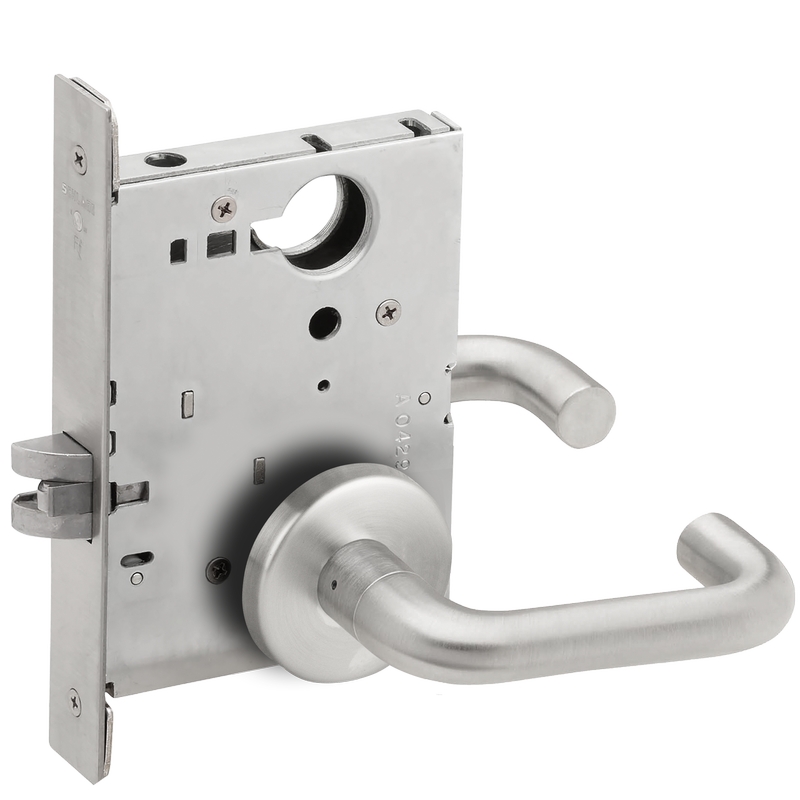

Schlage Commercial L901003B626 Passage Latch Mortise Lock with 03 Lever and B Rose Satin Chrome Finish combines durability with sleek design for commercial applications. This mechanical lockset features a reversible handing, making it adaptable for various door configurations. With a robust 2-3/4" backset and a door range of 1-3/4", it seamlessly integrates into most standard doors. The satin chrome finish not only enhances its aesthetic appeal but also provides corrosion resistance, ensuring longevity in high-traffic areas. The 03 lever design paired with the B Rose escutcheon offers a contemporary look that complements any commercial setting. Measuring 2-9/16" in diameter with a 4-3/4" lever and a 2-13/16" projection, this lockset is both functional and stylish. Engineered with a 1-1/4" x 8" latch faceplate and ANSI strike dimensions of 4-7/8" with a 1-1/4" lip, it guarantees reliable performance. The UL listing for 3-hour fire doors adds an extra layer of safety, making it suitable for various environments. Supported by a 3-year limited mechanical warranty and a 1-year limited electromechanical warranty, the Schlage L901003B626 ensures peace of mind for building professionals and homeowners alike.
Attributes
Alternate Codes: L901003B626
Ansi: A156.13-2017 Series 1000, Grade 1
Ansi Function: F01 - Passage
Baa Qualified: Yes
Backset: 2-3/4" Backset
Bolt Projection: 3/4" Latch
Bolt Protection: 3/4"
Category: Mechanical Commercial Locksets
Commercial Residential: Commercial
Country of Origin: Mexico
Country of origin: Mexico
Cylinder Included: No
Design: 03 Lever and B Rose
Dimension: 2-9/16" Rose with 4-3/4" Lever and 2-13/16" Projection
Door Application: Mortise Electric, Mortise Lock Body, Mortise Lock Sets
Door Bore Size: 2-1/8"
Door Range: 1-3/4"
Door Thickness: 1-3/4"
Door Thickness Min: 1-3/4"
Dust Box: Plastic
Finish: Satin Chrome
Finish Code: 626
Finish Color: Satin Chrome
Finish Description: Satin Chrome
Finish Family: Matte Silver
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Function: 9010-Passage Latch
Grade: Grade 1
Hand: Field Reversible
Handing: Reversible
Hazardous Material: NO
Installation: Commercial
Knob/ Lever Design: 03
Knob/ Lever Style: Lever
Latch Bolt Face Type: Square Corner
Latch Bolt Faceplate Size: 8" x 1-1/4"
Latch Bolt Throw: 3/4"
Latch Bolt Type: Springlatch
Latch Bore Diameter: 2-3/4"
Latch Faceplate Dimension: 1-1/4" x 8"
Lever Design: 3
Lever Knob Design: 03 - Lever
Leverknob Design: 03 Lever
Leverknob Design Family: Straight Return Lever
Limited Warranty: 3 Years
Lock Category: Mortise Lock
Lock Face Size: 8" x 1-1/4"
Manufacturer Warranty: 3 Year Limited Mechanical Warranty and 1-Year Limited Electromechanical Warranty
Material: Zinc Base
No Of Inners: 1
Order_ Qty: 1
Origin: Mexico
Pack Height: 5.63"
Pack Height 2: 5.63"
Pack Length: 10.38"
Pack Length 2: 10.38"
Pack Qty: 1
Pack Volume: 313.68 in³
Pack Volume 2: 313.68 in³
Pack Width: 5.38"
Pack Width 2: 5.38"
Projection: 2.813"
Rose Escutcheon Design: B - Rose
Rose/ Escutcheon: B Rose
Rose/ Escutcheon Size: 2-9/16"
Rose/ Escutcheon Style: Rose
Roseescutcheon Design: B Rose
Roseescutcheon Dimensions: 2-9/16"
Screws: Combination
Series: L Series
Ship Weight: 6.3 lbs.
Std Latch Backset Dim: 2-3/4"
Std Latch Type: Spring Latch (Unguarded)
Std Strike Height: 4-7/8"
Std Strike Number: 10-072 1316 626
Std Strike Type: ANSI Strike
Std Strike Width: 1-3/16"
Strike: ANSI Strike
Strike Dimension: 4-7/8" with 1-1/4" Lip
Strike Height: 4-7/8"
Strike Number: 10-072
Strike Size: 4-7/8" x 1-1/4"
Strike Type: ASA
Strike Width: 1-1/4"
Subcategory: Mortise Locksets
Subtype: Mortise Lock
Supplier: Schlage
Type: LOCK SETS
Ul Listing: UL Listed
Ul Listing Type: UL Listed for 3 Hour Fire Door
Unit of Measure: Each
Unit of Measure 2: CASE
Unit of Measure 2 Qty: 6
