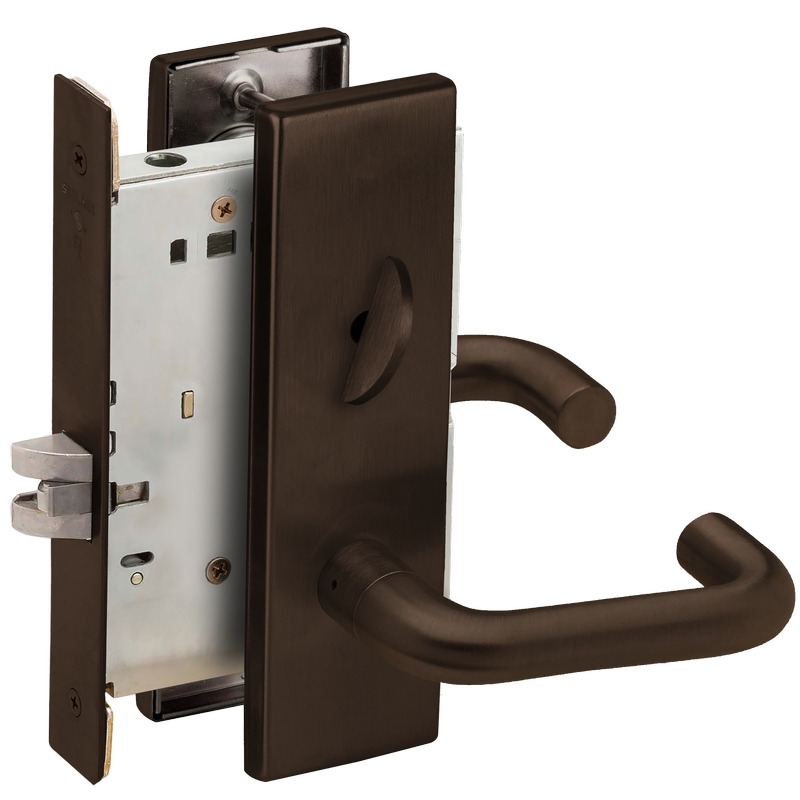

Schlage L9040 03N 613 Lock Mortise Lock

Your Price: $858.97

Retail Price:$1,404.0000

Your Savings:$545.03(39%)

Privacy Mortise Lock, 03N Design, Oil Rubbed Bronze

Part Number : SCH_L904003N613

Availability: 7 In Stock

Quantity

Net 30 terms available

Description

Schlage L9040 03N 613 Lock Mortise Lock

Schlage L-Series Extra Heavy Duty Mortise Locks are built to withstand the rigors of daily use without fail. Our L9000 Series locks are ideal for use in schools, hospitals and factories, where the finest hardware must also deliver consistent, dependable operation and stand up to constant use and abuse. We pay attention to these details so you can focus on creating a functional and aesthetically pleasing environment for your clients. In fact, every one of our L-Series locks meets ANSI Grade 1 standards for safety. A multitude of functions, finishes and trim designs are available to meet virtually every security and aesthetic requirement.

Privacy - Latchbolt Retracted by Either Side, Locked or Unlocked by Inside Thumbturn or Emergency Key Outside
ANSI/BHMI Certified A156.13-2012
Commercial Grade 1
Lock Body Mortises Inside the Edge of the Door
UL Listed for 3 Hour Fide Door
Tested and certified to ANSI/BHMA grade 1 operational and security standards
UL listed for 3-hour fire door; spring-loaded fusible link inside lock case provides fail secure mode in case of fire
Deadbolt features include anti-saw pin in bolt to prevent cut-through
Security blocking hub prevents lock access by removing levers
Vandlgard option allows the outside lever to rotate freely down to prevent damage from excessive force while in a locked state
Lock monitoring options include request to exit (RX), latchbolt (LX), door position (DPS), and deadbolt (DM) (availability varies by function)
Patented Everest 29 S123 keyway is provided standard which prohibits unauthorized key duplication
Restricted geographically exclusive Primus upgraded security options offer advanced key control and exceptional physical security
Two piece anti-friction tongue in latch bolt reduces wear
Breakaway spindle keeps door secured in the event of vandalism
Field reversible latch bolt allows handing change without opening case
Every Schlage lock undergoes intensive testing to determine its ANSI grade level including: cycle, resistance, door impact, warped door and bolt strength tests

Attributes

Alternate Codes: L904003N613

Ansi Function: F22 - Privacy

Baa Qualified: Yes

Backset: 2-3/4"

Bolt Protection: 3/4"

Category: Lock Sets, Mortise Locks, Mortise Lock Sets

Country of Origin: Mexico

Design: 03 Lever and N Escutcheon

Dimension: 2-1/2" x 7-7/8" Escutcheon with 4-3/4" Lever and 2-13/16" Projection

Door Application: Mortise Electric, Mortise Lock Body, Mortise Lock Sets

Door Thickness: 1-3/4"

Dust Box: Plastic

Finish: Oil Rubbed Bronze

Finish Code: 613

Finish Color: Dark Bronze Anodized, Dark Bronze/Clear Coat, Dark Brown, Dark Oxidized Satin Bronze, Oil Rubbed Bronze

Finish Description: Dark Oxidized Satin Bronze Oil Rubbed

Fire Rated: 3 Hours {A}

Function: 9040-Bed Bathroom Privacy Lock

Grade: Grade 1

Hand: Field Reversible

Handing: Reversible

Lever Design: 3

Lever Knob Design: 03 - Lever

Limited Warranty: 3 Years

Lock Category: Mortise Lockset - Latch Only

Lock Face Size: 8" x 1-1/4"

Rose Escutcheon Design: N - Escutcheon

Rose/ Escutcheon: N Escutcheon

Screws: Combination

Series: L Series

Strike: ANSI Strike

Strike Height: 4-7/8"

Strike Number: 10-072

Strike Type: ASA

Strike Width: 1-1/4"

Subtype: Mortise Lock

Type: Locks, Cylinders, Cores, Keyblanks
