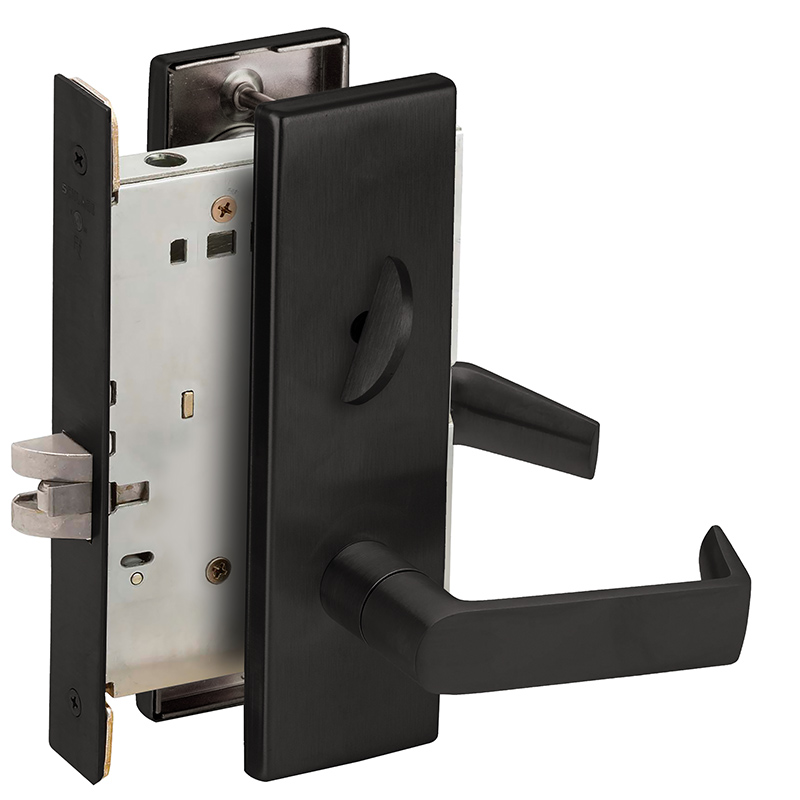

Schlage L-Series Extra Heavy Duty Mortise Locks are built to withstand the rigors of daily use without fail. Our L9000 Series locks are ideal for use in schools, hospitals and factories, where the finest hardware must also deliver consistent, dependable operation and stand up to constant use and abuse. We pay attention to these details so you can focus on creating a functional and aesthetically pleasing environment for your clients. In fact, every one of our L-Series locks meets ANSI Grade 1 standards for safety. A multitude of functions, finishes and trim designs are available to meet virtually every security and aesthetic requirement.
Attributes
Alt Part No: 253347
Ansi: A156.13-2017 Series 1000, Grade 1
Ansi Function: F22 - Privacy
Baa Qualified: Yes
Backset: 2-3/4" Backset
Bolt Projection: 3/4" Latch
Category: Lock Sets
Commercial Residential: Commercial
Country of Origin: Mexico
Country of origin: Mexico
Design: 06 Lever and N Escutcheon
Dimension: 2-1/2" x 7-7/8" Escutcheon with 4-5/8" Lever and 2-1/2" Projection
Door Thickness: 1.75
Dust Box: K510-066
Finish: Matte Black
Finish Description: Flat Black Coated
Finish Family: Black
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Function: 9040-Bed Bathroom Privacy Lock
Grade: Grade 1
Handing: Field Reversible
Installation: Commercial
Latch Bore Diameter: 2-3/4"
Length: 0.0
Lever Knob Design: 06 - Lever
Leverknob Design: 06 Lever
Leverknob Design Family: Straight Return Lever
Limited Warranty: 3 Years
Lock Face Size: 1.25
Origin: Mexico
Pack Height: 5.5"
Pack Length: 10.25"
Pack Qty: 1
Pack Volume: 295.97 in³
Pack Width: 5.25"
Projection: 2-1/2"
Rose Escutcheon Design: N - Escutcheon
Roseescutcheon Design: N Escutcheon
Roseescutcheon Dimensions: 8" x 2-9/16" x 7/16"
Sales Unit: EA
Screws: C203-736
Series: L Series
Ship Weight: 6 lbs.
Std Latch Backset Dim: 2-3/4"
Std Latch Type: Spring Latch (Unguarded)
Std Strike Height: 4-7/8"
Std Strike Number: 10-072 1316 622
Std Strike Type: ANSI Strike
Std Strike Width: 1-3/16"
Strike: ANSI Strike
Strike Height: 4.875
Strike Number: 10-072
Strike Type: ASA
Strike Width: 1.1875
Subtype: Mortise Lock
Type: Locks, Cylinders, Cores, Keyblanks
Ul Listing: UL Listed
Unit of Measure: Each
