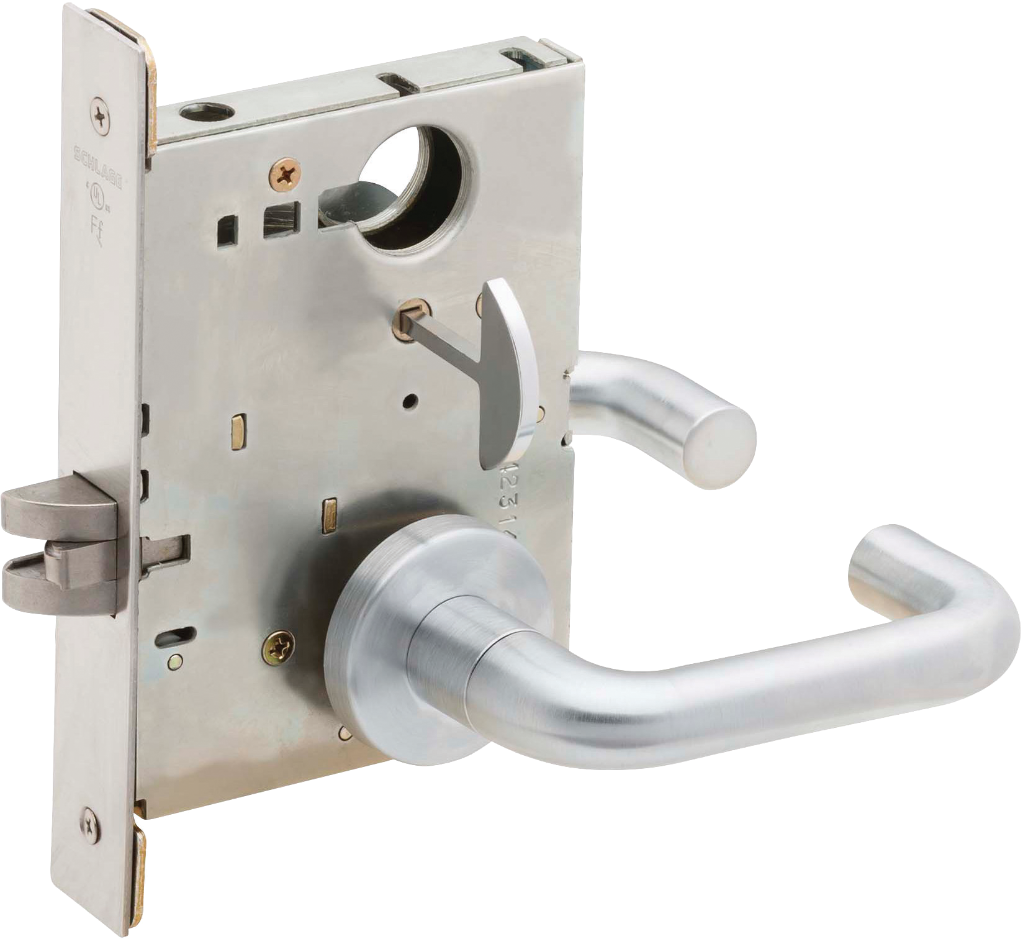

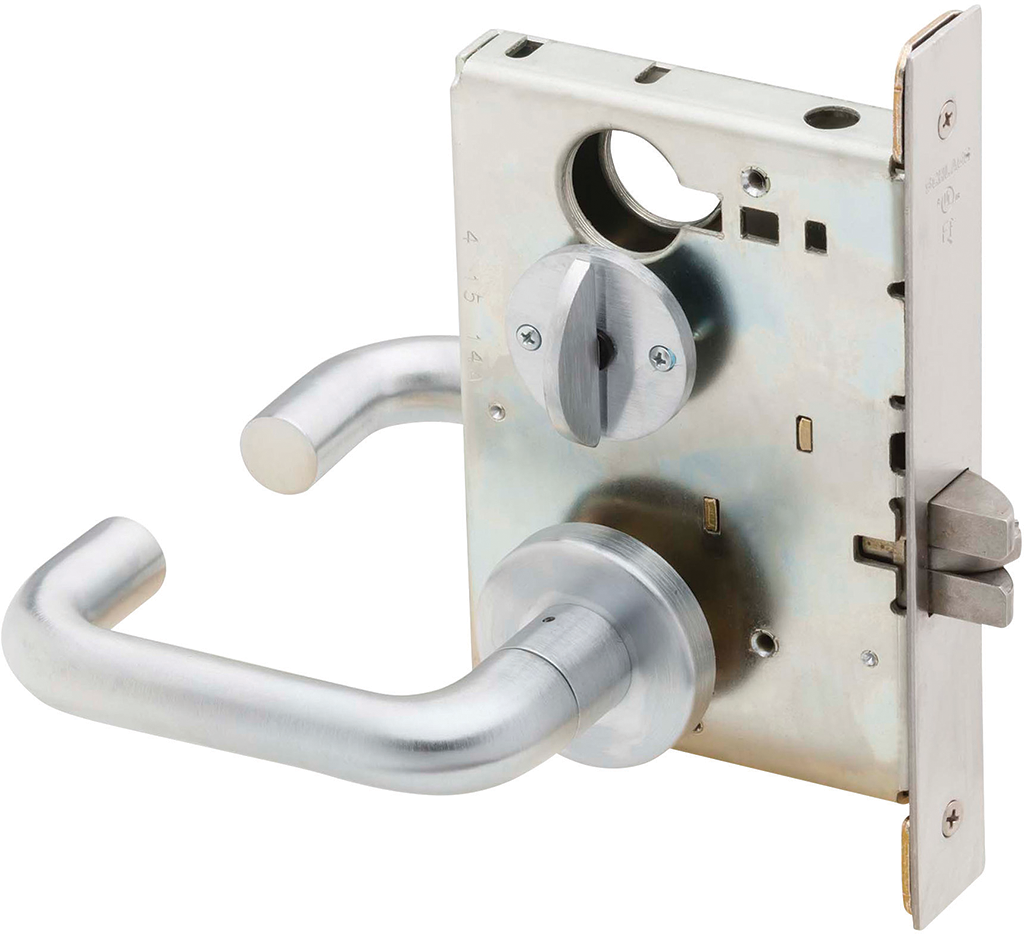

Schlage L904003B626 Lock Mortise Lock

Your Price: $868.03

Retail Price:$1,233.0000

Your Savings:$364.97(30%)

Privacy Mortise Lock, 03B Design, Satin Chrome

Part Number : SCH_L904003B626

Availability: 3 In Stock

Quantity

Net 30 terms available

Description

Schlage L904003B626 Lock Mortise Lock

Latchbolt retracted by knob/lever from either side unless outside is locked by inside thumbturn.Turning inside knob/lever or closing door unlocks outside knob/lever. To unlock from outside, remove emergency button, insert emergency thumbturn(furnished).

Handing:
L9000 Series lock bodies are field-reversible without disassembly. L400 Series locks are non-handed.
Door thickness: 1-3/4" (44 mm) standard. 1-3/8" (35 mm) to 2-1/2" (64 mm) optional. Over 2-1/2" (64 mm) door ranges vary by function. No escutcheon available for 1-3/4" (44 mm) doors standard. 2" to 2-3/8" (51 mm to 60 mm) optional. Specify door thickness if other than 1-3/4".
Backset: 2-3/4" (70 mm) only.
Armored front:
L9000 Series: 1-1/4" x 8" x 7/32" (32 mm x 203 mm x 6 mm) standard. 1-1/16" x 8" x 1-7/32" (27 mm x 203 mm x 6 mm) optional.
L400 Series: 4-7/16" x 3-5/8" x 1" (113 mm x 92 mm x 25 mm)
Case size:
L9000 Series: 4-7/16" x 6-1/16" x 1" (113 mm x 154 mm x 25 mm)
Spacing: Knob or lever to cylinder, 3-7/8" (98mm); knob or lever to thumbturn hub, 2-11/16" (68mm).
Bolts: 1" (25mm) throw stainless steel deadbolt and 3/4" (19mm) throw stainless steel latch with anti-friction tongue.
Exposed trim:
Knobs: #41 and #42 heavy-duty wrought brass, bronze or stainless steel knobs match D Series knobs.
Levers: Forged brass or bronze and cast stainless steel. Designs available to match D Series levers. 93 Lever design: Extruded brass, bronze or stainless steel. Mediterranean designs: Forged-brass lever and rose.
Escutcheons: L escutcheons are cold-forged brass or bronze and stainless steel. N escutcheons are heavy wrought reinforced brass, bronze and stainless steel.
Trim combinations: Available with knob both sides, lever both sides, or knob and lever with rose or escutcheon both sides.
Strike: L9000 Series: ANSI curved lip strike 1-1/4" x 4-7/8" (32 mm x 124 mm) x 13/16" (30 mm) lip to center with dust box standard. L400 Series: 1-1/8" x 3-5/8" (29 mm x 92 mm) with dust box.
Cylinder & keys: 6-pin Everest C123 keyway cylinder with two patented keys standard.
Privacy - Latchbolt Retracted by Either Side, Locked or Unlocked by Inside Thumbturn or Emergency Key Outside
ANSI/BHMI Certified A156.13-2012
Commercial Grade 1
Lock Body Mortises Inside the Edge of the Door
UL Listed for 3 Hour Fide Door
Tested and certified to ANSI/BHMA grade 1 operational and security standards
UL listed for 3-hour fire door; spring-loaded fusible link inside lock case provides fail secure mode in case of fire
Deadbolt features include anti-saw pin in bolt to prevent cut-through
Security blocking hub prevents lock access by removing levers
Vandlgard option allows the outside lever to rotate freely down to prevent damage from excessive force while in a locked state
Lock monitoring options include request to exit (RX), latchbolt (LX), door position (DPS), and deadbolt (DM) (availability varies by function)
Patented Everest 29 S123 keyway is provided standard which prohibits unauthorized key duplication
Restricted geographically exclusive Primus upgraded security options offer advanced key control and exceptional physical security
Two piece anti-friction tongue in latch bolt reduces wear
Breakaway spindle keeps door secured in the event of vandalism
Field reversible latch bolt allows handing change without opening case
Every Schlage lock undergoes intensive testing to determine its ANSI grade level including: cycle, resistance, door impact, warped door and bolt strength tests

Attributes

Alternate Codes: L904003B626

Ansi: A156.13-2017 Series 1000, Grade 1

Ansi Function: F22 - Privacy

Baa Qualified: Yes

Backset: 2-3/4"

Bolt Projection: 3/4" Latch

Bolt Protection: 3/4"

Category: Lock Sets, Mortise Locks, Mortise Lock Sets

Commercial Residential: Commercial

Country of Origin: Mexico

Country of origin: Mexico

Cylinder Included: No

Design: 03 Lever and B Rose

Door Application: Mortise Electric, Mortise Lock Body, Mortise Lock Sets

Door Bore Size: 2-1/8"

Door Thickness: 1-3/4"

Door Thickness Min: 1-3/4"

Dust Box: Plastic

Finish: 626/US26D

Finish Code: 626

Finish Color: Satin Chrome

Finish Description: Satin Chrome

Finish Family: Matte Silver

Fire Rated: 3 Hours {A}

Fire Rating: 3 Hours {A}

Function: 9040-Bed Bathroom Privacy Lock

Grade: Grade 1

Hand: Field Reversible

Handing: Field Reversible

Installation: Commercial

Knob/ Lever Design: 03

Knob/ Lever Style: Lever

Latch Bolt Face Type: Square Corner

Latch Bolt Faceplate Size: 8" x 1-1/4"

Latch Bolt Throw: 3/4"

Latch Bolt Type: Deadlatch

Latch Bore Diameter: 2-3/4"

Lever Design: 3

Lever Knob Design: 03 - Lever

Leverknob Design: 03 Lever

Leverknob Design Family: Straight Return Lever

Limited Warranty: 3 Years

Lock Category: Mortise Lock

Lock Face Size: 8" x 1-1/4"

Origin: Mexico

Pack Height: 5.63"

Pack Height 2: 5.63"

Pack Length: 10.38"

Pack Length 2: 10.38"

Pack Qty: 1

Pack Volume: 313.68 in³

Pack Volume 2: 313.68 in³

Pack Width: 5.38"

Pack Width 2: 5.38"

Projection: 2.813"

Rose Escutcheon Design: B - Rose

Rose/ Escutcheon: B Rose

Rose/ Escutcheon Size: 2-9/16"

Rose/ Escutcheon Style: Rose

Roseescutcheon Design: B Rose

Roseescutcheon Dimensions: 2-9/16"

Screws: Combination

Series: L Series

Ship Weight: 6.3 lbs.

Std Latch Backset Dim: 2-3/4"

Std Latch Type: Spring Latch (Unguarded)

Std Strike Height: 4-7/8"

Std Strike Number: 10-072 1316 626

Std Strike Type: ANSI Strike

Std Strike Width: 1-3/16"

Strike: 10-072 Strike

Strike Height: 4-7/8"

Strike Number: 10-072

Strike Size: 4-7/8" x 1-1/4"

Strike Type: ASA

Strike Width: 1-1/4"

Subtype: Mortise Lock

Supplier: Schlage

Type: LOCK SETS

Ul Listing: UL Listed

Unit of Measure: Each

Unit of Measure 2: CASE

Unit of Measure 2 Qty: 6
