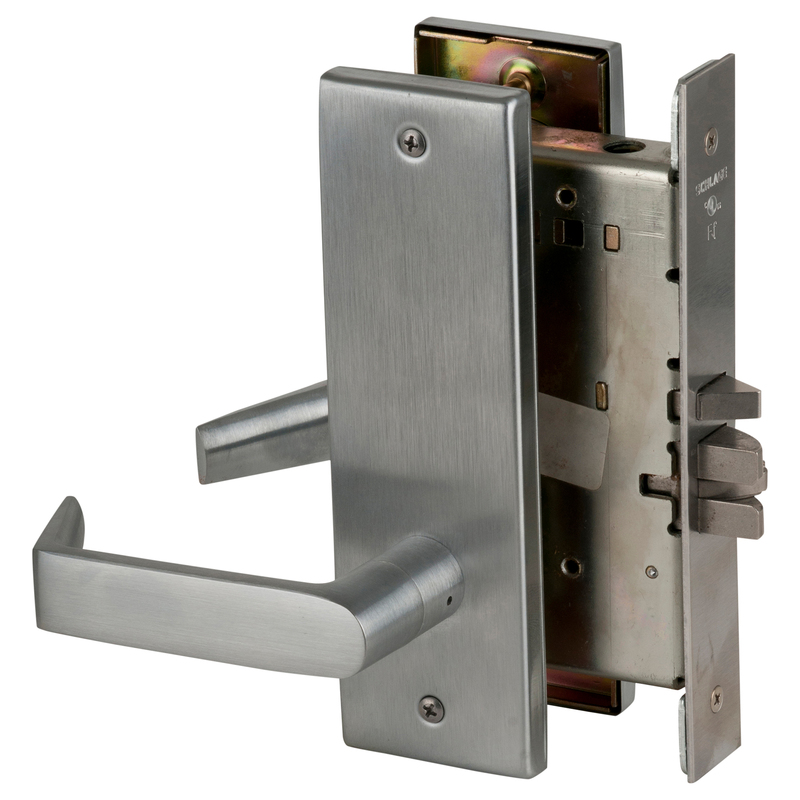

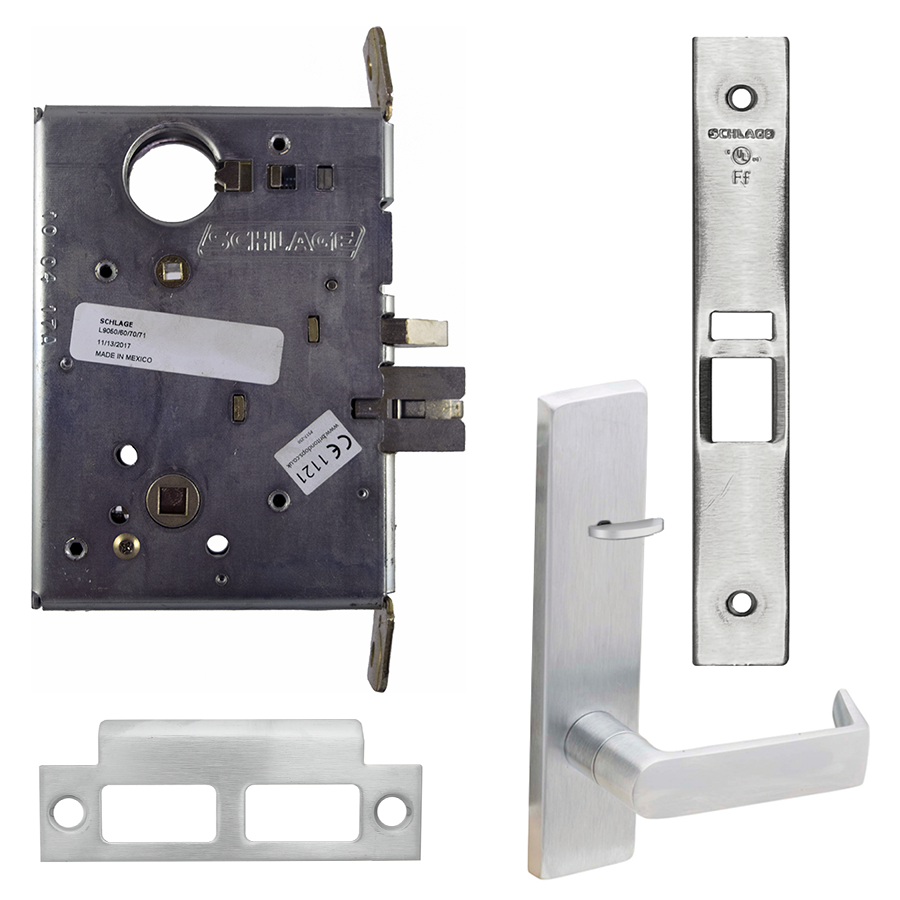

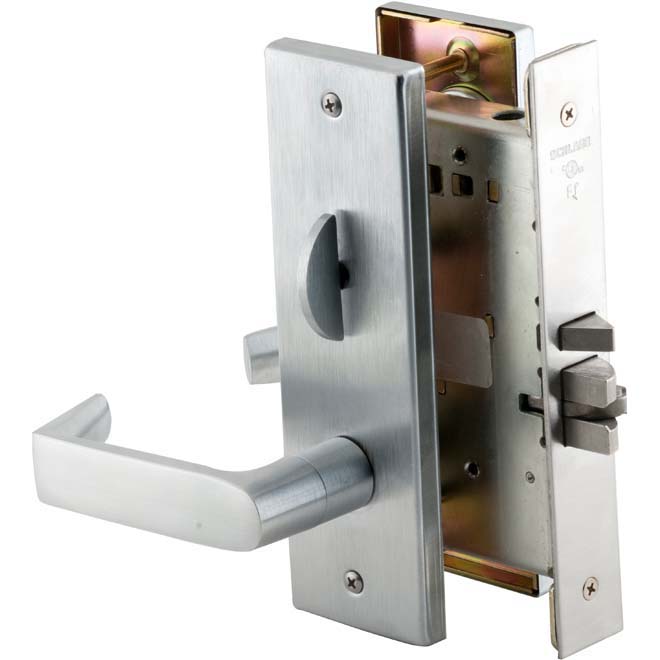

Schlage Commercial L9050L06N626 Entry / Office Mortise Lock offers robust security combined with versatile functionality. Designed for commercial environments, this lock features a latchbolt that can be retracted from either side, ensuring ease of access while maintaining security. It is locked or unlocked by a key from the outside or by a turn from the inside, with immediate egress always available. Constructed to meet the highest standards, the L9050 is ANSI/BHMA Certified A156.13-2012 and boasts a Commercial Grade 1 rating, making it suitable for high-traffic areas. The mortise lock body is designed to fit seamlessly into the edge of a 1-3/4" thick door, ensuring a secure installation. The satin chrome finish not only enhances its aesthetic appeal but also offers durability against wear and tear. With a reversible handing feature, this lock can accommodate various door configurations. It is UL Listed for 3-hour fire doors, providing an additional layer of safety. Backed by a limited 10-year mechanical and 3-year electro-mechanical warranty, the Schlage L9050L06N626 is a reliable choice for any entry or office application, ensuring peace of mind for building professionals and homeowners alike.
For more than 90 years, Schlage has been creating the strongest and most technologically advanced security products for homes, multi-family, commercial, and institutional buildings. We have been meticulous designers, painstaking engineers, and proud craftsmen. From durable mechanical locks to comprehensive electronic access control solutions and biometrics, Schlage provides protection at critical moments–when property and personal security are at stake. In homes, public buildings, and the workplace, at the end of the day, Schlage stands for one thing: strong.
Attributes
Manufacturer surcharge: $ 0.0
Alternate Codes: SCHL9050L06N626
Ansi: A156.13-2017 Series 1000
Ansi Function: F04 - Entry/Office
Baa Qualified: Yes
Backset: 2-3/4" Backset
Bolt Projection: 3/4" Latch
Bolt Protection: 3/4"
Burglar Rated: No
Category: Mechanical Commercial Locksets
Commercial Residential: Commercial
Country of Origin: Mexico
Country of origin: Mexico
Cylinder Type: Less Cylinder
Design: 06 Lever
Dimension: 2-1/2" x 7-7/8" Escutcheon with 4-5/8" Lever and 2-1/2" Projection
Door Application: Mortise Electric, Mortise Lock Body, Mortise Lock Sets
Door Range: 1-3/4"
Door Thickness: 1-3/4"
Dust Box: Plastic
Finish: Satin Chrome
Finish Code: 626
Finish Color: Brushed Chrome, Satin Chrome
Finish Description: Satin Chrome
Finish Family: Matte Silver
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Function: 9050-Entrance Office Lock
Function Family: Entrance/Office
Grade: Grade 1
Hand: Field Reversible
Handing: Reversible
Hazardous Material: NO
Installation: Commercial
Latch Backset Dim: 2-3/4"
Latch Faceplate Dimension: 1-1/4" x 8"
Latch Type: Dead Latch (Guarded)
Lever Design: 6
Lever Knob Design: 06 - Lever
Lever Knob Design Family: Straight Return Lever
Leverknob Design: 06 Lever
Leverknob Design Family: Straight Return Lever
Limited Warranty: 3 Years
Lock Category: Mortise Lockset - Latch Only
Lock Face Size: 8" x 1-1/4"
Manufacturer Function Description: Latchbolt retracted by knob/lever from either side unless outside is made inoperative by key outside or by turning inside thumbturn. When outside is locked, latchbolt is retracted by key outside or by knob/lever inside. Outside knob/lever remains locked until thumbturn is returned to vertical or unlocked by key. Auxiliary latch deadlocks latchbolt when door is locked. Inside knob/lever is always free for immediate egress.
Manufacturer Warranty: Limited 10 Year Mechanical and 3 Year Electro Mechanical Warranty
Material: Zinc Base
No Of Inners: 1
Order_ Qty: 1
Origin: Mexico
Pack Height: 5.63"
Pack Height 2: 5.63"
Pack Length: 10.38"
Pack Length 2: 10.38"
Pack Qty: 1
Pack Volume: 313.68 in³
Pack Volume 2: 313.68 in³
Pack Width: 5.38"
Pack Width 2: 5.38"
Pocket Dimensions: 6-5/8" x 4-1/2"
Projection: 2-1/2"
Restrictions: None
Rose Escutcheon Design: N - Escutcheon
Rose Escutcheon Dimensions: 8" x 2-9/16" x 7/16"
Rose/ Escutcheon: N Escutcheon
Roseescutcheon Design: N Escutcheon
Roseescutcheon Dimensions: 8" x 2-9/16" x 7/16"
Screws: Combination
Series: L Series
Ship Weight: 6.3 lbs.
Std Latch Backset Dim: 2-3/4"
Std Latch Type: Dead Latch (Guarded)
Std Strike Height: 4-7/8"
Std Strike Number: 10-072 1316 626
Std Strike Type: ANSI Strike
Std Strike Width: 1-3/16"
Strike: ANSI Strike
Strike Dimension: 4-7/8" with 1-1/4" Lip
Strike Height: 4-7/8"
Strike Number: 10-072
Strike Type: ASA
Strike Width: 1-1/4"
Subcategory: Mortise Locksets
Subtype: Mortise Lock
Type: Locks, Cylinders, Cores, Keyblanks
Ul Listing: UL Listed
Ul Listing Type: UL Listed for 3 Hour Fire Door
Unit of Measure: Each
Unit of Measure 2: Case
Unit of Measure 2 Qty: 6
