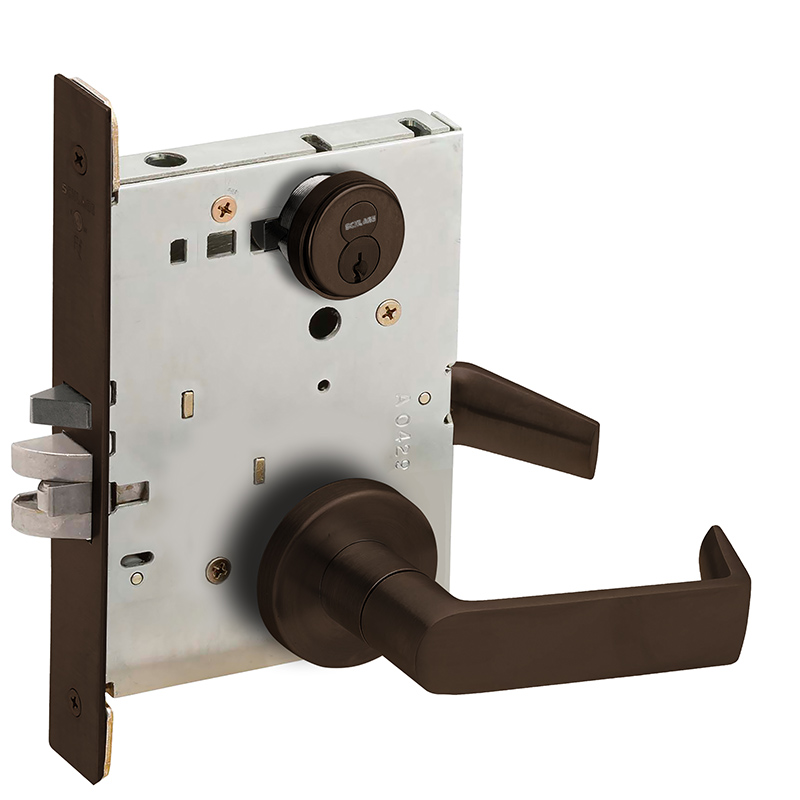

Schlage L9050R06A613 Mortise Lock with IC Core C Keyway, 06 Lever, A Rose, Oil Rubbed Bronze

Schlage Commercial L9050R06A613 Entry / Office Mortise Lock combines durability with functionality, making it an ideal choice for commercial applications. Designed with a large format IC core C keyway, this lock offers enhanced security and flexibility in key management. The 06 lever, paired with an elegant A rose, features a rich oil rubbed bronze finish that adds a sophisticated touch to any entryway. With a 2-3/4" backset, the L9050R fits seamlessly into a variety of door configurations. Its dimensions include a 2-1/8" rose, a 4-5/8" lever length, and a 2-1/2" projection, ensuring a robust yet stylish profile. This lock is reversible, accommodating various handing requirements, which simplifies installation and enhances versatility. The ANSI strike further ensures compatibility with standard door frames, while the L Series designation signifies quality engineering and reliability. Designed for entry and office functions, this mortise lock is perfect for high-traffic areas where both security and ease of use are paramount. Whether you're a building professional or a knowledgeable homeowner, the Schlage Commercial L9050R06A613 is a trusted solution that meets your security needs without compromising on style.

Entry / Office Mortise Lock with Large Format IC Core C Keyway with 06 Lever and A Rose Oil Rubbed Bronze Finish

• Handing:
• L9000 Series lock bodies are field-reversible without disassembly. L400 Series locks are non-handed.
• Door thickness: 1-3/4" (44 mm) standard. 1-3/8" (35 mm) to 2-1/2" (64 mm) optional. Over 2-1/2" (64 mm) door ranges vary by function. No escutcheon available for 1-3/4" (44 mm) doors standard. 2" to 2-3/8" (51 mm to 60 mm) optional. Specify door thickness if other than 1-3/4".
• Backset: 2-3/4" (70 mm) only.
• Armored front:
• L9000 Series: 1-1/4" x 8" x 7/32" (32 mm x 203 mm x 6 mm) standard. 1-1/16" x 8" x 1-7/32" (27 mm x 203 mm x 6 mm) optional.
• L400 Series: 4-7/16" x 3-5/8" x 1" (113 mm x 92 mm x 25 mm)
• Case size:
• L9000 Series: 4-7/16" x 6-1/16" x 1" (113 mm x 154 mm x 25 mm)
• Spacing: Knob or lever to cylinder, 3-7/8" (98mm); knob or lever to thumbturn hub, 2-11/16" (68mm).
• Bolts: 1" (25mm) throw stainless steel deadbolt and 3/4" (19mm) throw stainless steel latch with anti-friction tongue.
• Exposed trim:
• Knobs: #41 and #42 heavy-duty wrought brass, bronze or stainless steel knobs match D Series knobs.
• Levers: Forged brass or bronze and cast stainless steel. Designs available to match D Series levers. 93 Lever design: Extruded brass, bronze or stainless steel. Mediterranean designs: Forged-brass lever and rose.
• Escutcheons: L escutcheons are cold-forged brass or bronze and stainless steel. N escutcheons are heavy wrought reinforced brass, bronze and stainless steel.
• Trim combinations: Available with knob both sides, lever both sides, or knob and lever with rose or escutcheon both sides.
• Strike: L9000 Series: ANSI curved lip strike 1-1/4" x 4-7/8" (32 mm x 124 mm) x 13/16" (30 mm) lip to center with dust box standard. L400 Series: 1-1/8" x 3-5/8" (29 mm x 92 mm) with dust box.
• Cylinder & keys: 6-pin Everest C123 keyway cylinder with two patented keys standard.
• Tested and certified to ANSI/BHMA grade 1 operational and security standards
• UL listed for 3-hour fire door; spring-loaded fusible link inside lock case provides fail secure mode in case of fire
• Deadbolt features include anti-saw pin in bolt to prevent cut-through
• Security blocking hub prevents lock access by removing levers
• Vandlgard option allows the outside lever to rotate freely down to prevent damage from excessive force while in a locked state
• Lock monitoring options include request to exit (RX), latchbolt (LX), door position (DPS), and deadbolt (DM) (availability varies by function)
• Patented Everest 29 S123 keyway is provided standard which prohibits unauthorized key duplication
• Restricted geographically exclusive Primus upgraded security options offer advanced key control and exceptional physical security
• Two piece anti-friction tongue in latch bolt reduces wear
• Breakaway spindle keeps door secured in the event of vandalism
• Field reversible latch bolt allows handing change without opening case
• Every Schlage lock undergoes intensive testing to determine its ANSI grade level including: cycle, resistance, door impact, warped door and bolt strength tests
• Commercial Grade 1
• UL Listed for 3 Hour Fide Door
• ANSI/BHMI Certified A156.13-2012
• Lock Body Mortises Inside the Edge of the Door
• L Series
