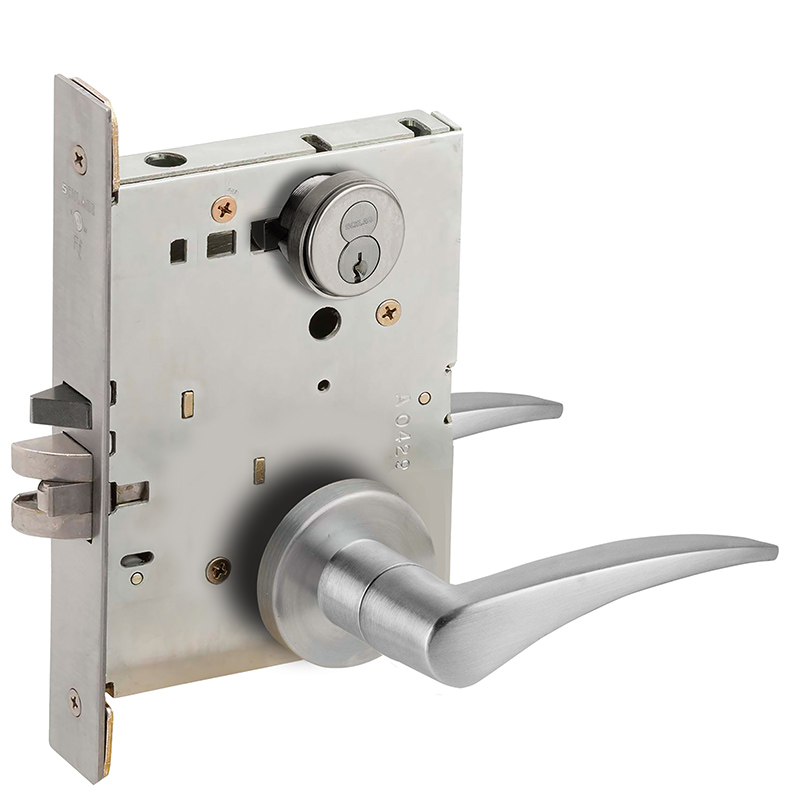

Schlage Commercial L9050R12A626RH Right Hand Entry / Office Mortise Lock is engineered for durability and security, making it an ideal choice for commercial and professional settings. This lock features a large format IC core with a C keyway, ensuring a high level of access control. Designed specifically for right-handed applications, it operates seamlessly with a 2-3/4" backset, allowing for easy installation. The lock's satin chrome finish not only provides a sleek and modern aesthetic but also enhances its resistance to wear and corrosion, ensuring longevity in high-traffic environments. With a robust 2-1/8" rose and a 4-5/8" lever that extends 3-1/16" from the door, this mortise lock balances functionality with elegance. The ANSI strike enhances security, making this lock suitable for both entry and office applications. Crafted as part of the L Series, the Schlage L9050R12A626RH is both reliable and stylish. Its design is optimized for ease of use, offering a smooth operation that building professionals and homeowners alike will appreciate. With the ability to ship via UPS, this lock is a convenient addition to any door hardware solution, ensuring that protection and accessibility are never compromised.
Attributes
Ansi: A156.13-2017 Series 1000
Ansi Function: F04 - Entry/Office
Baa Qualified: Yes
Backset: 2-3/4" Backset
Bolt Projection: 3/4" Latch
Bolt Protection: 3/4"
Burglar Rated: No
Cam Number: L583-255
Cam Type: Schlage L
Category: Mechanical Commercial Locksets
Commercial Residential: Commercial
Country of Origin: Mexico
Country of origin: Mexico
Cylinder Length: 1-1/2"
Cylinder Type: Schlage FSIC With Core
Design: NULL
Dimension: 2-1/8" Rose with 4-5/8" Lever and 3-1/16" Projection
Door Range: 1-3/4"
Door Thickness: 1-3/4"
Dust Box: Plastic
Finish: Satin Chrome
Finish Code: 626
Finish Description: Satin Chrome
Finish Family: Matte Silver
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Function: 9050-Entrance Office Lock
Function Family: Entrance/Office
Grade: Grade 1
Hand: RH
Handing: Right Hand
Hazardous Material: NO
Installation: Commercial
Keying: 1 Bitted
Keys: Cut
Keyway: S123
Latch Backset Dim: 2-3/4"
Latch Faceplate Dimension: 1-1/4" x 8"
Latch Type: Dead Latch (Guarded)
Lever Knob Design: 12 - Lever
Lever Knob Design Family: Straight Lever
Leverknob Design: 12 Lever
Leverknob Design Family: Straight Lever
Limited Warranty: 3 Years
Lock Face Size: 8" x 1-1/4"
Manufacturer Function Description: Latchbolt retracted by knob/lever from either side unless outside is made inoperative by key outside or by turning inside thumbturn. When outside is locked, latchbolt is retracted by key outside or by knob/lever inside. Outside knob/lever remains locked until thumbturn is returned to vertical or unlocked by key. Auxiliary latch deadlocks latchbolt when door is locked. Inside knob/lever is always free for immediate egress.
Manufacturer Warranty: Limited 10 Year Mechanical and 3 Year Electro Mechanical Warranty
Material: Zinc Base
No Of Inners: 1
No Of Pins: 6 Pin Cylinder
Num Of Keys: 2
Num Pins: 6
Of Keys: 2
Order_ Qty: 1
Origin: Mexico
Pack Height: 5.63"
Pack Height 2: 5.63"
Pack Length: 10.38"
Pack Length 2: 10.38"
Pack Qty: 1
Pack Volume: 313.68 in³
Pack Volume 2: 313.68 in³
Pack Width: 5.38"
Pack Width 2: 5.38"
Pins: 6
Pocket Dimensions: 6-5/8" x 4-1/2"
Projection: 3.063"
Restrictions: None
Rose Escutcheon Design: A - Rose
Rose Escutcheon Dimensions: 2-1/8"
Roseescutcheon Design: A Rose
Roseescutcheon Dimensions: 2-1/8"
Screws: Combination
Series: L Series
Ship Weight: 6.3 lbs.
Std Keyway: S123
Std Latch Backset Dim: 2-3/4"
Std Latch Type: Dead Latch (Guarded)
Std Strike Height: 4-7/8"
Std Strike Number: 10-072 1316 626
Std Strike Type: ANSI Strike
Std Strike Width: 1-3/16"
Strike: ANSI Strike
Strike Dimension: 4-7/8" with 1-1/4" Lip
Strike Height: 4-7/8"
Strike Number: 10-072
Strike Type: ASA
Strike Width: 1-1/4"
Subcategory: Mortise Locksets
Subtype: Mortise Lock
Type: Locks, Cylinders, Cores, Keyblanks
Ul Listing: UL Listed
Ul Listing Type: UL Listed for 3 Hour Fire Door
Unit of Measure: Each
Unit of Measure 2: Case
Unit of Measure 2 Qty: 6
