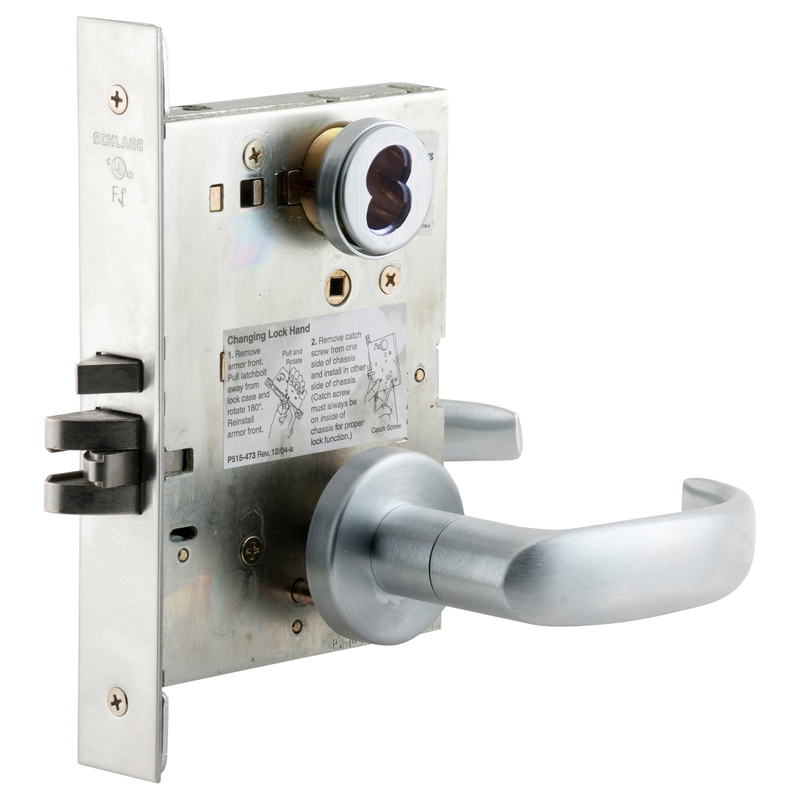

Schlage Commercial L9056J17A626 Automatic Unlocking Entry Mortise Lock offers a robust solution for secure access in commercial environments. Designed with an automatic unlocking function, this lock allows for latchbolt retraction from either side, enhancing convenience while ensuring safety. It can be locked by key or turn and is unlocked by key, turn, or simply closing the door, allowing for immediate egress from the inside. This Commercial Grade 1 lock is ANSI/BHMA certified (A156.13-2012) and UL listed for 3-hour fire door applications, providing peace of mind in occupant safety and compliance. The satin chrome finish not only adds a sleek aesthetic but also ensures durability in high-traffic areas. With a 2-3/4" backset and compatibility for 1-3/4" thick doors, it is designed for ease of installation. The L9056 features a reversible handing and is constructed with a zinc base material, making it both versatile and resilient. The elegant 17 lever design paired with an A Rose escutcheon complements any architectural style. With a limited 10-year mechanical warranty and a 3-year electro-mechanical warranty, the Schlage Commercial L9056J17A626 is an exceptional choice for those seeking reliability and performance in their door hardware solutions.
For more than 90 years, Schlage has been creating the strongest and most technologically advanced security products for homes, multi-family, commercial, and institutional buildings. We have been meticulous designers, painstaking engineers, and proud craftsmen. From durable mechanical locks to comprehensive electronic access control solutions and biometrics, Schlage provides protection at critical moments–when property and personal security are at stake. In homes, public buildings, and the workplace, at the end of the day, Schlage stands for one thing: strong.
Attributes
Ansi: A156.13-2017 Series 1000
Baa Qualified: Yes
Backset: 2-3/4" Backset
Bolt Projection: 3/4" Latch
Bolt Protection: 3/4"
Burglar Rated: No
Cam Number: L583-255
Cam Type: Schlage L
Category: Mechanical Commercial Locksets
Commercial Residential: Commercial
Country of Origin: Mexico
Country of origin: Mexico
Cylinder Length: 1-1/2"
Cylinder Type: Schlage FSIC Less Core
Design: 17 Lever and A Rose
Dimension: 2-1/8" Rose with 4-3/4" Lever and 3" Projection
Door Range: 1-3/4"
Door Thickness: 1-3/4"
Dust Box: Plastic
Finish: Satin Chrome
Finish Code: 626
Finish Description: Satin Chrome
Finish Family: Matte Silver
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Function: 9056-Entrance Office w Auto Unlocking
Function Family: Entrance/Office
Grade: Grade 1
Hand: Field Reversible
Handing: Reversible
Hazardous Material: NO
Installation: Commercial
Latch Faceplate Dimension: 1-1/4" x 8"
Lever Knob Design: 17 - Lever
Leverknob Design: 17 Lever
Leverknob Design Family: Curved Return Lever
Limited Warranty: 3 Years
Lock Face Size: 8" x 1-1/4"
Manufacturer Warranty: Limited 10 Year Mechanical and 3 Year Electro Mechanical Warranty
Material: Zinc Base
No Of Inners: 1
Order_ Qty: 1
Origin: Mexico
Pack Height: 5.63"
Pack Height 2: 5.63"
Pack Length: 10.38"
Pack Length 2: 10.38"
Pack Qty: 1
Pack Volume: 313.68 in³
Pack Volume 2: 313.68 in³
Pack Width: 5.38"
Pack Width 2: 5.38"
Pins: 6
Pocket Dimensions: 6-5/8" x 4-1/2"
Projection: 3"
Restrictions: None
Rose Escutcheon Design: A - Rose
Roseescutcheon Design: A Rose
Roseescutcheon Dimensions: 2-1/8"
Screws: Combination
Series: L Series
Ship Weight: 6.3 lbs.
Std Latch Backset Dim: 2-3/4"
Std Latch Type: Dead Latch (Guarded)
Std Strike Height: 4-7/8"
Std Strike Number: 10-072 1316 626
Std Strike Type: ANSI Strike
Std Strike Width: 1-3/16"
Strike: ANSI Strike
Strike Dimension: 4-7/8" with 1-1/4" Lip
Strike Height: 4-7/8"
Strike Number: 10-072
Strike Type: ASA
Strike Width: 1-1/4"
Subcategory: Mortise Locksets
Subtype: Mortise Lock
Type: Locks, Cylinders, Cores, Keyblanks
Ul Listing: UL Listed
Ul Listing Type: UL Listed for 3 Hour Fire Door
Unit of Measure: Each
Unit of Measure 2: Case
Unit of Measure 2 Qty: 6
