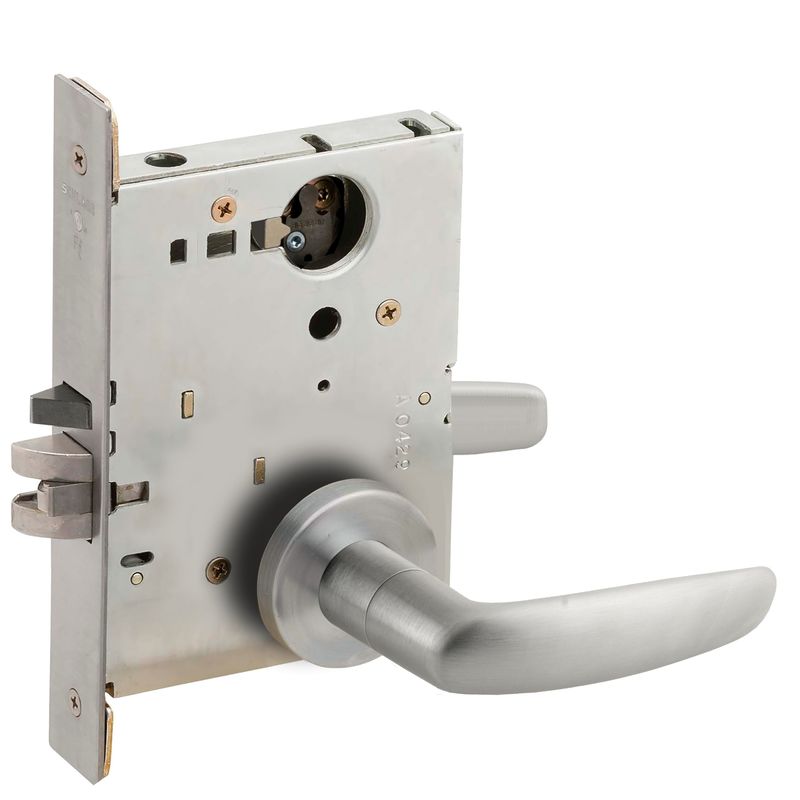

Schlage Commercial L9056L07A626 Automatic Unlocking Entry Mortise Lock offers a blend of advanced security and user convenience. Designed for commercial applications, this mortise lock features automatic unlocking, allowing for easy access when needed. The latchbolt can be retracted from either side, providing flexibility, while the interior remains always free for immediate egress, ensuring safety and compliance with building codes. Certified to ANSI/BHMA A156.13-2012 standards, this Commercial Grade 1 lock is built for durability and reliability. Its satin chrome finish not only enhances its aesthetic appeal but also contributes to its long-lasting performance. With a reversible handing and a 2-3/4" backset, it's suitable for doors with a thickness of 1-3/4". The lock body is designed to mortise inside the edge of the door, ensuring a clean installation. Additionally, it is UL Listed for use on 3-hour fire doors, making it an excellent choice for various high-security environments. The 07 lever design paired with an A rose escutcheon adds a touch of sophistication while maintaining functionality. Backed by a limited 10-year mechanical warranty, the Schlage L9056L07A626 is a trusted solution for enhancing building security.
For more than 90 years, Schlage has been creating the strongest and most technologically advanced security products for homes, multi-family, commercial, and institutional buildings. We have been meticulous designers, painstaking engineers, and proud craftsmen. From durable mechanical locks to comprehensive electronic access control solutions and biometrics, Schlage provides protection at critical moments–when property and personal security are at stake. In homes, public buildings, and the workplace, at the end of the day, Schlage stands for one thing: strong.
Attributes
Ansi: A156.13-2017 Series 1000
Baa Qualified: Yes
Backset: 2-3/4" Backset
Bolt Projection: 3/4" Latch
Bolt Protection: 3/4"
Burglar Rated: No
Category: Mechanical Commercial Locksets
Commercial Residential: Commercial
Country of Origin: Mexico
Country of origin: Mexico
Cylinder Type: Less Cylinder
Design: NULL
Dimension: 2-1/8" Rose with 4-5/8" Lever and 2-7/8" Projection
Door Range: 1-3/4"
Door Thickness: 1-3/4"
Dust Box: Plastic
Finish: Satin Chrome
Finish Code: 626
Finish Description: Satin Chrome
Finish Family: Matte Silver
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Function: 9056-Entrance Office w Auto Unlocking
Function Family: Entrance/Office
Grade: Grade 1
Hand: Field Reversible
Handing: Reversible
Hazardous Material: NO
Installation: Commercial
Latch Backset Dim: 2-3/4"
Latch Faceplate Dimension: 1-1/4" x 8"
Latch Type: Dead Latch (Guarded)
Lever Knob Design: 07 - Lever
Lever Knob Design Family: Curved Lever
Leverknob Design: 07 Lever
Leverknob Design Family: Curved Lever
Limited Warranty: 3 Years
Lock Face Size: 8" x 1-1/4"
Manufacturer Function Description: Latchbolt retracted by knob/lever from either side unless outside is made inoperative by key outside or by rotating inside thumbturn. Outside knob/lever unlocked by key outside, thumbturn or closing door. Rotating inside knob/lever simultaneously retracts latchbolt and unlocks outside knob/lever. Auxiliary latch deadlocks latchbolt when door is locked. Inside knob/lever is always free for immediate egress.
Manufacturer Warranty: Limited 10 Year Mechanical and 3 Year Electro Mechanical Warranty
Material: Zinc Base
No Of Inners: 1
Order_ Qty: 1
Origin: Mexico
Pack Height: 5.63"
Pack Height 2: 5.63"
Pack Length: 10.38"
Pack Length 2: 10.38"
Pack Qty: 1
Pack Volume: 313.68 in³
Pack Volume 2: 313.68 in³
Pack Width: 5.38"
Pack Width 2: 5.38"
Pocket Dimensions: 6-5/8" x 4-1/2"
Projection: 2-7/8"
Restrictions: None
Rose Escutcheon Design: A - Rose
Rose Escutcheon Dimensions: 2-1/8"
Roseescutcheon Design: A Rose
Roseescutcheon Dimensions: 2-1/8"
Screws: Combination
Series: L Series
Ship Weight: 6.3 lbs.
Std Latch Backset Dim: 2-3/4"
Std Latch Type: Dead Latch (Guarded)
Std Strike Height: 4-7/8"
Std Strike Number: 10-072 1316 626
Std Strike Type: ANSI Strike
Std Strike Width: 1-3/16"
Strike: ANSI Strike
Strike Dimension: 4-7/8" with 1-1/4" Lip
Strike Height: 4-7/8"
Strike Number: 10-072
Strike Type: ASA
Strike Width: 1-1/4"
Subcategory: Mortise Locksets
Subtype: Mortise Lock
Type: Locks, Cylinders, Cores, Keyblanks
Ul Listing: UL Listed
Ul Listing Type: UL Listed for 3 Hour Fire Door
Unit of Measure: Each
Unit of Measure 2: Case
Unit of Measure 2 Qty: 6
