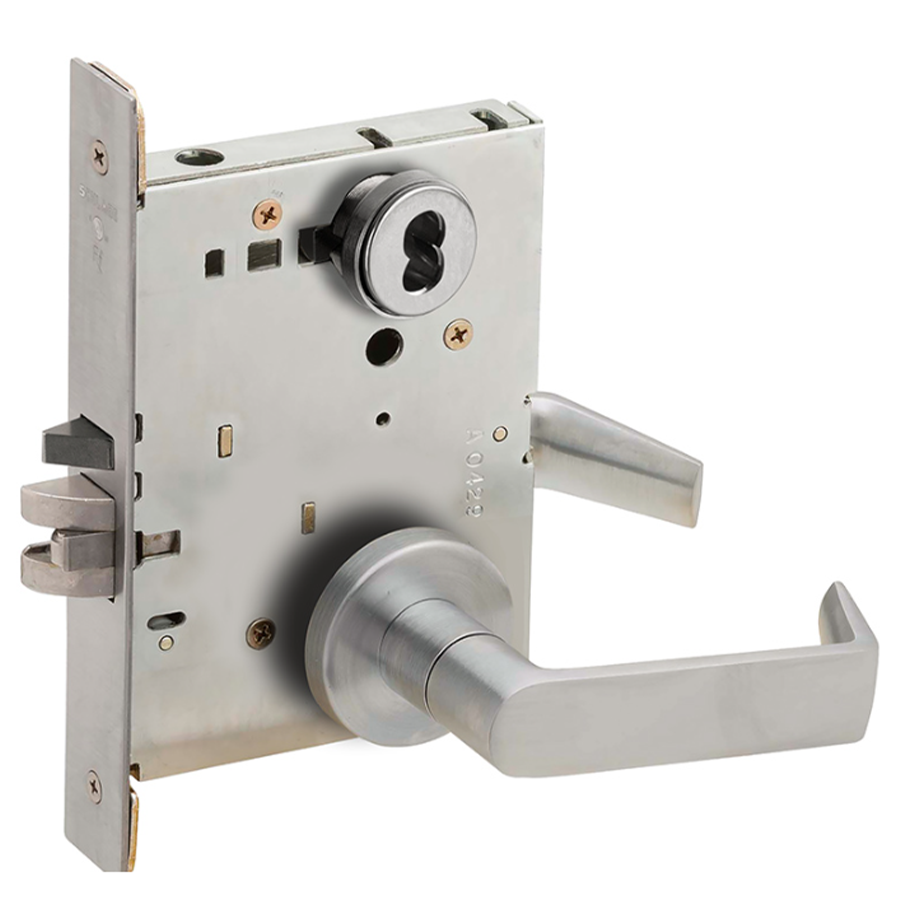

Schlage Commercial L9070B06A626 Classroom Mortise Lock with Small Format IC Less Core offers a robust solution for secure access in educational and institutional settings. Designed with a sleek satin chrome finish, this lock not only enhances the aesthetic appeal of your doors but also provides durability against wear and tear. This classroom function lock is equipped with a 2-3/4" backset, ensuring compatibility with standard door configurations. The 2-1/8" rose paired with a 4-5/8" lever provides a comfortable grip for everyday use, while its 2-1/2" projection allows for smooth operation without compromising space. The reversible handing makes installation straightforward, accommodating various door orientations to suit your needs. Engineered as part of the trusted L Series, the L9070B06A626 features an ANSI strike, ensuring reliable performance and security. The small format IC less core design allows for easy rekeying, making it a practical choice for facilities requiring flexibility in access control. For added convenience, this product can ship via UPS, streamlining your procurement process. With Schlage Commercial’s commitment to quality and safety, the L9070B06A626 Classroom Mortise Lock is an excellent investment for any building professional or knowledgeable homeowner seeking reliable door hardware solutions.
Attributes
Ship via: Can Ship UPS
Alternate Codes: L9070B06A626
Ansi: A156.13-2017 Series 1000
Ansi Function: F05 - Classroom
Baa Qualified: Yes
Backset: 2-3/4" Backset
Bolt Projection: 3/4" Latch
Bolt Protection: 3/4"
Burglar Rated: No
Cam Number: L583-255
Cam Type: Schlage L
Category: Lock Sets, Mortise Lock Sets, Mortise Locks
Commercial Residential: Commercial
Country of Origin: Mexico
Country of origin: Mexico
Cylinder Length: 1-3/8"
Cylinder Type: SFIC Prep Less Core
Dimension: 2-1/8" Rose with 4-5/8" Lever and 2-1/2" Projection
Door Application: Mortise Electric, Mortise Lock Body, Mortise Lock Sets
Door Thickness: 1-3/4"
Dust Box: Plastic
Finish: Satin Chrome
Finish Code: 626
Finish Color: Brushed Chrome, Satin Chrome
Finish Description: Satin Chrome
Finish Family: Matte Silver
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Function: 9070-Classroom Lock
Function Family: Classroom
Grade: Grade 1
Hand: Field Reversible
Handing: Reversible
Installation: Commercial
Latch Backset Dim: 2-3/4"
Latch Type: Dead Latch (Guarded)
Lever Design: 6
Lever Knob Design: 06 - Lever
Lever Knob Design Family: Straight Return Lever
Leverknob Design: 06 Lever
Leverknob Design Family: Straight Return Lever
Limited Warranty: 3 Years
Lock Category: Mortise Lockset - Latch Only
Lock Face Size: 8" x 1-1/4"
Manufacturer Function Description: Latchbolt retracted by knob/lever from either side unless outside is locked by key. Unlocked from outside by key. Inside knob/lever always free for immediate exit. Auxiliary latch deadlocks latchbolt when door is locked. Inside knob/lever is always free for immediate egress.
Num Pins: 6 to 7
Origin: Mexico
Pack Height: 5.63"
Pack Height 2: 5.63"
Pack Length: 10.38"
Pack Length 2: 10.38"
Pack Qty: 1
Pack Volume: 313.68 in³
Pack Volume 2: 313.68 in³
Pack Width: 5.38"
Pack Width 2: 5.38"
Pins: 6 to 7
Pocket Dimensions: 6-5/8" x 4-1/2"
Projection: 2-1/2"
Restrictions: None
Rose Escutcheon Design: A - Rose
Rose Escutcheon Dimensions: 2-1/8"
Rose/ Escutcheon: A Rose
Roseescutcheon Design: A Rose
Roseescutcheon Dimensions: 2-1/8"
Screws: Combination
Series: L Series
Ship Weight: 6.3 lbs.
Std Latch Backset Dim: 2-3/4"
Std Latch Type: Dead Latch (Guarded)
Std Strike Height: 4-7/8"
Std Strike Number: 10-072 1316 626
Std Strike Type: ANSI Strike
Std Strike Width: 1-3/16"
Strike: ANSI Strike
Strike Height: 4-7/8"
Strike Number: 10-072
Strike Type: ASA
Strike Width: 1-1/4"
Subtype: Mortise Lock
Type: Locks, Cylinders, Cores, Keyblanks
Ul Listing: UL Listed
Unit of Measure: Each
Unit of Measure 2: Case
Unit of Measure 2 Qty: 6
