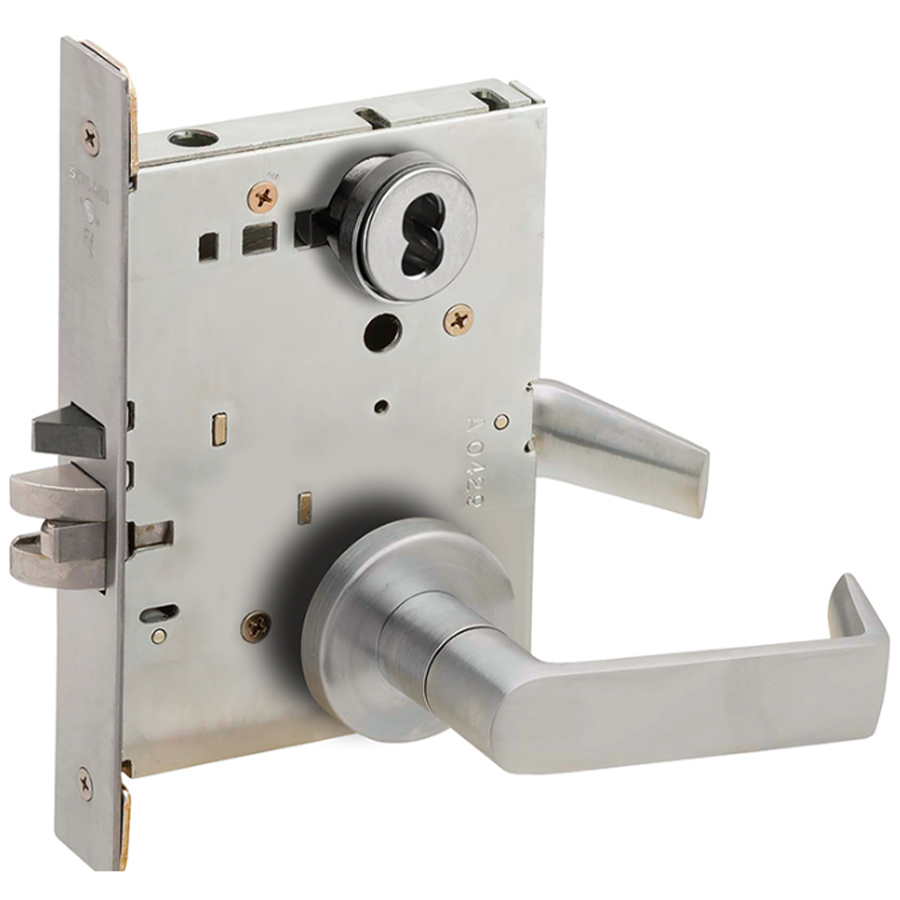

Schlage Commercial L9070B06B626 Classroom Mortise Lock is designed to enhance security and functionality in educational and commercial environments. This robust lock features a small format IC less core, making it an ideal choice for facilities that require flexibility and ease of key management. The lock is finished in a sleek satin chrome that not only provides a modern aesthetic but also ensures durability against wear and tear. With a 2-3/4" backset and a reversible handing, this lock accommodates a variety of door types, making installation straightforward. The design includes a 2-9/16" rose, complemented by a 4-5/8" lever which offers an ergonomic grip for everyday use. The ANSI strike ensures compatibility with standard door frames, providing peace of mind in securing access points. The classroom function of the L9070B06B626 allows for controlled access, making it suitable for environments where safety is paramount. It is part of Schlage’s trusted L Series, known for its high-quality performance and reliability. Whether you are upgrading existing hardware or outfitting new constructions, this mortise lock is an excellent choice for those looking for a combination of style, strength, and security.
Attributes
Alternate Codes: L9070B06B626
Ansi: A156.13-2017 Series 1000
Ansi Function: F05 - Classroom
Baa Qualified: Yes
Backset: 2-3/4" Backset
Bolt Projection: 3/4" Latch
Bolt Protection: 3/4"
Burglar Rated: No
Cam Number: L583-255
Cam Type: Schlage L
Category: Lock Sets, Mortise Lock Sets, Mortise Locks
Commercial Residential: Commercial
Country of Origin: Mexico
Country of origin: Mexico
Cylinder Length: 1-3/8"
Cylinder Type: SFIC Prep Less Core
Design: NULL
Dimension: 2-9/16" Rose with 4-5/8" Lever and 2-1/2" Projection
Door Application: Mortise Electric, Mortise Lock Body, Mortise Lock Sets
Door Thickness: 1-3/4"
Dust Box: Plastic
Finish: Satin Chrome
Finish Code: 626
Finish Color: Brushed Chrome, Satin Chrome
Finish Description: Satin Chrome
Finish Family: Matte Silver
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Function: 9070-Classroom Lock
Function Family: Classroom
Grade: Grade 1
Hand: Field Reversible
Handing: Reversible
Installation: Commercial
Latch Backset Dim: 2-3/4"
Latch Type: Dead Latch (Guarded)
Lever Design: 6
Lever Knob Design: 06 - Lever
Lever Knob Design Family: Straight Return Lever
Leverknob Design: 06 Lever
Leverknob Design Family: Straight Return Lever
Limited Warranty: 3 Years
Lock Category: Mortise Lockset - Latch Only
Lock Face Size: 8" x 1-1/4"
Manufacturer Function Description: Latchbolt retracted by knob/lever from either side unless outside is locked by key. Unlocked from outside by key. Inside knob/lever always free for immediate exit. Auxiliary latch deadlocks latchbolt when door is locked. Inside knob/lever is always free for immediate egress.
Num Pins: 6 to 7
Origin: Mexico
Pack Height: 5.63"
Pack Height 2: 5.63"
Pack Length: 10.38"
Pack Length 2: 10.38"
Pack Qty: 1
Pack Volume: 313.68 in³
Pack Volume 2: 313.68 in³
Pack Width: 5.38"
Pack Width 2: 5.38"
Pins: 6 to 7
Pocket Dimensions: 6-5/8" x 4-1/2"
Projection: 2-1/2"
Restrictions: None
Rose Escutcheon Design: B - Rose
Rose Escutcheon Dimensions: 2-9/16"
Rose/ Escutcheon: B Rose
Roseescutcheon Design: B Rose
Roseescutcheon Dimensions: 2-9/16"
Screws: Combination
Series: L Series
Ship Weight: 6.3 lbs.
Std Latch Backset Dim: 2-3/4"
Std Latch Type: Dead Latch (Guarded)
Std Strike Height: 4-7/8"
Std Strike Number: 10-072 1316 626
Std Strike Type: ANSI Strike
Std Strike Width: 1-3/16"
Strike: ANSI Strike
Strike Height: 4-7/8"
Strike Number: 10-072
Strike Type: ASA
Strike Width: 1-1/4"
Subtype: Mortise Lock
Type: Locks, Cylinders, Cores, Keyblanks
Ul Listing: UL Listed
Unit of Measure: Each
Unit of Measure 2: Case
Unit of Measure 2 Qty: 6
