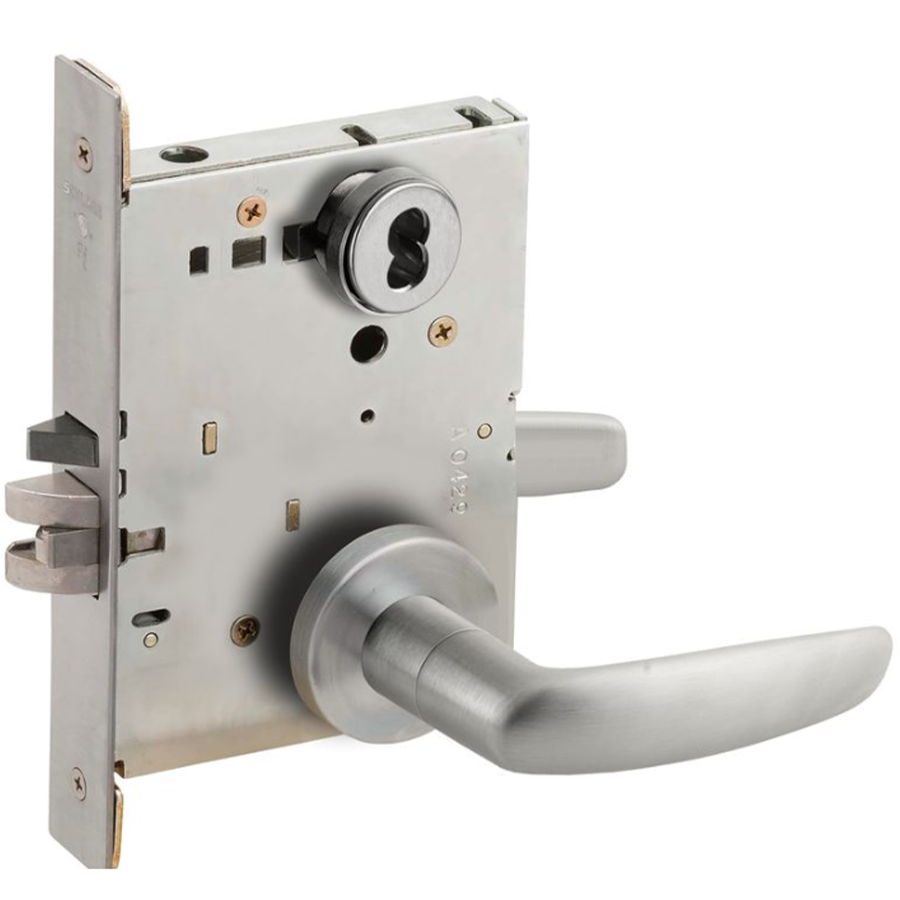

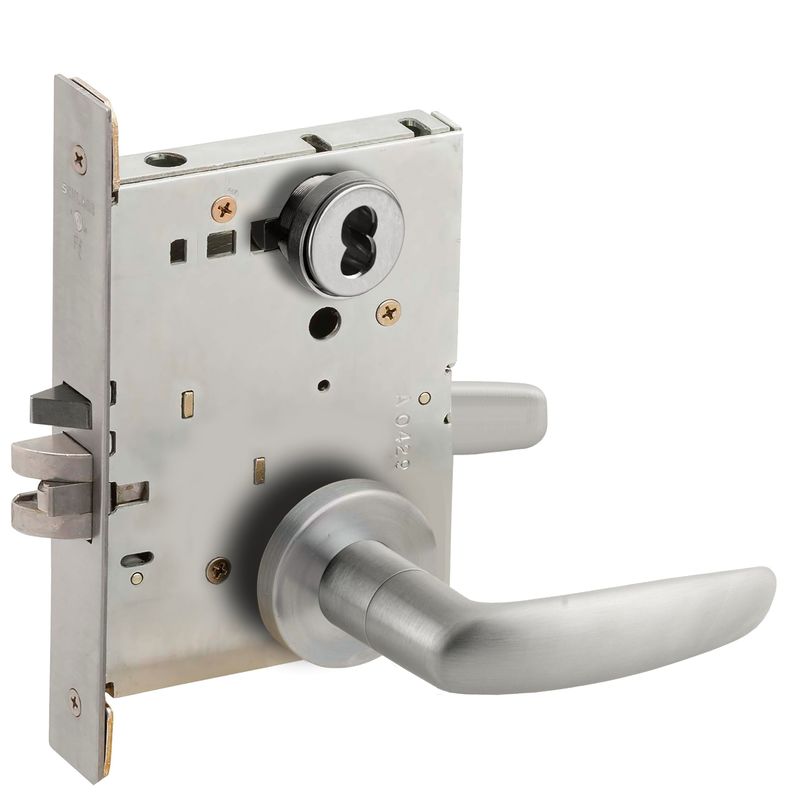

Schlage Commercial L9070B07A626 Classroom Mortise Lock offers security and convenience tailored for educational and commercial environments. This mechanical lockset features a small format interchangeable core, enhancing flexibility in key management. Designed with a 2-3/4" backset, it ensures a reliable fit for various door types while the ANSI strike guarantees compatibility with standard door frames. The lock showcases a sleek satin chrome finish, providing a modern aesthetic that complements any professional setting. Its 2-1/8" rose diameter, paired with a 4-5/8" lever and a 2-7/8" projection, creates an ergonomic design that is both functional and visually appealing. The reversible handing allows for easy installation on either side of the door, making it versatile for numerous applications. Part of Schlage's L Series, this classroom function lock is engineered for high-traffic areas, effectively balancing accessibility with security. The durable construction ensures long-lasting performance, while the easy-to-operate lever handle facilitates smooth entry and exit. Whether you're upgrading existing hardware or outfitting a new facility, the Schlage Commercial L9070B07A626 Classroom Mortise Lock is a dependable choice for enhancing safety and functionality.
Attributes
Alternate Codes: L9070B07A626
Ansi: A156.13-2017 Series 1000
Ansi Function: F05 - Classroom
Baa Qualified: Yes
Backset: 2-3/4" Backset
Bolt Projection: 3/4" Latch
Bolt Protection: 3/4"
Burglar Rated: No
Cam Number: L583-255
Cam Type: Schlage L
Category: Lock Sets, Mortise Lock Sets, Mortise Locks
Commercial Residential: Commercial
Country of Origin: Mexico
Country of origin: Mexico
Cylinder Length: 1-3/8"
Cylinder Type: SFIC Prep Less Core
Dimension: 2-1/8" Rose with 4-5/8" Lever and 2-7/8" Projection
Door Application: Mortise Electric, Mortise Lock Body, Mortise Lock Sets
Door Thickness: 1-3/4"
Dust Box: Plastic
Finish: Satin Chrome
Finish Code: 626
Finish Color: Brushed Chrome, Satin Chrome
Finish Description: Satin Chrome
Finish Family: Matte Silver
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Function: 9070-Classroom Lock
Function Family: Classroom
Grade: Grade 1
Hand: Field Reversible
Handing: Reversible
Installation: Commercial
Latch Backset Dim: 2-3/4"
Latch Type: Dead Latch (Guarded)
Lever Design: 7
Lever Knob Design: 07 - Lever
Lever Knob Design Family: Curved Lever
Leverknob Design: 07 Lever
Leverknob Design Family: Curved Lever
Limited Warranty: 3 Years
Lock Category: Mortise Lockset - Latch Only
Lock Face Size: 8" x 1-1/4"
Manufacturer Function Description: Latchbolt retracted by knob/lever from either side unless outside is locked by key. Unlocked from outside by key. Inside knob/lever always free for immediate exit. Auxiliary latch deadlocks latchbolt when door is locked. Inside knob/lever is always free for immediate egress.
Num Pins: 6 to 7
Origin: Mexico
Pack Height: 5.63"
Pack Height 2: 5.63"
Pack Length: 10.38"
Pack Length 2: 10.38"
Pack Qty: 1
Pack Volume: 313.68 in³
Pack Volume 2: 313.68 in³
Pack Width: 5.38"
Pack Width 2: 5.38"
Pins: 6 to 7
Pocket Dimensions: 6-5/8" x 4-1/2"
Projection: 2-7/8"
Restrictions: None
Rose Escutcheon Design: A - Rose
Rose Escutcheon Dimensions: 2-1/8"
Rose/ Escutcheon: A Rose
Roseescutcheon Design: A Rose
Roseescutcheon Dimensions: 2-1/8"
Screws: Combination
Series: L Series
Ship Weight: 6.3 lbs.
Std Latch Backset Dim: 2-3/4"
Std Latch Type: Dead Latch (Guarded)
Std Strike Height: 4-7/8"
Std Strike Number: 10-072 1316 626
Std Strike Type: ANSI Strike
Std Strike Width: 1-3/16"
Strike: ANSI Strike
Strike Height: 4-7/8"
Strike Number: 10-072
Strike Type: ASA
Strike Width: 1-1/4"
Subcategory: Mortise Locksets
Subtype: Mortise Lock
Type: Locks, Cylinders, Cores, Keyblanks
Ul Listing: UL Listed
Unit of Measure: Each
Unit of Measure 2: Case
Unit of Measure 2 Qty: 6
