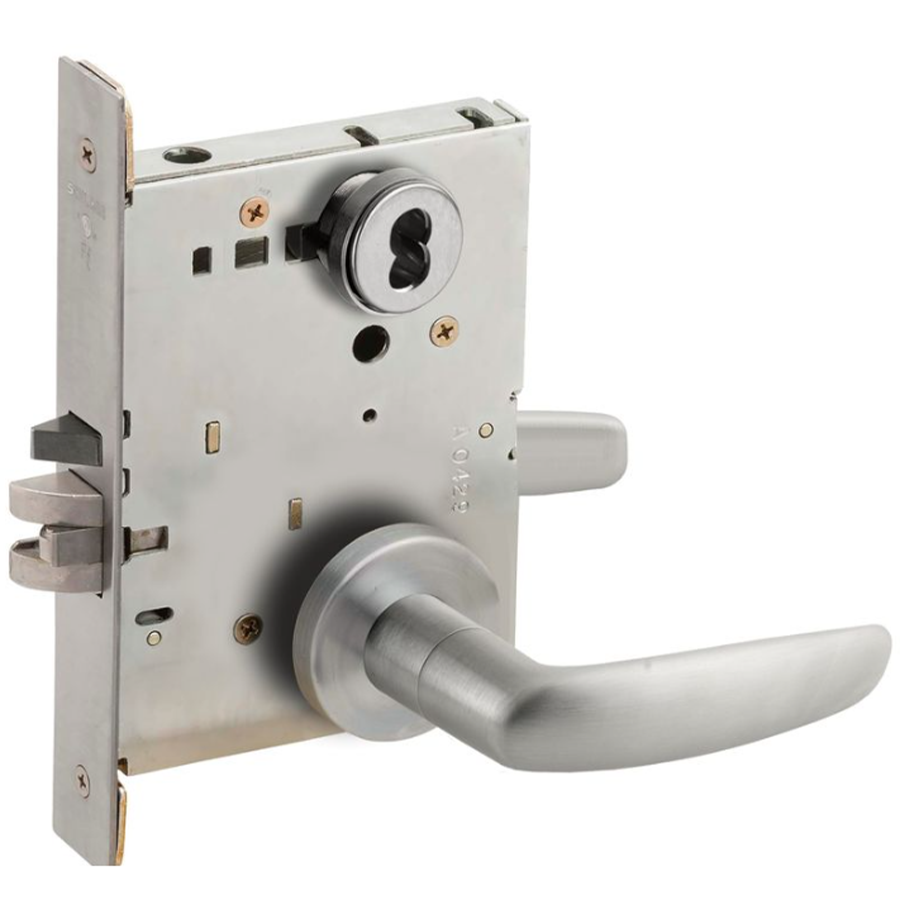

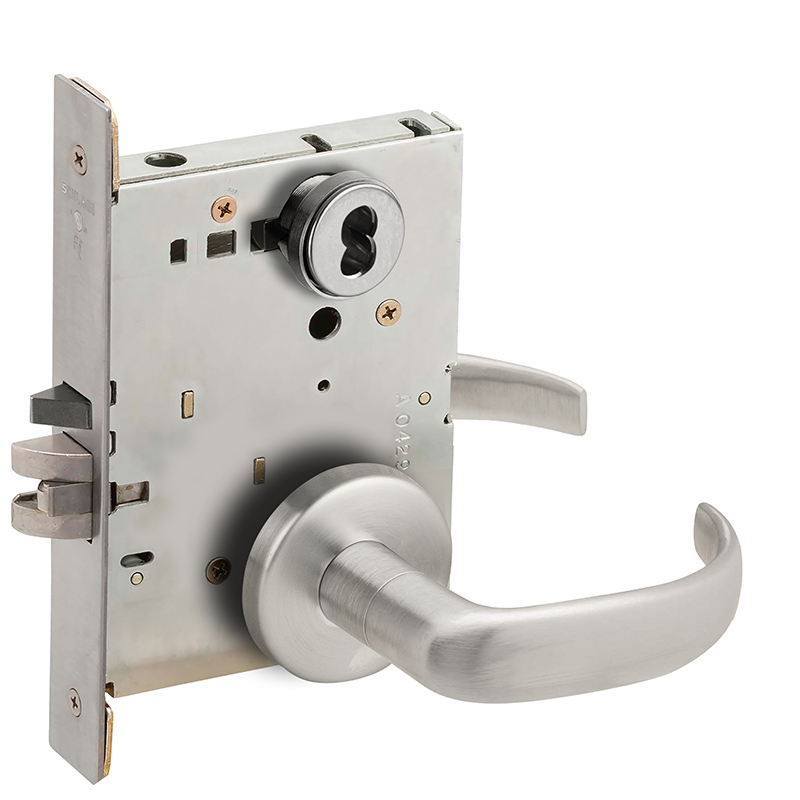

Schlage Commercial L9070B17B626 Classroom Mortise Lock offers a robust solution for educational and professional environments where security and functionality are paramount. Designed with a small format interchangeable core, this lock is perfect for classroom settings, allowing for easy rekeying and maintenance. The lock features a 2-3/4" backset and a reversible handing, ensuring versatility for various door installations. The satin chrome finish not only enhances the aesthetic appeal but also provides durability against wear and tear, making it an ideal choice for high-traffic areas. With dimensions of 2-9/16" for the rose and a 4-3/4" lever with a 3" projection, the lock delivers a modern and functional design that complements any decor. The ANSI strike ensures compatibility with standard door frames, while the L Series designation signifies Schlage’s commitment to quality and reliability. Whether you are outfitting a new building or upgrading existing door hardware, the Schlage L9070B17B626 lock is engineered to provide peace of mind and ease of use. With its combination of stylish design and practical functionality, it’s a trusted choice for architects, builders, and facilities managers alike.
Attributes
Alternate Codes: L9070B17B626
Ansi: A156.13-2017 Series 1000
Ansi Function: F05 - Classroom
Baa Qualified: Yes
Backset: 2-3/4" Backset
Bolt Projection: 3/4" Latch
Bolt Protection: 3/4"
Burglar Rated: No
Cam Number: L583-255
Cam Type: Schlage L
Category: Lock Sets, Mortise Lock Sets, Mortise Locks
Commercial Residential: Commercial
Country of Origin: Mexico
Country of origin: Mexico
Cylinder Length: 1-3/8"
Cylinder Type: SFIC Prep Less Core
Design: NULL
Dimension: 2-9/16" Rose with 4-3/4" Lever and 3" Projection
Door Application: Mortise Electric, Mortise Lock Body, Mortise Lock Sets
Door Thickness: 1-3/4"
Dust Box: Plastic
Finish: Satin Chrome
Finish Code: 626
Finish Color: Brushed Chrome, Satin Chrome
Finish Description: Satin Chrome
Finish Family: Matte Silver
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Function: 9070-Classroom Lock
Function Family: Classroom
Grade: Grade 1
Hand: Field Reversible
Handing: Reversible
Installation: Commercial
Latch Backset Dim: 2-3/4"
Latch Type: Dead Latch (Guarded)
Lever Design: 17
Lever Knob Design: 17 - Lever
Lever Knob Design Family: Curved Return Lever
Leverknob Design: 17 Lever
Leverknob Design Family: Curved Return Lever
Limited Warranty: 3 Years
Lock Category: Mortise Lockset - Latch Only
Lock Face Size: 8" x 1-1/4"
Manufacturer Function Description: Latchbolt retracted by knob/lever from either side unless outside is locked by key. Unlocked from outside by key. Inside knob/lever always free for immediate exit. Auxiliary latch deadlocks latchbolt when door is locked. Inside knob/lever is always free for immediate egress.
Num Pins: 6 to 7
Origin: Mexico
Pack Height: 5.63"
Pack Height 2: 5.63"
Pack Length: 10.38"
Pack Length 2: 10.38"
Pack Qty: 1
Pack Volume: 313.68 in³
Pack Volume 2: 313.68 in³
Pack Width: 5.38"
Pack Width 2: 5.38"
Pins: 6 to 7
Pocket Dimensions: 6-5/8" x 4-1/2"
Projection: 3"
Restrictions: None
Rose Escutcheon Design: B - Rose
Rose Escutcheon Dimensions: 2-9/16"
Rose/ Escutcheon: B Rose
Roseescutcheon Design: B Rose
Roseescutcheon Dimensions: 2-9/16"
Screws: Combination
Series: L Series
Ship Weight: 6.3 lbs.
Std Latch Backset Dim: 2-3/4"
Std Latch Type: Dead Latch (Guarded)
Std Strike Height: 4-7/8"
Std Strike Number: 10-072 1316 626
Std Strike Type: ANSI Strike
Std Strike Width: 1-3/16"
Strike: ANSI Strike
Strike Height: 4-7/8"
Strike Number: 10-072
Strike Type: ASA
Strike Width: 1-1/4"
Subtype: Mortise Lock
Type: Locks, Cylinders, Cores, Keyblanks
Ul Listing: UL Listed
Unit of Measure: Each
Unit of Measure 2: Case
Unit of Measure 2 Qty: 6
