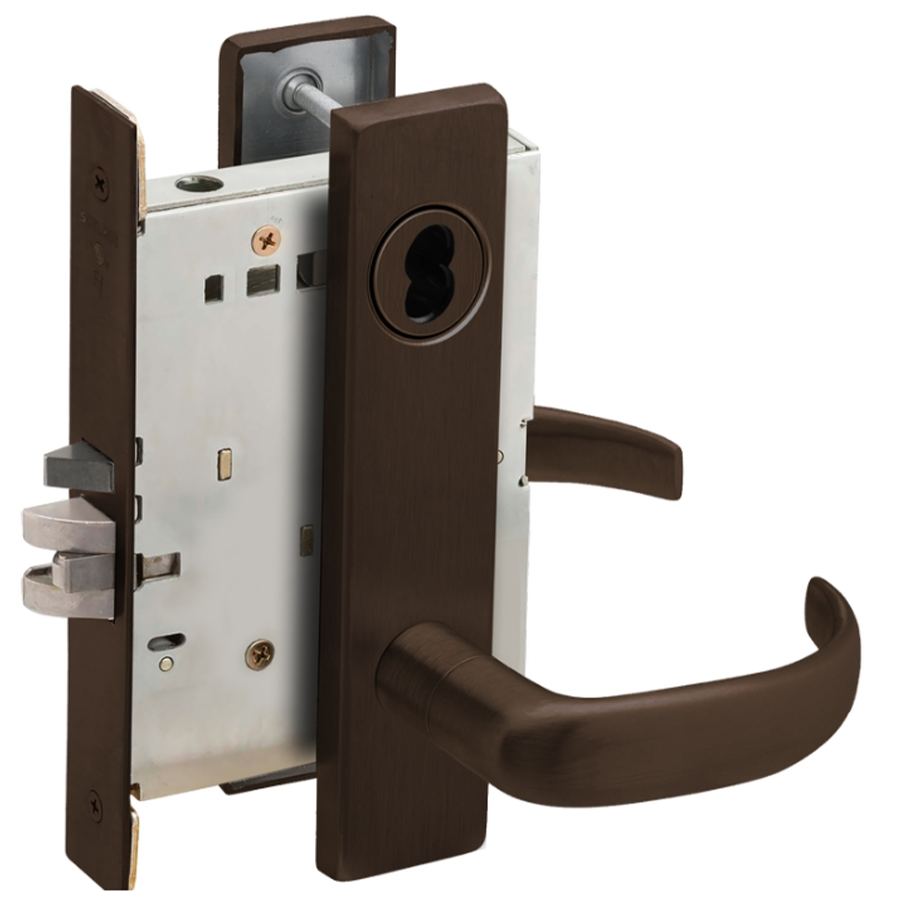

Schlage L9070B 17L 613 L9070BD 17L 613 Lock Mortise Lock

Images may not represent actual product and finish

Schlage L9070B 17L 613 L9070BD 17L 613 Lock Mortise Lock

Your Price: $702.54

Retail Price:$1,391.28

Your Savings:$688.74(50%)

Classroom Mortise Lock, 17L Design, SFIC Prep, Less Core, Oil Rubbed Bronze

Part Number

: SCH_L9070B17L613

Availability: 16777778 In Stock

Quantity

Description

Schlage L9070B 17L 613 L9070BD 17L 613 Lock Mortise Lock

Schlage L-Series Extra Heavy Duty Mortise Locks are built to withstand the rigors of daily use without fail. Our L9000 Series locks are ideal for use in schools, hospitals and factories, where the finest hardware must also deliver consistent, dependable operation and stand up to constant use and abuse. We pay attention to these details so you can focus on creating a functional and aesthetically pleasing environment for your clients. In fact, every one of our L-Series locks meets ANSI Grade 1 standards for safety. A multitude of functions, finishes and trim designs are available to meet virtually every security and aesthetic requirement.

Tested and certified to ANSI/BHMA grade 1 operational and security standards
UL listed for 3-hour fire door; spring-loaded fusible link inside lock case provides fail secure mode in case of fire
Deadbolt features include anti-saw pin in bolt to prevent cut-through
Security blocking hub prevents lock access by removing levers
Vandlgard option allows the outside lever to rotate freely down to prevent damage from excessive force while in a locked state
Lock monitoring options include request to exit (RX), latchbolt (LX), door position (DPS), and deadbolt (DM) (availability varies by function)
Patented Everest 29 S123 keyway is provided standard which prohibits unauthorized key duplication
Restricted geographically exclusive Primus upgraded security options offer advanced key control and exceptional physical security
Two piece anti-friction tongue in latch bolt reduces wear
Breakaway spindle keeps door secured in the event of vandalism
Field reversible latch bolt allows handing change without opening case
Every Schlage lock undergoes intensive testing to determine its ANSI grade level including: cycle, resistance, door impact, warped door and bolt strength tests

Product Assemble-to-Order. Lead Time 2-5 days

Attributes

Ship via: Can Ship UPS

Alternate Codes: L9070B17L613, SCHL9070B17L613

Ansi Function: F05 - Classroom

Baa Qualified: Yes

Backset: 2-3/4"

Bolt Protection: 3/4"

Category: Lock Sets, Mortise Lock Sets, Mortise Locks

Country of Origin: Mexico

Cylinder Type: SFIC Prep Less Core

Door Application: Mortise Electric, Mortise Lock Body, Mortise Lock Sets

Door Thickness: 1-3/4"

Dust Box: Plastic

Finish: 613/US10B

Finish Code: 613

Finish Color: Dark Bronze Anodized, Dark Bronze/Clear Coat, Dark Brown, Dark Oxidized Satin Bronze, Oil Rubbed Bronze

Finish Description: Dark Oxidized Satin Bronze Oil Rubbed

Fire Rated: 3 Hours {A}

Function: 9070-Classroom Lock

Grade: Grade 1

Hand: Field Reversible

Lever Design: 17

Lever Knob Design: 17 - Lever

Limited Warranty: 3 Years

Lock Category: Mortise Lockset - Latch Only

Lock Face Size: 8" x 1-1/4"

Restrictions: None

Rose Escutcheon Design: L - Escutcheon

Rose/ Escutcheon: L Escutcheon

Screws: Combination

Series: L Series

Strike Height: 4-7/8"

Strike Number: 10-072

Strike Type: ASA

Strike Width: 1-1/4"

Subtype: Mortise Lock

Type: Locks, Cylinders, Cores, Keyblanks

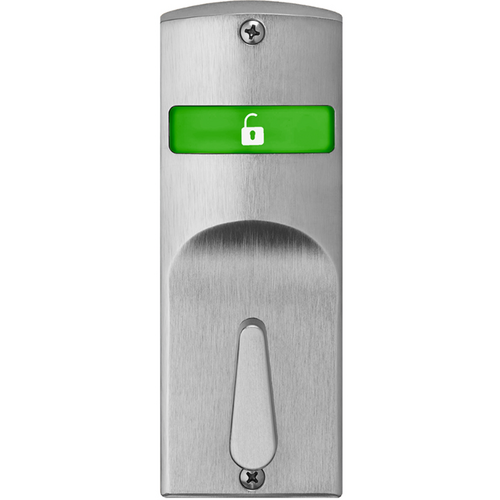

Sargent SA194-RH-V01-26D Inside Indicator Kit for Thumbturns, V01 Locked/Unlocked, Green/Red
