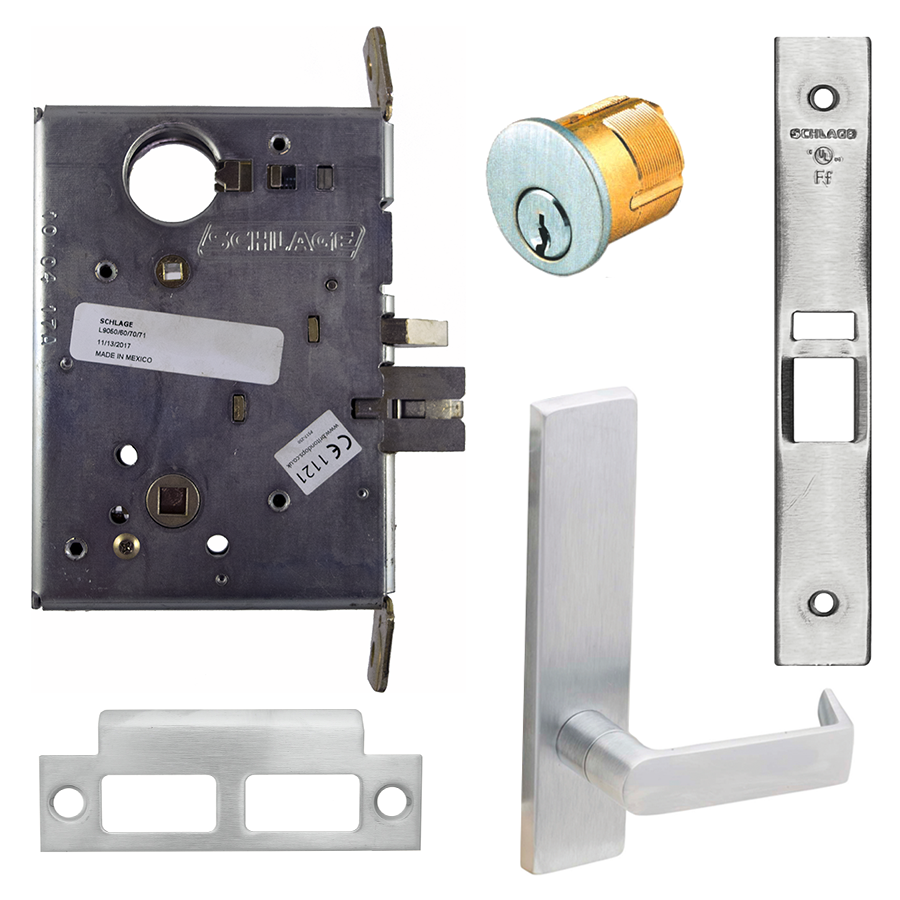

Schlage Commercial L9070P06L626 Classroom Mortise Lock offers a robust security solution tailored for educational and institutional environments. This lock features a classroom function, allowing the latchbolt to be retracted from either side while providing key access from the outside. The inside always remains free for immediate exit, ensuring safety and compliance with fire codes. Constructed to meet ANSI/BHMA Certified A156.13-2012 standards, this mortise lock is classified as Commercial Grade 1, making it a reliable choice for high-traffic areas. Its satin chrome finish not only enhances durability but also adds a sleek aesthetic to any door. The lock is designed for 1-3/4" thick doors and includes a reversible handing feature for versatile installation. With a 2-3/4" backset and a 6-pin C keyway, the L9070P06L626 provides enhanced security and ease of access. It is UL Listed for 3-hour fire doors, ensuring it meets stringent safety regulations. The lock body is crafted from zinc base material, and it includes an ANSI strike with a dimension of 4-7/8" and a 1-1/4" lip, making it compatible with standard door preparations. Backed by a limited 10-year mechanical warranty, the Schlage Commercial L9070P06L626 is a smart investment for any facility prioritizing security and functionality.
For more than 90 years, Schlage has been creating the strongest and most technologically advanced security products for homes, multi-family, commercial, and institutional buildings. We have been meticulous designers, painstaking engineers, and proud craftsmen. From durable mechanical locks to comprehensive electronic access control solutions and biometrics, Schlage provides protection at critical moments–when property and personal security are at stake. In homes, public buildings, and the workplace, at the end of the day, Schlage stands for one thing: strong.
Attributes
Alternate Codes: 124695, 168978, L9070P06L626
Ansi: A156.13-2017 Series 1000
Ansi Function: F05 - Classroom
Baa Qualified: Yes
Backset: 2-3/4" Backset
Bolt Projection: 3/4" Latch
Bolt Protection: 3/4"
Burglar Rated: No
Cam Number: L583-254
Cam Type: Schlage L
Category: Mechanical Commercial Locksets
Commercial Residential: Commercial
Country of Origin: Mexico
Country of origin: Mexico
Cylinder Included: Yes
Cylinder Length: 1-1/8"
Cylinder Type: 6-Pin Cylinder
Design: 06 Lever and L Escutcheon
Dimension: 1-3/4" x 7-15/16" Escutcheon with 4-5/8" Lever and 2-1/2" Projection
Door Application: Mortise Electric, Mortise Lock Body, Mortise Lock Sets
Door Bore Size: 2-1/8"
Door Range: 1-3/4"
Door Thickness: 1-3/4"
Door Thickness Min: 1-3/4"
Dust Box: Plastic
Finish: Satin Chrome
Finish Code: 626
Finish Color: Satin Chrome
Finish Description: Satin Chrome
Finish Family: Matte Silver
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Function: 9070-Classroom Lock
Function Family: Classroom
Grade: Grade 1
Hand: Field Reversible
Handing: Reversible
Hazardous Material: NO
Installation: Commercial
Keying: Keyed Different
Keys: Cut
Keyway: S123
Knob/ Lever Design: 06
Knob/ Lever Style: Lever
Latch Backset Dim: 2-3/4"
Latch Bolt Face Type: Square Corner
Latch Bolt Faceplate Size: 8" x 1-1/4"
Latch Bolt Throw: 3/4"
Latch Bolt Type: Deadlatch
Latch Faceplate Dimension: 1-1/4" x 8"
Latch Type: Dead Latch (Guarded)
Lever Design: 6
Lever Knob Design: 06 - Lever
Lever Knob Design Family: Straight Return Lever
Leverknob Design: 06 Lever
Leverknob Design Family: Straight Return Lever
Limited Warranty: 3 Years
Lock Category: Mortise Lock
Lock Face Size: 8" x 1-1/4"
Manufacturer Function Description: Latchbolt retracted by knob/lever from either side unless outside is locked by key. Unlocked from outside by key. Inside knob/lever always free for immediate exit. Auxiliary latch deadlocks latchbolt when door is locked. Inside knob/lever is always free for immediate egress.
Manufacturer Warranty: Limited 10 Year Mechanical and 3 Year Electro Mechanical Warranty
Material: Zinc Base
No Of Inners: 1
No Of Pins: 6 Pin Keyway
Num Of Keys: 2
Num Pins: 6
Of Keys: 2
Order_ Qty: 1
Origin: Mexico
Pack Height: 5.63"
Pack Height 2: 5.63"
Pack Length: 10.38"
Pack Length 2: 10.38"
Pack Qty: 1
Pack Volume: 313.68 in³
Pack Volume 2: 313.68 in³
Pack Width: 5.38"
Pack Width 2: 5.38"
Pins: 6
Pocket Dimensions: 6-5/8" x 4-1/2"
Projection: 2-1/2"
Restricted Keyway: No
Rose Escutcheon Design: L - Escutcheon
Rose Escutcheon Dimensions: 8" x 1-3/4" x 7/16"
Rose/ Escutcheon: L Escutcheon
Rose/ Escutcheon Size: 7-15/16" x 1-3/4"
Rose/ Escutcheon Style: Escutcheon
Roseescutcheon Design: L Escutcheon
Roseescutcheon Dimensions: 8" x 1-3/4" x 7/16"
Screws: Combination
Series: L Series
Ship Weight: 6.3 lbs.
Std Keyway: S123
Std Latch Backset Dim: 2-3/4"
Std Latch Type: Dead Latch (Guarded)
Std Strike Height: 4-7/8"
Std Strike Number: 10-072 1316 626
Std Strike Type: ANSI Strike
Std Strike Width: 1-3/16"
Strike: ANSI Strike
Strike Dimension: 4-7/8" with 1-1/4" Lip
Strike Height: 4-7/8"
Strike Number: 10-072
Strike Size: 4-7/8" x 1-1/4"
Strike Type: ASA
Strike Width: 1-1/4"
Subcategory: Mortise Locksets
Subtype: Mortise Lock
Supplier: Schlage
Type: LOCK SETS
Ul Listing: UL Listed
Ul Listing Type: UL Listed for 3 Hour Fire Door
Unit of Measure: Each
Unit of Measure 2: Case
Unit of Measure 2 Qty: 6
