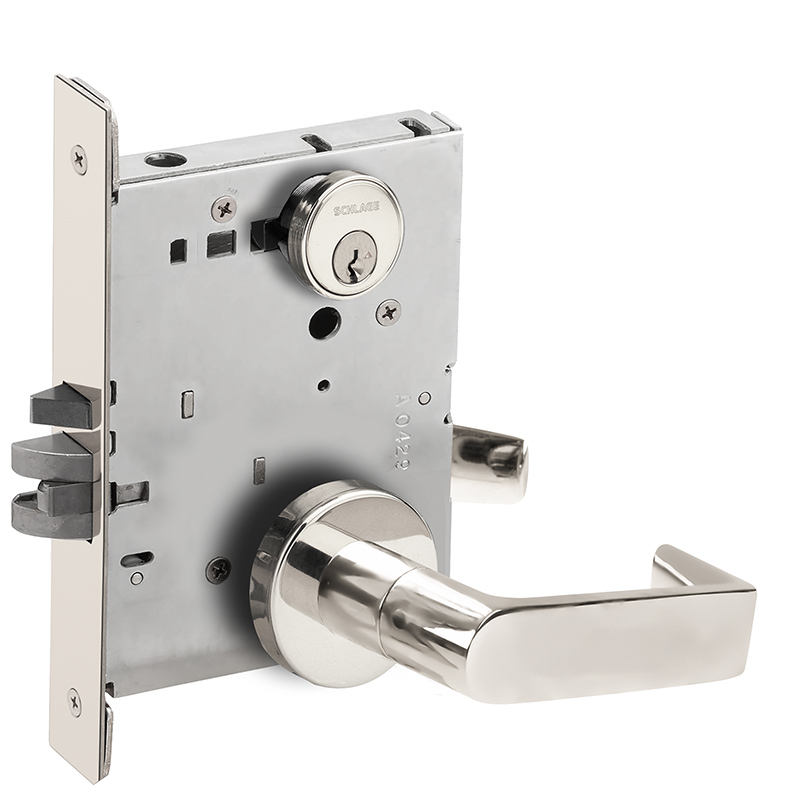

Schlage Commercial L9071P06A625 Classroom Security Mortise Lock offers robust security tailored for educational environments. Designed with a C keyway, this mechanical lockset ensures reliable access control while maintaining ease of use. The bright chrome finish not only enhances its aesthetic appeal but also provides durability against wear and tear. Constructed with a zinc base, the L9071P boasts a reversible handing feature, making it adaptable for various door configurations. It is compatible with doors ranging from 1-3/4" thick and includes a 2-3/4" backset, ensuring a secure fit. The 06 lever design paired with an A rose offers a modern touch, while the 2-1/8" rose and 4-5/8" lever dimensions provide ample functionality. This lockset is UL Listed for 3-hour fire doors, ensuring compliance with safety regulations. Additionally, it features a 1-1/4" x 8" latch faceplate and comes with an ANSI strike measuring 4-7/8" with a 1-1/4" lip, enhancing its overall installation versatility. With a 3-year limited mechanical warranty and a 1-year limited electromechanical warranty, the Schlage L9071P is a reliable choice for those seeking a balance of security, style, and performance in their architectural hardware.
Attributes
Ansi: A156.13-2017 Series 1000
Ansi Function: F32 - Classroom Security
Baa Qualified: Yes
Backset: 2-3/4" Backset
Bolt Projection: 3/4" Latch
Bolt Protection: 3/4"
Cam Type: Schlage L
Category: Mechanical Commercial Locksets
Commercial Residential: Commercial
Country of Origin: Mexico
Country of origin: Mexico
Cylinder Length: 1-1/8"
Cylinder Type: Conventional Cylinder
Design: 06 Lever and A Rose
Dimension: 2-1/8" Rose with 4-5/8" Lever and 2-1/2" Projection
Door Range: 1-3/4"
Door Thickness: 1-3/4"
Dust Box: Plastic
Finish: Bright Chrome
Finish Code: 625
Finish Description: Bright Chrome
Finish Family: Polished Silver
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Function: 9071-Classroom Security Lock
Function Family: Classroom Security
Grade: Grade 1
Hand: Field Reversible
Handing: Reversible
Hazardous Material: NO
Installation: Commercial
Keying: Keyed Different
Keys: Cut
Keyway: S123
Latch Backset Dim: 2-3/4"
Latch Faceplate Dimension: 1-1/4" x 8"
Latch Type: Dead Latch (Guarded)
Lever Knob Design: 06 - Lever
Lever Knob Design Family: Straight Return Lever
Leverknob Design: 06 Lever
Leverknob Design Family: Straight Return Lever
Limited Warranty: 3 Years
Lock Face Size: 8" x 1-1/4"
Manufacturer Function Description: Latchbolt retracted by lever either side except when outside lever is locked by key from inside or outside. When outside lever is locked latchbolt is retracted by key either side or by inside lever. Auxiliary deadlatch.
Manufacturer Warranty: 3 Year Limited Mechanical Warranty and 1-Year Limited Electromechanical Warranty
Material: Zinc Base
No Of Inners: 1
No Of Pins: 6 Pin Keyway
Num Of Keys: 2
Num Pins: 6
Of Keys: 2
Order_ Qty: 1
Origin: Mexico
Pack Height: 5.63"
Pack Height 2: 5.63"
Pack Length: 10.38"
Pack Length 2: 10.38"
Pack Qty: 1
Pack Volume: 313.68 in³
Pack Volume 2: 313.68 in³
Pack Width: 5.38"
Pack Width 2: 5.38"
Pins: 6
Projection: 2-1/2"
Rose Escutcheon Design: A - Rose
Rose Escutcheon Dimensions: 2-1/8"
Roseescutcheon Design: A Rose
Roseescutcheon Dimensions: 2-1/8"
Screws: Combination
Series: L Series
Ship Weight: 6.3 lbs.
Std Keyway: S123
Std Latch Backset Dim: 2-3/4"
Std Latch Type: Dead Latch (Guarded)
Std Strike Height: 4-7/8"
Std Strike Number: 10-072 1316 625
Std Strike Type: ANSI Strike
Std Strike Width: 1-3/16"
Strike: ANSI Strike
Strike Dimension: 4-7/8" with 1-1/4" Lip
Strike Height: 4-7/8"
Strike Number: 10-072
Strike Type: ASA
Strike Width: 1-1/4"
Subcategory: Mortise Locksets
Subtype: Mortise Lock
Type: Locks, Cylinders, Cores, Keyblanks
Ul Listing: UL Listed
Ul Listing Type: UL Listed for 3 Hour Fire Door
Unit of Measure: Each
Unit of Measure 2: Case
Unit of Measure 2 Qty: 6
