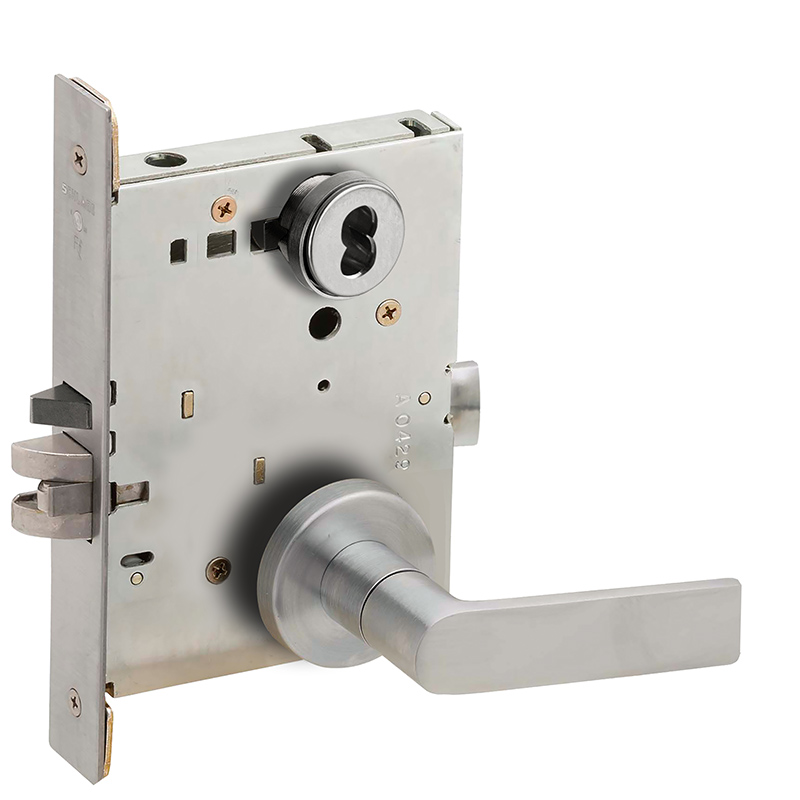

Schlage Commercial L9080B01A626 Storeroom Mortise Lock with Small Format IC Less Core offers a robust solution for securing storeroom entries. Featuring a sleek satin chrome finish, this lock not only enhances the aesthetic of any door but also ensures durability and resistance to wear over time. Designed for a 2-3/4" backset, the L9080B01A626 is perfect for high-traffic areas where security is paramount. The 2-1/8" rose and 3-7/8" lever provide an ergonomic grip, while the 2-11/16" projection maintains a streamlined profile. This storeroom function lock is ideal for spaces requiring restricted access, allowing entry only from the outside while remaining operable from the inside. The reversible handing feature offers flexibility in installation, catering to various door orientations. Additionally, it is compatible with ANSI strike specifications, ensuring a secure fit with standard door frames. The Small Format IC Less Core design allows for easy rekeying, making it a practical choice for facilities with changing access needs. With the Schlage Commercial L9080B01A626, building professionals and knowledgeable homeowners can trust in a reliable and stylish door locking solution that prioritizes security and functionality.
Attributes
Ansi Function: F07 - Storeroom/Exit
Baa Qualified: Yes
Backset: 2-3/4" Backset
Base Material: Brass or Bronze
Bolt Projection: 3/4"
Bolt Protection: 3/4"
Cam Number: L583-255
Cam Type: Schlage L
Category: Mechanical Commercial Locksets
Country of Origin: Mexico
Country of origin: Mexico
Cylinder Length: 1-3/8"
Cylinder Type: SFIC Prep Less Core
Design: NULL
Dimension: 2-1/8" Rose with 3-7/8" Lever and 2-11/16" Projection
Door Range: 1-3/4"
Door Thickness: 1-3/4"
Dust Box: Plastic
Finish: Satin Chrome
Finish Code: 626
Finish Description: Satin Chrome
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Function: 9080-Storeroom Lock
Function Family: Storeroom
Grade: Grade 1
Hand: Field Reversible
Handing: Reversible
Hazardous Material: NO
Latch Backset Dim: 2-3/4"
Latch Faceplate Dimension: 1-1/4" x 8"
Latch Type: Dead Latch (Guarded)
Lever Knob Design: 01 - Lever
Lever Knob Design Family: Straight Lever
Leverknob Design: 01 Lever
Limited Warranty: 3 Years
Lock Face Size: 8" x 1-1/4"
Manufacturer Function Description: Latchbolt retracted by key outside or by knob/lever inside. Outside knob/lever always inoperative. Auxiliary latch deadlocks latchbolt when door is locked. Inside knob/lever is always free for immediate egress.
Manufacturer Warranty: Limited 10 Year Mechanical and 3 Year Electro Mechanical Warranty
Material: Zinc Base
No Of Inners: 1
Num Pins: 6 to 7
Order_ Qty: 1
Origin: Mexico
Pack Height: 5.63"
Pack Height 2: 5.63"
Pack Length: 10.38"
Pack Length 2: 10.38"
Pack Qty: 1
Pack Volume: 313.68 in³
Pack Volume 2: 313.68 in³
Pack Width: 5.38"
Pack Width 2: 5.38"
Projection: 2.668"
Rose Escutcheon Design: A - Rose
Rose Escutcheon Dimensions: 2-1/8"
Roseescutcheon Design: A Rose
Screws: Combination
Series: L Series
Ship Weight: 6.3 lbs.
Std Strike Height: 4-7/8"
Std Strike Number: 10-072
Std Strike Type: ASA
Std Strike Width: 1-1/4"
Strike: ANSI Strike
Strike Dimension: 4-7/8" with 1-1/4" Lip
Strike Height: 4-7/8"
Strike Number: 10-072
Strike Type: ASA
Strike Width: 1-1/4"
Subcategory: Mortise Locksets
Subtype: Mortise Lock
Type: Locks, Cylinders, Cores, Keyblanks
Ul Listing Type: UL Listed for 3 Hour Fire Door
Unit of Measure: Each
Unit of Measure 2: Case
Unit of Measure 2 Qty: 6
