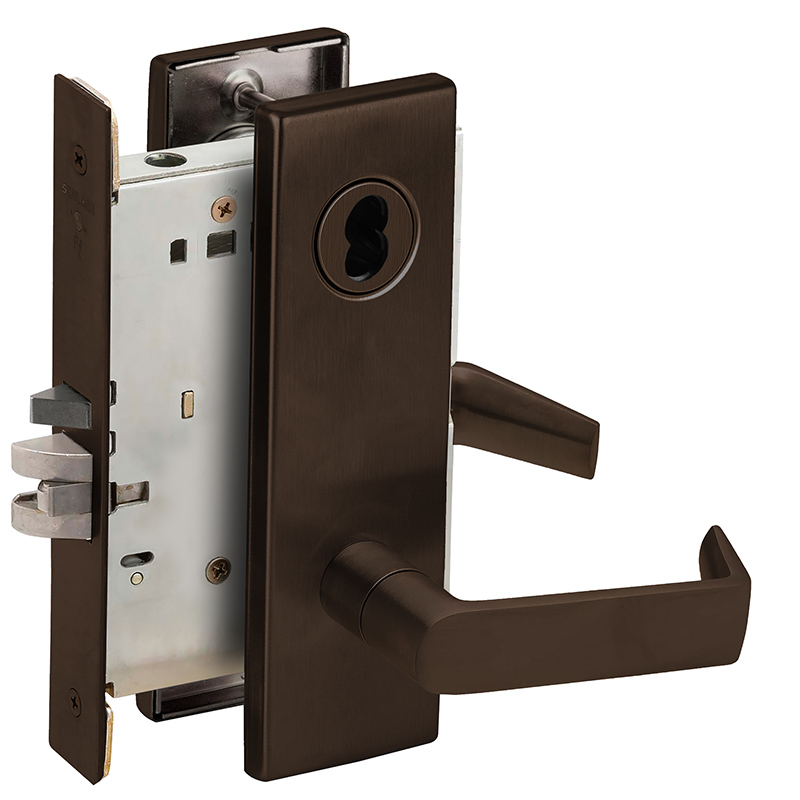

Schlage L-Series Extra Heavy Duty Mortise Locks are built to withstand the rigors of daily use without fail. Our L9000 Series locks are ideal for use in schools, hospitals and factories, where the finest hardware must also deliver consistent, dependable operation and stand up to constant use and abuse. We pay attention to these details so you can focus on creating a functional and aesthetically pleasing environment for your clients. In fact, every one of our L-Series locks meets ANSI Grade 1 standards for safety. A multitude of functions, finishes and trim designs are available to meet virtually every security and aesthetic requirement.
Attributes
Ship via: Can Ship UPS
Alternate Codes: L9080B06N613
Ansi Function: F07 - Storeroom/Exit
Baa Qualified: Yes
Backset: 2-3/4"
Bolt Protection: 3/4"
Cam Number: L583-255
Cam Type: Schlage L
Category: Lock Sets, Mortise Locks, Mortise Lock Sets
Country of Origin: Mexico
Cylinder Length: 1-3/8"
Cylinder Type: SFIC Prep Less Core
Door Application: Mortise Electric, Mortise Lock Body, Mortise Lock Sets
Door Thickness: 1-3/4"
Dust Box: Plastic
Finish: 613/US10B
Finish Code: 613
Finish Color: Dark Bronze Anodized, Dark Bronze/Clear Coat, Dark Brown, Dark Oxidized Satin Bronze, Oil Rubbed Bronze
Finish Description: Dark Oxidized Satin Bronze Oil Rubbed
Fire Rated: 3 Hours {A}
Function: 9080-Storeroom Lock
Function Family: Storeroom
Grade: Grade 1
Hand: Field Reversible
Latch Backset Dim: 2-3/4"
Latch Type: Dead Latch (Guarded)
Lever Design: 6
Lever Knob Design: 06 - Lever
Lever Knob Design Family: Straight Return Lever
Limited Warranty: 3 Years
Lock Category: Mortise Lockset - Latch Only
Lock Face Size: 8" x 1-1/4"
Manufacturer Function Description: Latchbolt retracted by key outside or by knob/lever inside. Outside knob/lever always inoperative. Auxiliary latch deadlocks latchbolt when door is locked. Inside knob/lever is always free for immediate egress.
Num Pins: 6 to 7
Pocket Dimensions: 6-5/8" x 4-1/2"
Projection: 2-1/2"
Restrictions: None
Rose Escutcheon Design: N - Escutcheon
Rose Escutcheon Dimensions: 8" x 2-9/16" x 7/16"
Rose/ Escutcheon: N Escutcheon
Screws: Combination
Series: L Series
Strike Height: 4-7/8"
Strike Number: 10-072
Strike Type: ASA
Strike Width: 1-1/4"
Subtype: Mortise Lock
Type: Locks, Cylinders, Cores, Keyblanks
