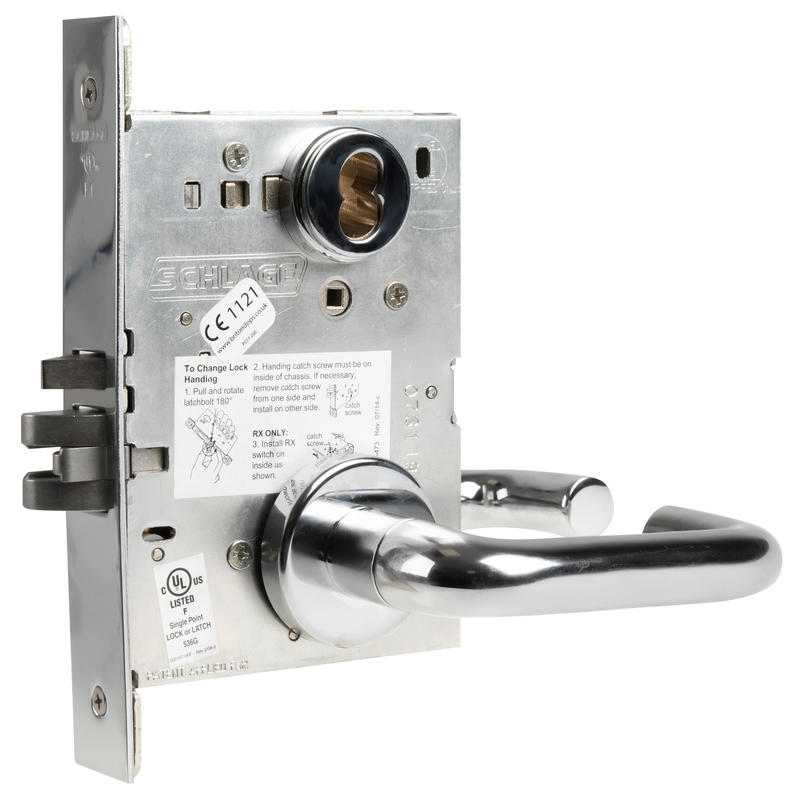

Schlage Commercial L9080J03A625 Storeroom Mortise Lock offers a reliable solution for securing storerooms in both commercial and institutional environments. Designed with a latchbolt that can be retracted using a key from the outside or by the knob/lever from the inside, this lock ensures immediate egress while keeping the outside knob/lever inoperative for added security. Its auxiliary latch deadlocks the latchbolt when the door is locked, providing an extra layer of protection. This lock meets ANSI/BHMI A156.13-2012 certification and is classified as Commercial Grade 1, reassuring users of its durability and performance. The lock body is designed to mortise into the edge of a 1-3/4" thick door, making it suitable for a range of applications. The bright chrome finish not only enhances its aesthetic appeal but also provides resistance to wear and tarnish. Additionally, the Schlage L9080 features a reversible handing, allowing for versatile installation options. It includes a limited 10-year mechanical and a 3-year electro-mechanical warranty, demonstrating confidence in its craftsmanship. With a UL listing for 3-hour fire doors, this lock ensures compliance with safety standards, making it an ideal choice for high-security areas.
For more than 90 years, Schlage has been creating the strongest and most technologically advanced security products for homes, multi-family, commercial, and institutional buildings. We have been meticulous designers, painstaking engineers, and proud craftsmen. From durable mechanical locks to comprehensive electronic access control solutions and biometrics, Schlage provides protection at critical moments–when property and personal security are at stake. In homes, public buildings, and the workplace, at the end of the day, Schlage stands for one thing: strong.
Attributes
Alt Part No: 253782
Ansi: A156.13-2017 Series 1000
Ansi Function: F07 - Storeroom/Exit
Baa Qualified: Yes
Backset: 2-3/4" Backset
Bolt Projection: 3/4" Latch
Bolt Protection: 3/4"
Burglar Rated: No
Cam Number: L583-255
Cam Type: Schlage L
Category: Mechanical Commercial Locksets
Commercial Residential: Commercial
Country of Origin: Mexico
Country of origin: Mexico
Cylinder Length: 1-1/2"
Cylinder Type: Schlage FSIC Less Core
Design: 03 Lever
Dimension: 2-1/8" Rose with 4-3/4" Lever and 2-13/16" Projection
Door Range: 1-3/4"
Door Thickness: 1-3/4"
Dust Box: Plastic
Finish: Bright Chrome
Finish Code: 625
Finish Description: Bright Chrome
Finish Family: Polished Silver
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Function: 9080-Storeroom Lock
Function Family: Storeroom
Grade: Grade 1
Hand: Field Reversible
Handing: Reversible
Hazardous Material: NO
Installation: Commercial
Latch Backset Dim: 2-3/4"
Latch Faceplate Dimension: 1-1/4" x 8"
Latch Type: Dead Latch (Guarded)
Length: 0.0
Lever Knob Design: 03 - Lever
Lever Knob Design Family: Straight Return Lever
Leverknob Design: 03 Lever
Leverknob Design Family: Straight Return Lever
Limited Warranty: 3 Years
Lock Face Size: 8" x 1-1/4"
Manufacturer Function Description: Latchbolt retracted by key outside or by knob/lever inside. Outside knob/lever always inoperative. Auxiliary latch deadlocks latchbolt when door is locked. Inside knob/lever is always free for immediate egress.
Manufacturer Warranty: Limited 10 Year Mechanical and 3 Year Electro Mechanical Warranty
Material: Zinc Base
No Of Inners: 1
Num Pins: 6
Order_ Qty: 1
Origin: Mexico
Pack Height: 5.63"
Pack Height 2: 5.63"
Pack Length: 10.38"
Pack Length 2: 10.38"
Pack Qty: 1
Pack Volume: 313.68 in³
Pack Volume 2: 313.68 in³
Pack Width: 5.38"
Pack Width 2: 5.38"
Pins: 6
Pocket Dimensions: 6-5/8" x 4-1/2"
Projection: 2.813"
Restrictions: None
Rose Escutcheon Design: A - Rose
Rose Escutcheon Dimensions: 2-1/8"
Roseescutcheon Design: A Rose
Roseescutcheon Dimensions: 2-1/8"
Sales Unit: EA
Screws: Combination
Series: L Series
Ship Weight: 6.3 lbs.
Std Latch Backset Dim: 2-3/4"
Std Latch Type: Dead Latch (Guarded)
Std Strike Height: 4-7/8"
Std Strike Number: 10-072 1316 625
Std Strike Type: ANSI Strike
Std Strike Width: 1-3/16"
Strike: ANSI Strike
Strike Dimension: 4-7/8" with 1-1/4" Lip
Strike Height: 4-7/8"
Strike Number: 10-072
Strike Type: ASA
Strike Width: 1-1/4"
Subcategory: Mortise Locksets
Subtype: Mortise Lock
Type: Locks, Cylinders, Cores, Keyblanks
Ul Listing: UL Listed
Ul Listing Type: UL Listed for 3 Hour Fire Door
Unit of Measure: Each
Unit of Measure 2: Case
Unit of Measure 2 Qty: 6
