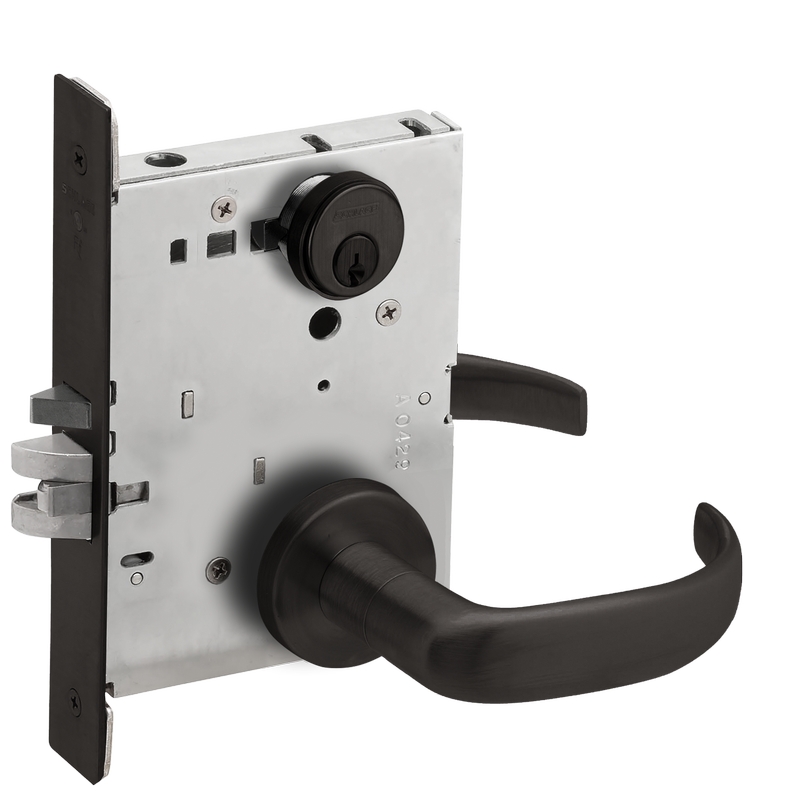

Schlage L-Series Extra Heavy Duty Mortise Locks are built to withstand the rigors of daily use without fail. Our L9000 Series locks are ideal for use in schools, hospitals and factories, where the finest hardware must also deliver consistent, dependable operation and stand up to constant use and abuse. We pay attention to these details so you can focus on creating a functional and aesthetically pleasing environment for your clients. In fact, every one of our L-Series locks meets ANSI Grade 1 standards for safety. A multitude of functions, finishes and trim designs are available to meet virtually every security and aesthetic requirement
Attributes
Alt Part No: 253855
Ansi: A156.13-2017 Series 1000
Ansi Function: F07 - Storeroom/Exit
Baa Qualified: Yes
Backset: 2-3/4" Backset
Bolt Projection: 3/4" Latch
Burglar Rated: No
Cam Number: L583-254
Cam Type: Schlage L
Category: Lock Sets
Commercial Residential: Commercial
Country of Origin: Mexico
Country of origin: Mexico
Cylinder Length: 1-1/8"
Cylinder Type: Conventional Cylinder
Design: 17 Lever
Dimension: 2-1/8" Rose with 4-3/4" Lever and 3" Projection
Door Range: 1-3/4"
Door Thickness: 1.75
Dust Box: K510-066
Finish: Matte Black
Finish Code: 622
Finish Description: Flat Black Coated
Finish Family: Black
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Function: 9080-Storeroom Lock
Function Family: Storeroom
Grade: Grade 1
Handing: Field Reversible
Hazardous Material: NO
Installation: Commercial
Keying: Keyed Different
Keys: Cut
Keyway: C Keyway
Latch Faceplate Dimension: 1-1/4" x 8"
Length: 0.0
Lever Knob Design: 17 - Lever
Leverknob Design: 17 Lever
Leverknob Design Family: Curved Return Lever
Limited Warranty: 3 Years
Lock Face Size: 1.25
Manufacturer Warranty: 3 Year Limited Mechanical Warranty and 1-Year Limited Electromechanical Warranty
Material: Zinc Base
No Of Inners: 1
No Of Pins: 6 Pin Keyway
Num Of Keys: 2
Of Keys: 2
Order_ Qty: 1
Origin: Mexico
Pack Height: 5.63"
Pack Length: 10.38"
Pack Qty: 1
Pack Volume: 313.68 in³
Pack Width: 5.38"
Pins: 6
Pocket Dimensions: 6-5/8" x 4-1/2"
Projection: 3"
Rose Escutcheon Design: A - Rose
Roseescutcheon Design: A Rose
Roseescutcheon Dimensions: 2-1/8"
Sales Unit: EA
Screws: C203-736
Series: L Series
Ship Weight: 6.3 lbs.
Std Keyway: S123
Std Latch Backset Dim: 2-3/4"
Std Latch Type: Dead Latch (Guarded)
Std Strike Height: 4-7/8"
Std Strike Number: 10-072 1316 622
Std Strike Type: ANSI Strike
Std Strike Width: 1-3/16"
Strike: ANSI Strike
Strike Dimension: 4-7/8" with 1-1/4" Lip
Strike Height: 4.875
Strike Number: 10-072
Strike Type: ASA
Strike Width: 1.1875
Subcategory: Mortise Locksets
Subtype: Mortise Lock
Type: Locks, Cylinders, Cores, Keyblanks
Ul Listing: UL Listed
Ul Listing Type: UL Listed for 3 Hour Fire Door
Unit of Measure: Each
Unit of Measure 2: Case
Unit of Measure 2 Qty: 6
