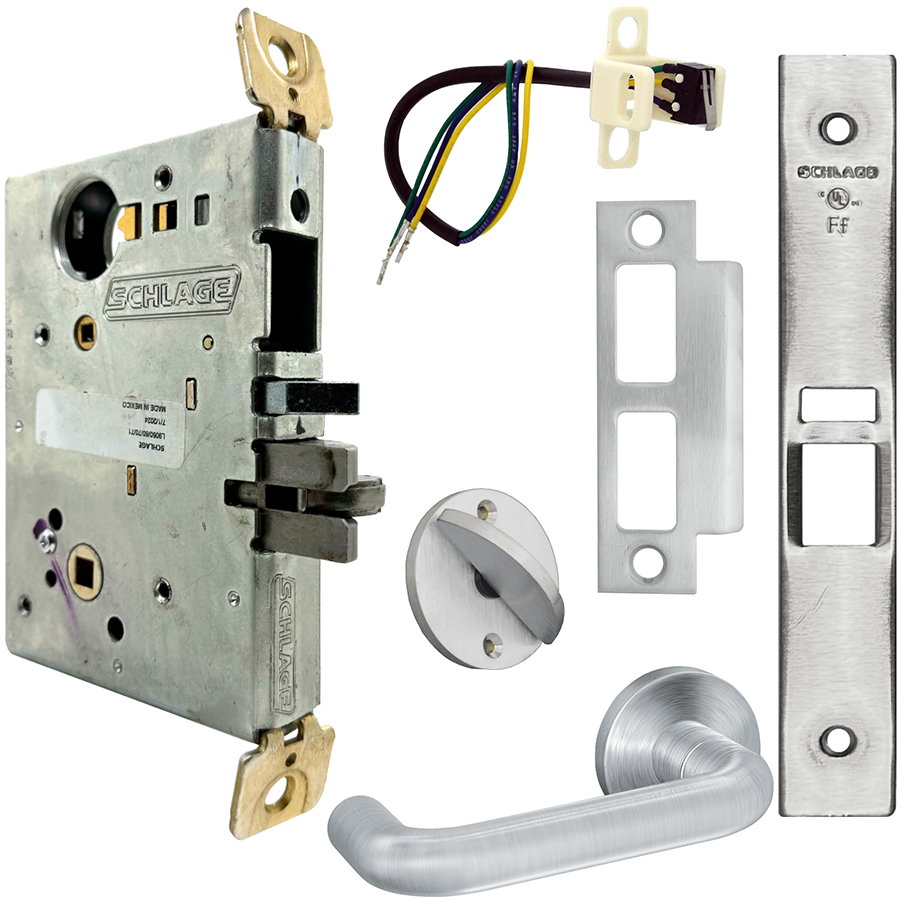

Schlage L9090EU 03A 626 RX Grade 1 Electric NoDB Fail Secure

Schlage L9090EU 03A 626 RX Grade 1 Elec noDB, Fail Sec is an advanced electric mortise lock designed for commercial use, ensuring top-notch security and convenience. This Grade 1 Fail Secure lock features a sleek satin chromium plated finish that not only enhances its durability but also complements modern architectural styles. The non-keyed design and field-reversible handing provide flexibility in installation and operation, making it suitable for various door configurations. With a universal input voltage of 12 or 24VDC, this lock offers user-selectable fail-safe and fail-secure functions, easily adjusted through a simple switch within the lock case. The innovative RX switch monitors the interior lever, balancing high security with user sensitivity, and can be added without the need to open the lock. Designed for doors with a thickness of 1-3/4 inches, the Schlage L9090EU ensures a robust bolt projection of 3/4 inch. Additionally, it features a request-to-exit switch for enhanced access control. Fire-rated for up to 3 hours, this lock is compliant with ADA standards, making it an excellent choice for both safety and accessibility. With a one-year limited warranty, this electric mortise lock combines reliability with cutting-edge technology.

Grade 1 Elec noDB, Fail Sec

Grade 1 Fail Secure Electric Mortise Lock, Non-Keyed, 03 Lever, A Rose, Request to Exit, Satin Chromium Plated Finish, Field Reversible

The Schlage L909x Series is the next generation of electrified mortise lock. The series utilizes the latest technology to offer tremendous utility and flexibility. The universal input voltage will accept 12 or 24VDC and fail safe/fail secure functions are user selectable in the field by flipping a switch in the lock case. The all new RX switch monitors the inside lever with enhanced detection level that balances security with lever sensitivity, and can be added in the field without opening the lock case.
