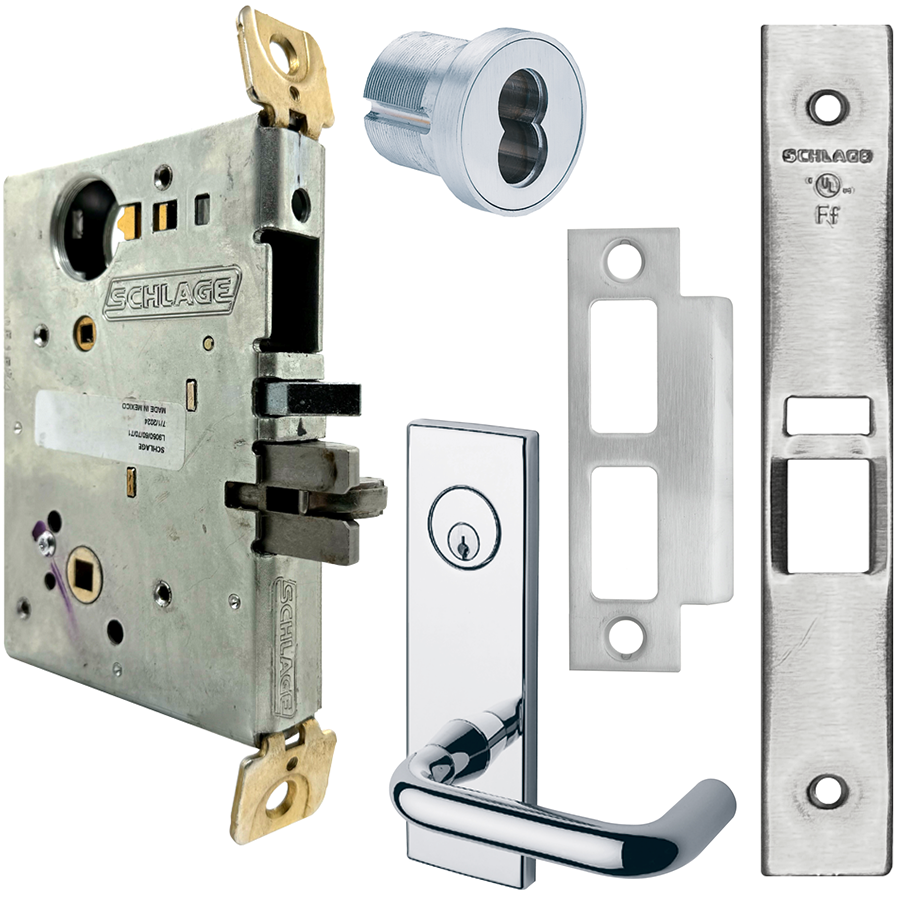

Schlage L9092ELB 03L 626 Grade 1 Electric NoDB Fail Safe Lock

Schlage L9092ELB 03L 626 Grade 1 Electric Mortise Lock offers an exceptional blend of security and convenience for commercial applications. This Grade 1 Fail Safe electric mortise lock features a sleek satin chromium plated finish, enhancing both durability and aesthetics. Designed for ease of use, it is field-reversible and accommodates a door thickness of 1-3/4", making it versatile for various installations. The L9092ELB utilizes universal input voltage, accepting either 12VDC or 24VDC, allowing for straightforward integration into your existing systems. With user-selectable fail safe and fail secure functions, you can easily adjust the lock's operation by flipping a switch within the lock case. The innovative RX switch enhances security by monitoring the inside lever with improved detection sensitivity, ensuring reliable access control while maintaining user comfort. Constructed with a robust brass or bronze base material, this electric lock includes a 3/4" bolt projection for added security. Additionally, the 3-hour fire rating and ADA compliance ensure it meets critical safety standards. Backed by a one-year limited warranty, the Schlage L9092ELB is a reliable choice for professionals seeking an efficient, secure locking solution.

Grade 1 Elec noDB, Fail Safe

Grade 1 Fail Safe Electric Mortise Lock, SFIC Prep Less Core, 03 Lever, L Escutcheon, Satin Chromium Plated Finish, Field Reversible

The Schlage L909x Series is the next generation of electrified mortise lock. The series utilizes the latest technology to offer tremendous utility and flexibility. The universal input voltage will accept 12 or 24VDC and fail safe/fail secure functions are user selectable in the field by flipping a switch in the lock case. The all new RX switch monitors the inside lever with enhanced detection level that balances security with lever sensitivity, and can be added in the field without opening the lock case.
