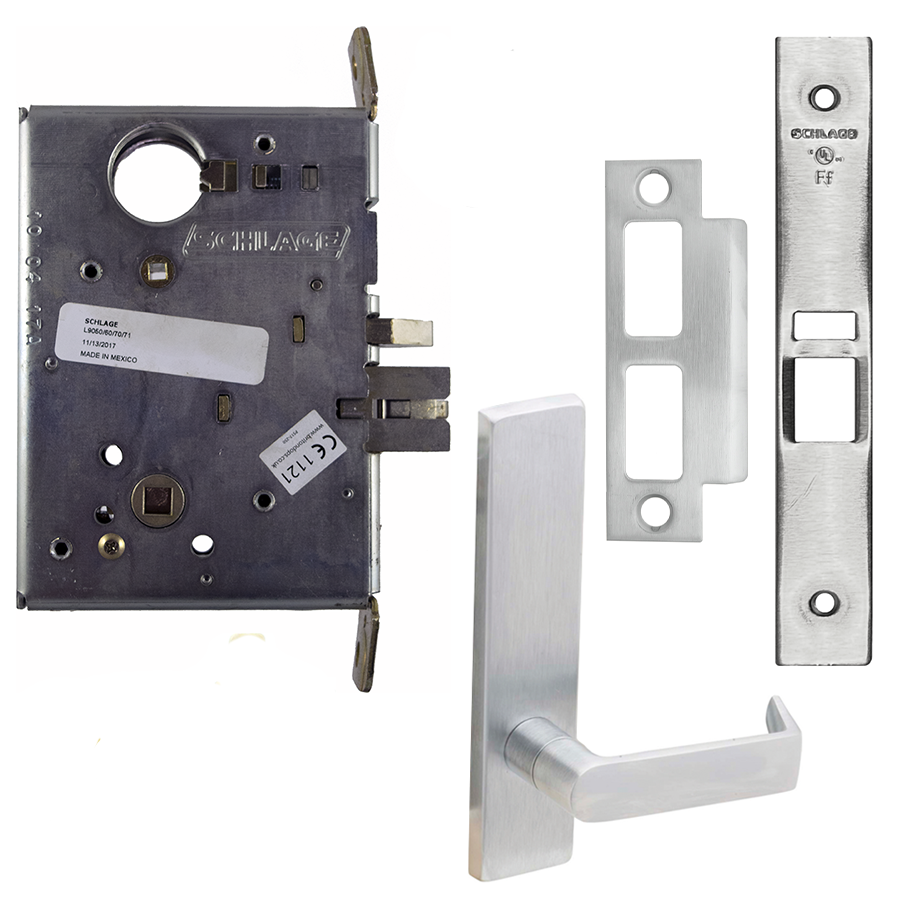

Images may not represent actual product and finish

Schlage L9092EUL 06N 626 Lock Electric Mortise Lock

Your Price: $1,392.51

Retail Price:$1,978.0000

Your Savings:$585.49(30%)

Electrified Mortise Lock, Fail Secure, Outside Lever EU, Outside Cylinder Override, Less Cylinder, 12/24VDC, Satin Chrome

Part Number : SCH_L9092EUL06N626

Availability: 97 In Stock

Quantity

Description

Schlage L9092EUL 06N 626 Lock Electric Mortise Lock

The Schlage L909x Series is the next generation of electrified mortise lock. The series utilizes the latest technology to offer tremendous utility and flexibility. The universal input voltage will accept 12 or 24VDC and fail safe/fail secure functions are user selectable in the field by flipping a switch in the lock case. The all new RX switch monitors the inside lever with enhanced detection level that balances security with lever sensitivity, and can be added in the field without opening the lock case.

Tested and certified to ANSI/BHMA grade 1 operational and security standards
UL listed for 3-hour fire door; spring-loaded fusible link inside lock case provides fail secure mode in case of fire
Deadbolt features include anti-saw pin in bolt to prevent cut-through
Security blocking hub prevents lock access by removing levers
Vandlgard option allows the outside lever to rotate freely down to prevent damage from excessive force while in a locked state
Lock monitoring options include request to exit (RX), latchbolt (LX), door position (DPS), and deadbolt (DM) (availability varies by function)
Patented Everest 29 S123 keyway is provided standard which prohibits unauthorized key duplication
Restricted geographically exclusive Primus upgraded security options offer advanced key control and exceptional physical security
Two piece anti-friction tongue in latch bolt reduces wear
Breakaway spindle keeps door secured in the event of vandalism
Field reversible latch bolt allows handing change without opening case
Every Schlage lock undergoes intensive testing to determine its ANSI grade level including: cycle, resistance, door impact, warped door and bolt strength tests

Attributes

Accessible: Yes

Ada Compliance: Yes

Alternate Codes: L9092EUL06N626

Amp Draw: 400mA

Backset: 2-3/4"

Bolt Projection: 3/4"

Bolt Protection: 3/4 In.

Category: Lock Sets, Mortise Locks, Mortise Lock Sets

Commercial Residential: Commercial

Cylinder Type: Less Cylinder

Door Application: Mortise Electric, Mortise Lock Body, Mortise Lock Sets

Door Thickness: 1-3/4 In.

Dust Box: Plastic

Finish: 626/US26D

Finish Code: 626

Finish Color: Brushed Chrome, Satin Chrome

Finish Description: Satin Chromium Plated

Finish Family: Matte Silver

Fire Rated: 3 Hours {A}

Fire Rating: 3 Hours {A}

Function: 9092EU-Fail Secure

Grade: Grade 1

Hand: Field Reversible

Handing: Field Reversible

Installation: Commercial

Lever Design: 6

Lever Knob Design: 06 - Lever

Leverknob Design: 06 Lever

Limited Warranty: 1 Year

Lock Category: Mortise Lockset - Latch Only

Lock Face Size: 8 In. x 1-1/4 in.

Operating Voltage: 12VDC/24VDC

Pack Qty: 1

Power: Hard Wired

Rose Escutcheon Design: N - Escutcheon

Rose/ Escutcheon: N Escutcheon

Roseescutcheon Design: N Escutcheon

Screws: Combination

Series: L Series

Std Strike Height: 4-7/8"

Std Strike Number: 10-072

Std Strike Type: ASA

Std Strike Width: 1-1/4"

Strike Height: 4-7/8 In.

Strike Number: 10-072

Strike Type: ASA

Strike Width: 1-1/4 In.

Subtype: Electric Mortise Lock

Switch Type: None

Type: Electric Locks

Unit of Measure: Each
