Schlage L9092EUL 17N 613 Lock Electric Mortise Lock

Images may not represent actual product and finish

Schlage L9092EUL 17N 613 Lock Electric Mortise Lock

Your Price: $1,253.84

Retail Price:$1,823.76

Your Savings:$569.92(31%)

Electrified Mortise Lock, Fail Secure, Outside Lever EU, Outside Cylinder Override, Less Cylinder, 12/24VDC, Oil Rubbed Bronze

Part Number

: SCH_L9092EUL17N613

Availability: 5 In stock

Quantity

Description

Schlage L9092EUL 17N 613 Lock Electric Mortise Lock

The Schlage L909x Series is the next generation of electrified mortise lock. The series utilizes the latest technology to offer tremendous utility and flexibility. The universal input voltage will accept 12 or 24VDC and fail safe/fail secure functions are user selectable in the field by flipping a switch in the lock case. The all new RX switch monitors the inside lever with enhanced detection level that balances security with lever sensitivity, and can be added in the field without opening the lock case.

Tested and certified to ANSI/BHMA grade 1 operational and security standards
UL listed for 3-hour fire door; spring-loaded fusible link inside lock case provides fail secure mode in case of fire
Deadbolt features include anti-saw pin in bolt to prevent cut-through
Security blocking hub prevents lock access by removing levers
Vandlgard option allows the outside lever to rotate freely down to prevent damage from excessive force while in a locked state
Lock monitoring options include request to exit (RX), latchbolt (LX), door position (DPS), and deadbolt (DM) (availability varies by function)
Patented Everest 29 S123 keyway is provided standard which prohibits unauthorized key duplication
Restricted geographically exclusive Primus upgraded security options offer advanced key control and exceptional physical security
Two piece anti-friction tongue in latch bolt reduces wear
Breakaway spindle keeps door secured in the event of vandalism
Field reversible latch bolt allows handing change without opening case
Every Schlage lock undergoes intensive testing to determine its ANSI grade level including: cycle, resistance, door impact, warped door and bolt strength tests

Product Assemble-to-Order. Lead Time 2-5 days

Attributes

Ship via: Can Ship UPS

Alternate Codes: L9092EUL17N613

Amp Draw: 400mA

Backset: 2-3/4"

Bolt Protection: 3/4 In.

Category: Lock Sets, Mortise Locks, Mortise Lock Sets

Cylinder Type: Less Cylinder

Door Application: Mortise Electric, Mortise Lock Body, Mortise Lock Sets

Door Thickness: 1-3/4 In.

Dust Box: Plastic

Finish: 613/US10B

Finish Code: 613

Finish Color: Dark Bronze Anodized, Dark Bronze/Clear Coat, Dark Brown, Dark Oxidized Satin Bronze, Oil Rubbed Bronze

Finish Description: Dark Oxidized Satin Bronze Oil Rubbed

Fire Rated: 3 Hours {A}

Function: 9092EU-Fail Secure

Grade: Grade 1

Hand: Field Reversible

Lever Design: 17

Lever Knob Design: 17 - Lever

Limited Warranty: 1 Year

Lock Category: Mortise Lockset - Latch Only

Lock Face Size: 8 In. x 1-1/4 in.

Operating Voltage: 12VDC/24VDC

Power: Hard Wired

Rose Escutcheon Design: N - Escutcheon

Rose/ Escutcheon: N Escutcheon

Screws: Combination

Series: L Series

Strike Height: 4-7/8 In.

Strike Number: 10-072

Strike Type: ASA

Strike Width: 1-1/4 In.

Subtype: Electric Mortise Lock

Switch Type: None

Type: Electric Locks

Resources

Schlage L9480-P-17B-626 IS-LOC L583-363 17B Storeroom Mortise Lock w/ Deadbolt ADA Thumbturn, Satin Chrome

$1,273.47

20 In stock

Buy

Corbin Russwin ML2057 LWM 612 L4 Lustra Lever Mortise Lock Kit, Satin Bronze, Field Reversible, ANSI Strike SS118

$1,161.56

5 In stock

Buy

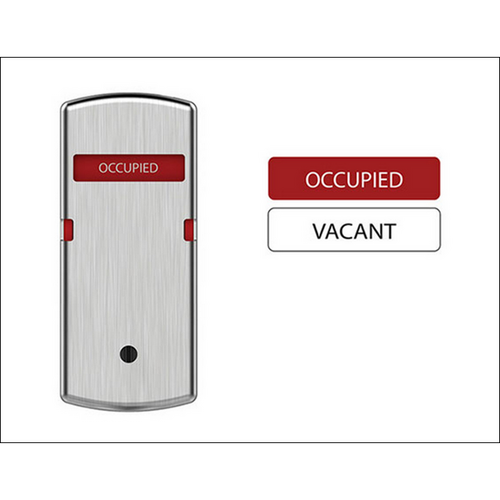

Schlage L9040-03A-626 OS-OCC L583-363 KIT - 03A Privacy Mortise Lock, Occupied/Vacant Indicator, ADA Thumbturn, Satin Chrome
