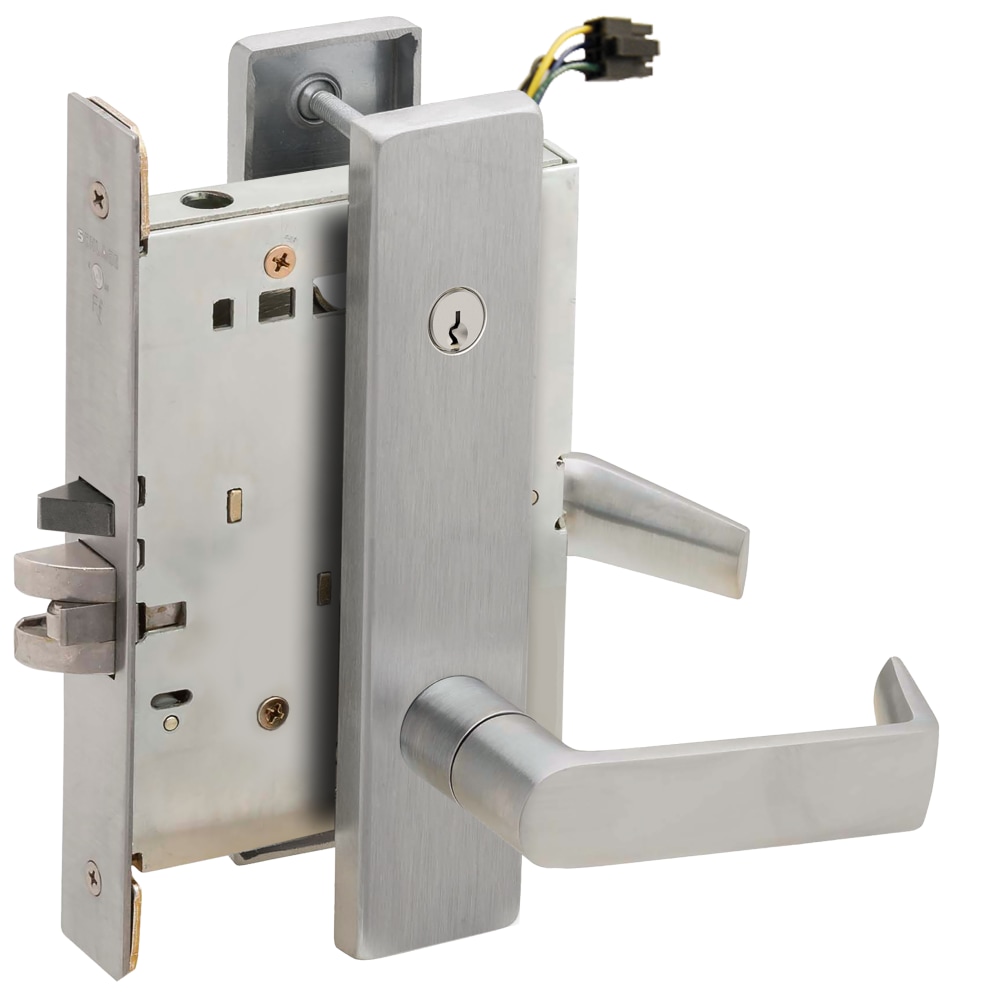

Schlage L9095EUC 06L 626 Grade 1 Electric Both Levers, No DB

Schlage L9095EUC 06L 626 Grade 1 Electric Mortise Lock offers an advanced solution for securing commercial spaces. This Grade 1 electric lock features both sides fail secure functionality, ensuring reliable access control with a dual cylinder override. The concealed cylinder design and S123 keyway provide a sleek appearance while maintaining robust security. Capable of operating on universal input voltages of 12 or 24VDC, this lock is designed for flexibility. The user-selectable fail safe/fail secure functions can be easily adjusted in the field, allowing for tailored security settings to meet your specific needs. Enhanced security is complemented by the innovative RX switch, which accurately monitors the inside lever, balancing sensitivity and security without requiring lock case access for installation. With a satin chrome finish, the Schlage L9095EUC not only meets aesthetic demands but also adheres to commercial standards, including ANSI A156.13-2017. The lock accommodates a door thickness of 1-3/4" and features a durable 3/4" latch for added resilience. Additionally, this model includes a limited one-year warranty, affirming Schlage’s commitment to quality and reliability in door hardware solutions. Transform your entryways with this top-tier electric mortise lock, designed for both functionality and style.

Grade 1 Elec Both Lvrs, noDB

Grade 1 Electric Mortise Lock, Both Sides Fail Secure with Dual Cylinder Override, Concealed Cylinder, S123 Keyway, 06 Lever, L Escutcheon, Satin Chrome Finish, Field Reversible

The Schlage L909x Series is the next generation of electrified mortise lock. The series utilizes the latest technology to offer tremendous utility and flexibility. The universal input voltage will accept 12 or 24VDC and fail safe/fail secure functions are user selectable in the field by flipping a switch in the lock case. The all new RX switch monitors the inside lever with enhanced detection level that balances security with lever sensitivity, and can be added in the field without opening the lock case.
