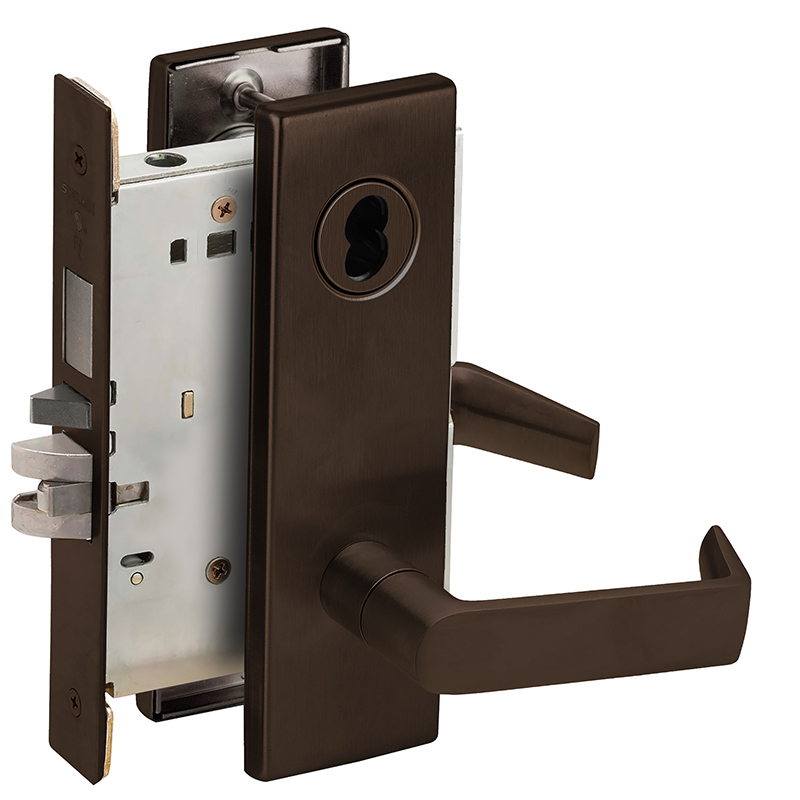

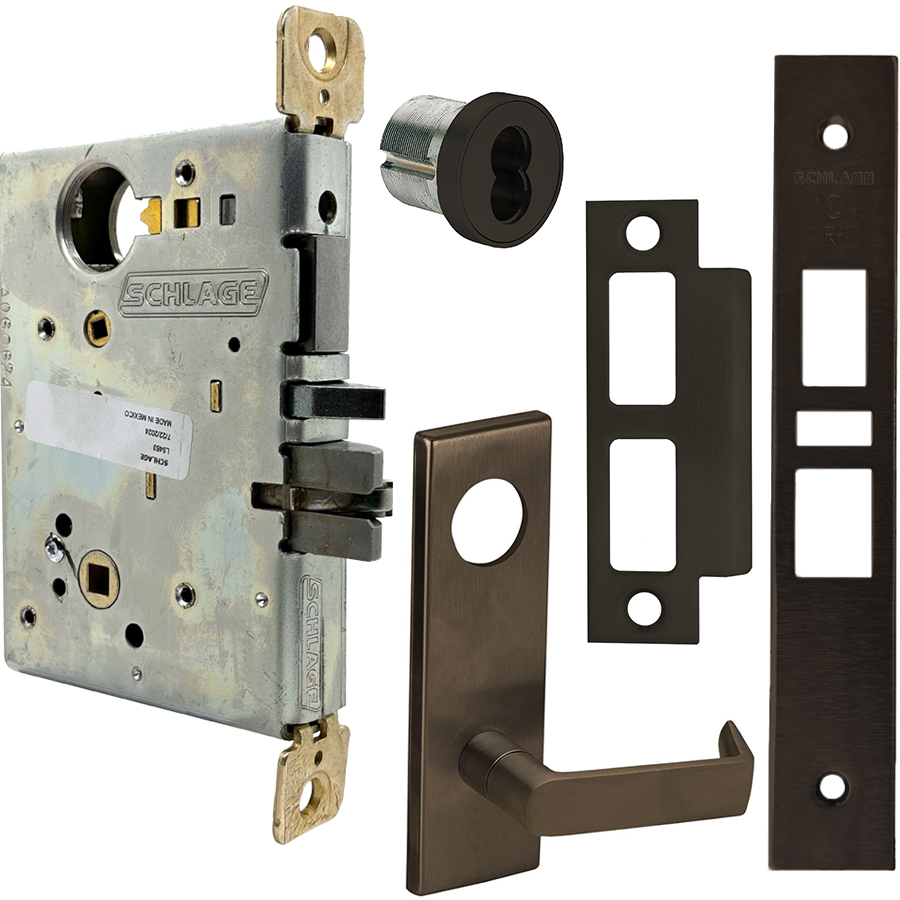

Schlage L-Series Extra Heavy Duty Mortise Locks are built to withstand the rigors of daily use without fail. Our L9000 Series locks are ideal for use in schools, hospitals and factories, where the finest hardware must also deliver consistent, dependable operation and stand up to constant use and abuse. We pay attention to these details so you can focus on creating a functional and aesthetically pleasing environment for your clients. In fact, every one of our L-Series locks meets ANSI Grade 1 standards for safety. A multitude of functions, finishes and trim designs are available to meet virtually every security and aesthetic requirement.
Attributes
Alternate Codes: L9453B06N613
Ansi: A156.13-2017 Series 1000
Ansi Function: F20 - Entry/Office
Baa Qualified: Yes
Backset: 2-3/4"
Base Material: Bronze
Bolt Projection: 3/4" Latch, 1" Deadbolt
Bolt Protection: 3/4" Latch, 1" Deadbolt
Burglar Rated: No
Cam Number: L583-255
Cam Type: Schlage L
Category: Lock Sets, Mortise Locks, Mortise Lock Sets
Commercial Residential: Commercial
Country of Origin: Mexico
Country of origin: Mexico
Cylinder Length: 1-1/4"
Cylinder Type: SFIC Prep Less Core
Door Application: Mortise Electric, Mortise Lock Body, Mortise Lock Sets
Door Thickness: 1-3/4"
Dust Box: Plastic
Finish: 613/US10B
Finish Code: 613
Finish Color: Dark Bronze Anodized, Dark Bronze/Clear Coat, Dark Brown, Dark Oxidized Satin Bronze, Oil Rubbed Bronze
Finish Description: Dark Oxidized Satin Bronze Oil Rubbed
Finish Family: Dark Bronze
Fire Rated: Yes
Fire Rating: 3 Hours {A}
Function: 9453-Entrance Office Lock w Deadbolt
Function Family: Entrance/Office
Grade: Grade 1
Hand: Field Reversible
Handing: Field Reversible
Installation: Commercial
Latch Bore Diameter: 2-3/4"
Lever Design: 6
Lever Knob Design: 06 - Lever
Leverknob Design: 06 Lever
Leverknob Design Family: Straight Return Lever
Limited Warranty: 3 Years
Lock Category: Mortise Lockset - Latch and Deadbolt
Lock Face Size: 8" x 1-1/4"
Origin: Mexico
Pack Height: 5.63"
Pack Height 2: 5.63"
Pack Length: 10.38"
Pack Length 2: 10.38"
Pack Qty: 1
Pack Volume: 313.68 in³
Pack Volume 2: 313.68 in³
Pack Width: 5.38"
Pack Width 2: 5.38"
Pins: 6 to 7
Projection: 2-1/2"
Rose Escutcheon Design: N - Escutcheon
Rose Number: 09-639N 613, 09-633N 613
Rose/ Escutcheon: N Escutcheon
Roseescutcheon Design: N Escutcheon
Roseescutcheon Dimensions: 7-7/8" x 2-1/2" x 7/16"
Screws: Combination
Series: L Series
Ship Weight: 6.3 lbs.
Std Latch Backset Dim: 2-3/4"
Std Latch Number: L283-008, L283-006, L283-004
Std Latch Type: Combination Latch and Bolt
Std Strike Height: 4-7/8"
Std Strike Number: 10-072 1316 613
Std Strike Type: ANSI Strike
Std Strike Width: 1-3/16"
Strike Height: 4-7/8"
Strike Number: 10-072
Strike Type: ASA
Strike Width: 1-1/4"
Subtype: Mortise Lock
Type: Locks, Cylinders, Cores, Keyblanks
Ul Listing: UL Listed
Unit of Measure: Each
Unit of Measure 2: Case
Unit of Measure 2 Qty: 6
