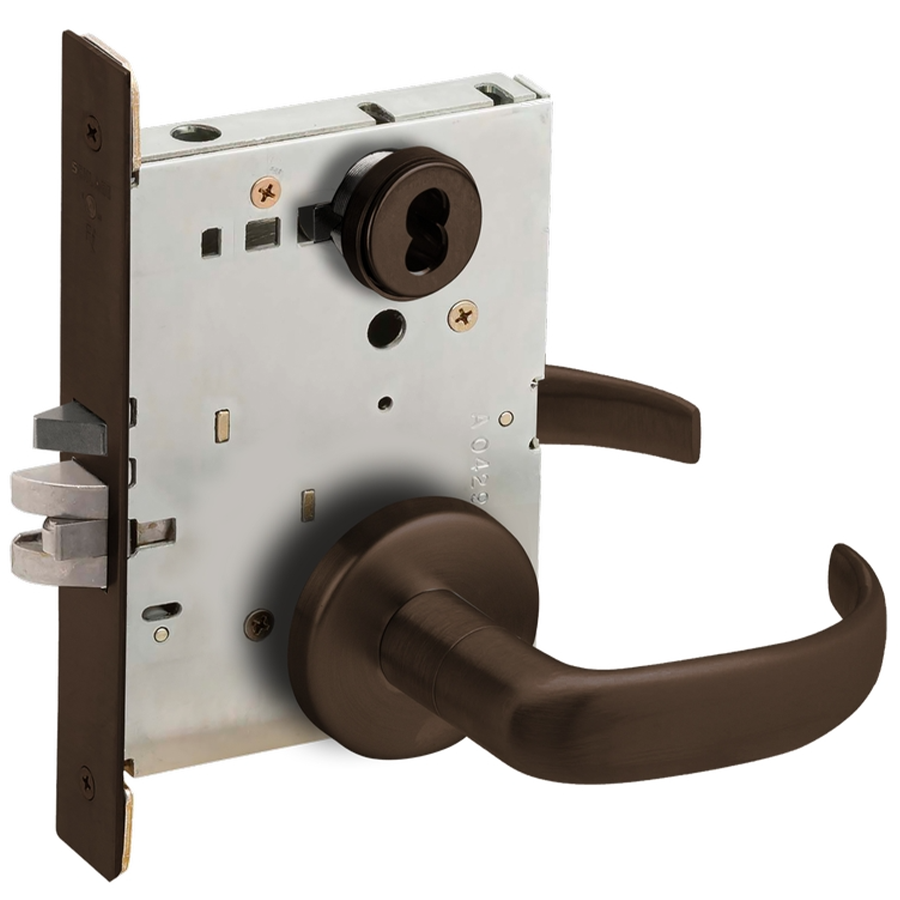

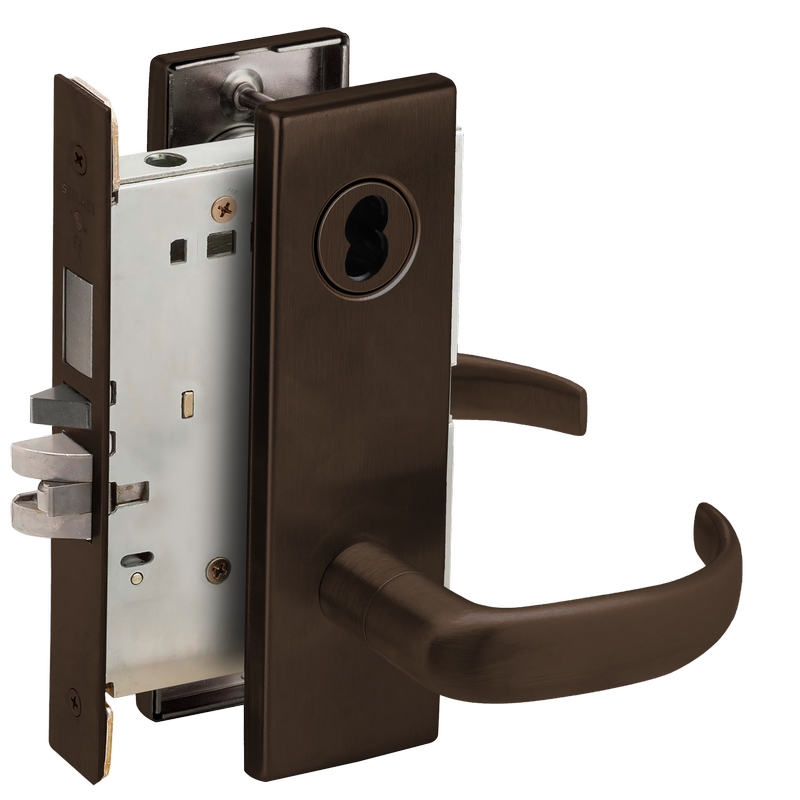

Schlage L9453B 17N 613 L9453BD 17N 613 Lock Mortise Lock

Images may not represent actual product and finish

Schlage L9453B 17N 613 L9453BD 17N 613 Lock Mortise Lock

Your Price: $987.36

Retail Price:$1,436.16

Your Savings:$448.80(31%)

Schlage L-Series, Entrance Mortise Lock, N Decorative Escutcheon, 17 Lever, Grade 1 Mortise Lock, SFIC Prep Less Core, Dark Oxidized Satin Bronze Oil Rubbed

Part Number

: SCH_L9453B17N613

Availability: 1 In stock

Quantity

Description

Schlage L9453B 17N 613 L9453BD 17N 613 Lock Mortise Lock

Schlage L-Series Extra Heavy Duty Mortise Locks are built to withstand the rigors of daily use without fail. Our L9000 Series locks are ideal for use in schools, hospitals and factories, where the finest hardware must also deliver consistent, dependable operation and stand up to constant use and abuse. We pay attention to these details so you can focus on creating a functional and aesthetically pleasing environment for your clients. In fact, every one of our L-Series locks meets ANSI Grade 1 standards for safety. A multitude of functions, finishes and trim designs are available to meet virtually every security and aesthetic requirement.

Tested and certified to ANSI/BHMA grade 1 operational and security standards
UL listed for 3-hour fire door; spring-loaded fusible link inside lock case provides fail secure mode in case of fire
Deadbolt features include anti-saw pin in bolt to prevent cut-through
Security blocking hub prevents lock access by removing levers
Vandlgard option allows the outside lever to rotate freely down to prevent damage from excessive force while in a locked state
Lock monitoring options include request to exit (RX), latchbolt (LX), door position (DPS), and deadbolt (DM) (availability varies by function)
Patented Everest 29 S123 keyway is provided standard which prohibits unauthorized key duplication
Restricted geographically exclusive Primus upgraded security options offer advanced key control and exceptional physical security
Two piece anti-friction tongue in latch bolt reduces wear
Breakaway spindle keeps door secured in the event of vandalism
Field reversible latch bolt allows handing change without opening case
Every Schlage lock undergoes intensive testing to determine its ANSI grade level including: cycle, resistance, door impact, warped door and bolt strength tests

Product Assemble-to-Order. Lead Time 2-5 days

Attributes

Ship via: Can Ship UPS

Alternate Codes: L9453B17N613

Ansi Function: F20 - Entry/Office

Baa Qualified: Yes

Backset: 2-3/4"

Category: Lock Sets, Mortise Locks, Mortise Lock Sets

Country of Origin: Mexico

Cylinder Type: SFIC Prep Less Core

Door Application: Mortise Electric, Mortise Lock Body, Mortise Lock Sets

Door Thickness: 1.75

Dust Box: K510-066

Finish: 613/US10B

Finish Code: 613

Finish Color: Dark Bronze Anodized, Dark Bronze/Clear Coat, Dark Brown, Dark Oxidized Satin Bronze, Oil Rubbed Bronze

Finish Description: Dark Oxidized Satin Bronze Oil Rubbed

Fire Rated: 3 Hours {A}

Function: 9453-Entrance Office Lock w Deadbolt

Grade: Grade 1

Lever Design: 17

Lever Knob Design: 17 - Lever

Limited Warranty: 3 Years

Lock Category: Mortise Lockset - Latch and Deadbolt

Lock Face Size: 1.25

Rose Escutcheon Design: N - Escutcheon

Rose/ Escutcheon: N Escutcheon

Screws: C203-736

Series: L Series

Strike Height: 4.875

Strike Number: 10-072

Strike Type: ASA

Strike Width: 1.1875

Subtype: Mortise Lock

Type: Locks, Cylinders, Cores, Keyblanks
