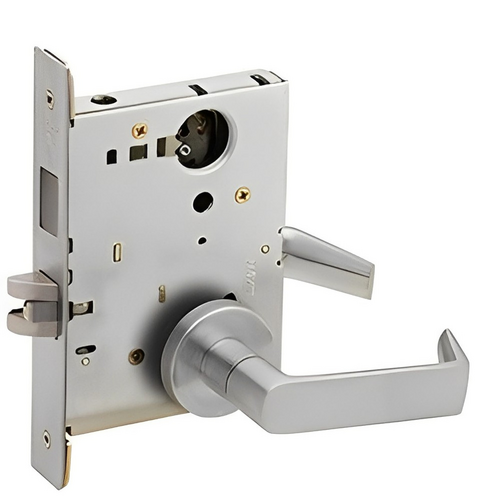

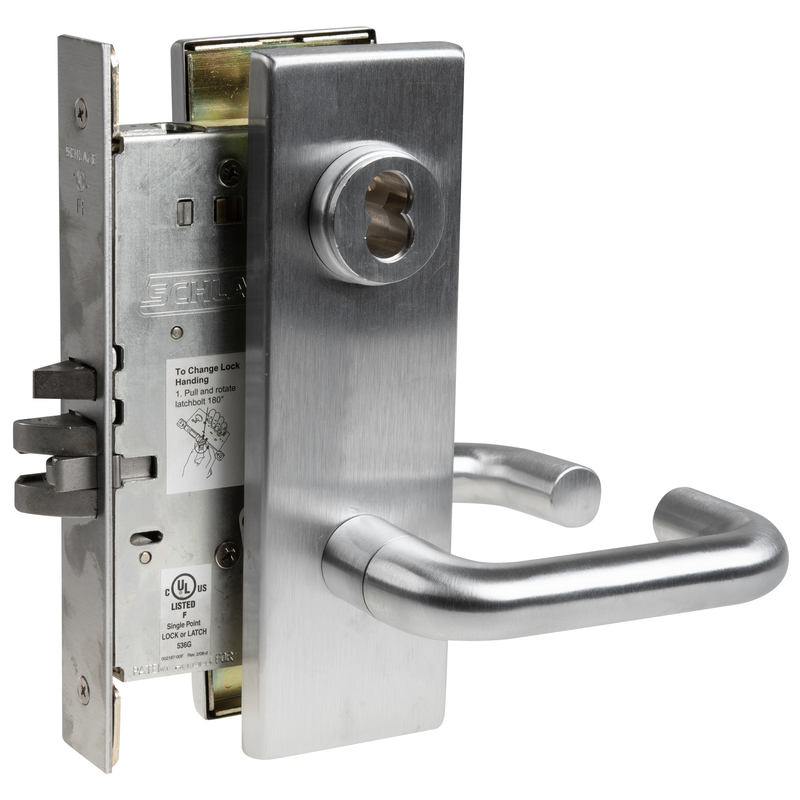

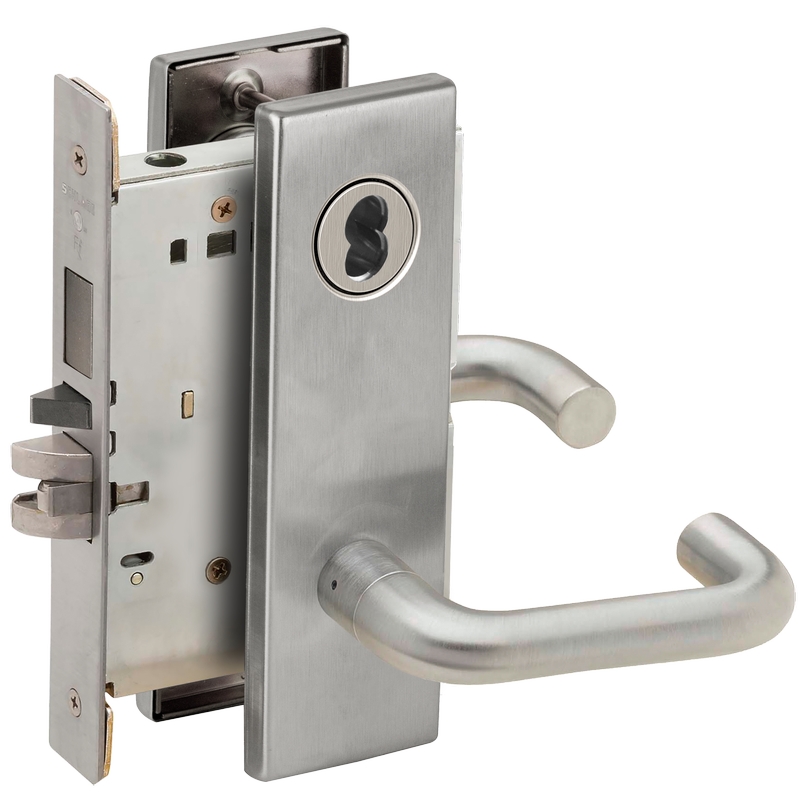

• Entry/Office Lock with Deadbolt, Latchbolt Retracted by Either Side, Locked by 20° Turn, Bolt Thrown by 90° Turn, Key or Handle Retracts Dead and Latchbolt, Locked Until Turn Restored Upright, Auxiliary Deadlocks Latchbolt, Inside Always Free
• ANSI/BHMI Certified A156.13-2012
• Commercial Grade 1
• Lock Body Mortises Inside the Edge of the Door
• UL Listed for 3 Hour Fide Door
• Tested and certified to ANSI/BHMA grade 1 operational and security standards
• UL listed for 3-hour fire door; spring-loaded fusible link inside lock case provides fail secure mode in case of fire
• Deadbolt features include anti-saw pin in bolt to prevent cut-through
• Security blocking hub prevents lock access by removing levers
• Vandlgard option allows the outside lever to rotate freely down to prevent damage from excessive force while in a locked state
• Lock monitoring options include request to exit (RX), latchbolt (LX), door position (DPS), and deadbolt (DM) (availability varies by function)
• Patented Everest 29 S123 keyway is provided standard which prohibits unauthorized key duplication
• Restricted geographically exclusive Primus upgraded security options offer advanced key control and exceptional physical security
• Two piece anti-friction tongue in latch bolt reduces wear
• Breakaway spindle keeps door secured in the event of vandalism
• Field reversible latch bolt allows handing change without opening case
• Every Schlage lock undergoes intensive testing to determine its ANSI grade level including: cycle, resistance, door impact, warped door and bolt strength tests

Product Assemble-to-Order. Lead Time 2-5 days
