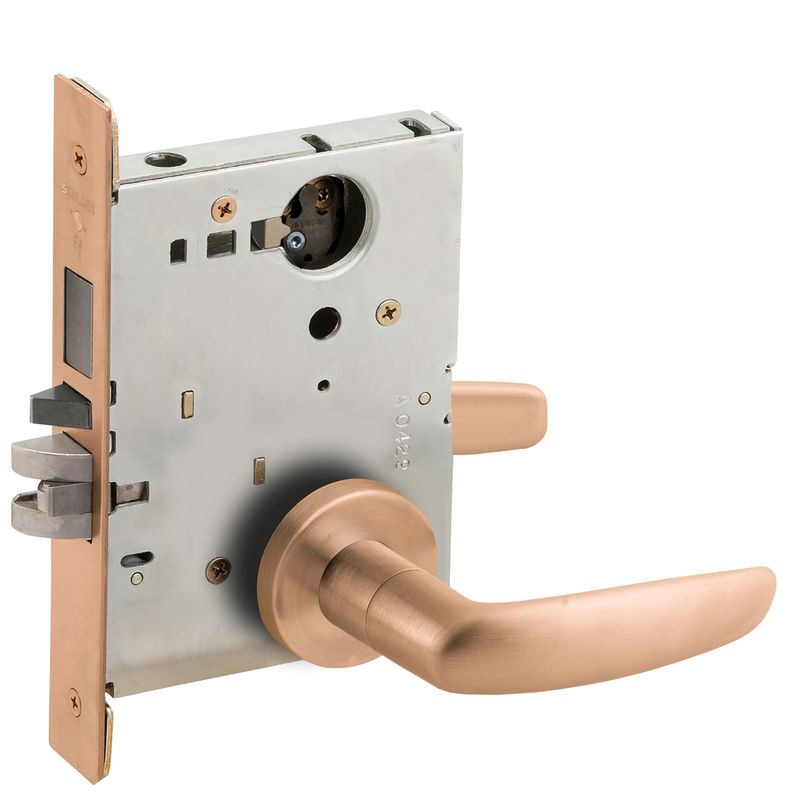

Schlage L9453L 07A 612 Grade 1 Entry Door with DeadboltSchlage L9453L 07A 612 Grade 1 Entry with Deadbolt offers an exceptional blend of security and durability, making it an ideal choice for high-traffic environments such as schools, hospitals, and factories. This Grade 1 mortise entrance lock features a robust deadbolt mechanism that ensures reliable operation, while its heavy-gauge steel construction provides unparalleled protection against door edge attacks. Designed with user convenience in mind, the Schlage L9453L is field-reversible, allowing for easy handing adjustments without needing to open the lock case. The lock's innovative design includes a break-away spindle that prevents unsecured failures, alongside a spring-loaded fusible link that ensures a fail secure mode in the event of a fire. With various functions and finishes available, this lock adapts seamlessly to your specific requirements. The satin bronze clear coated finish not only enhances aesthetic appeal but also delivers added corrosion resistance. Key features like the independent lever rotation and easy-to-read locking thumb-turn further enhance usability. Certified to ANSI Grade 1 standards, the Schlage L9453L lock combines strength with built-in security features, ensuring a safe and functional environment. Whether for commercial or residential use, this entry lock sets the benchmark for quality and performance.
Grade 1 Entry with Deadbolt
Grade 1 Mortise Entrance Office Lock With Deadbolt Lock, Less Conventional Cylinder, 07 Lever, A Rose, Satin Bronze Clear Coated Finish, Field Reversible
Schlage L-Series Extra Heavy Duty Mortise Locks are built to withstand the rigors of daily use without fail. Our L9000 Series locks are ideal for use in schools, hospitals and factories, where the finest hardware must also deliver consistent, dependable operation and stand up to constant use and abuse. We pay attention to these details so you can focus on creating a functional and aesthetically pleasing environment for your clients. In fact, every one of our L-Series locks meets ANSI Grade 1 standards for safety. A multitude of functions, finishes and trim designs are available to meet virtually every security and aesthetic requirement.
Extra heavy duty mortise lock protected by all metal heavy-gauge steel.
Schlage L9000 Series locks are ideal for use in schools, hospitals and factories, where the finest hardware must also deliver consistent, dependable operation and stand up to constant use and abuse.
Durability and Strength
- Heavy-gauge, fully wrapped steel case protects against door edge attacks
- All-metal zinc dichromate-plated working parts
- Electronic components protected by inside lock case
- Wear and tear reduced by two-piece anti-friction tongue
- Outside and inside trim thru-bolted together and through the door
Built-in Security
- Unsecured failures prevented by break-away spindle, also providing easy spindle replacement
- Spindle manipulation discouraged by hub blocking plate
- Spring-loaded fusible link provides fail secure mode in case of fire
- Inside lever applied by screwless shank mounting - no exposed trim mount screws
Adaptable to your application
- Universal lock case featuring ten functions in one case
- Floating mounting tabs adjust to fit a beveled door edge
- Field-reversible handing without opening lock case
- Simple trim retrofit made possible by external spring cages
- Locking thumb-turn on the inside of door shows when the door is unlocked and locked
- Lever rotation in both directions for ease of use
- Independent lever rotation
Attributes
Ansi: A156.13-2017 Series 1000
Ansi Function: F20 - Entry/Office
Baa Qualified: Yes
Base Material: Bronze
Bolt Projection: 3/4" Latch, 1" Deadbolt
Burglar Rated: No
Cam Number: L583-474
Cam Type: Schlage L
Commercial Residential: Commercial
Country of origin: Mexico
Cylinder Length: 1-1/8"
Cylinder Type: Less Conventional Cylinder
Door Thickness: 1-3/4"
Dust Box: Plastic
Finish: 612/US10
Finish Family: Matte Bronze
Fire Rated: Yes
Fire Rating: 3 Hours {A}
Function: 9453-Entrance Office Lock With Deadbolt
Function Family: Entrance/Office
Grade: Grade 1
Handing: Field Reversible
Installation: Commercial
Latch Bore Diameter: 2-3/4"
Leverknob Design: 07 Lever
Leverknob Design Family: Curved Lever
Limited Warranty: 3 Years
Origin: Mexico
Pack Height: 5.63"
Pack Height 2: 5.63"
Pack Length: 10.38"
Pack Length 2: 10.38"
Pack Qty: 1
Pack Volume: 313.68 in³
Pack Volume 2: 313.68 in³
Pack Width: 5.38"
Pack Width 2: 5.38"
Pins: 6
Projection: 2-7/8"
Rose Number: 09-404 A 612, 09-403 A 612
Roseescutcheon Design: A Rose
Roseescutcheon Dimensions: 2-1/8" Diameter, 13/32" Projection
Screws: Combination
Series: L9000 Series Mortise Lock
Ship Weight: 6.3 lbs.
Std Latch Backset Dim: 2-3/4"
Std Latch Number: L283-008, L283-006, L283-004
Std Latch Type: Combination Latch and Bolt
Std Strike Height: 4-7/8"
Std Strike Number: 10-072 1316 612
Std Strike Type: ANSI Strike
Std Strike Width: 1-3/16"
Subtype: Mortise Lock
Type: Locks, Cylinders, Cores, Keyblanks
Ul Listing: UL Listed
Unit of Measure: Each
Unit of Measure 2: Case
Unit of Measure 2 Qty: 6
