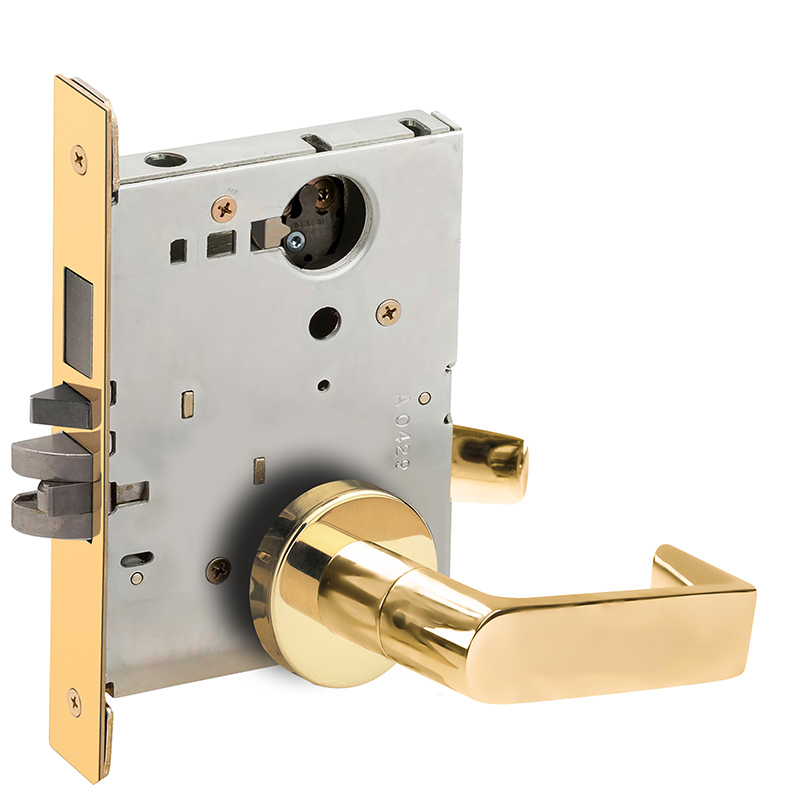

Schlage Commercial L9453L06A605 Entry / Office with Deadbolt Mortise Lock Less Cylinder combines robust security with elegant design, making it an ideal choice for commercial applications. This lock features a deadbolt function, ensuring enhanced protection, while the latchbolt can be retracted from either side for convenient access. The lock is easily secured with a 20° turn and thrown by a 90° turn, providing reliable locking mechanisms that can be operated by either a key or handle. Crafted to meet ANSI/BHMI Certified A156.13-2012 standards and classified as Commercial Grade 1, this lock is built to last. It is UL Listed for use on 3-hour fire doors, ensuring safety in critical situations. Designed for a standard door thickness of 1-3/4", the L9453L06A605 has a 2-3/4" backset and a 1-1/4" x 8" latch faceplate dimension for seamless installation. The bright brass finish exudes a classic look, while the A Rose design complements various architectural styles. With a limited 10-year mechanical warranty and a 3-year electro-mechanical warranty, Schlage stands behind the quality of this product. Choose the L9453L06A605 for a secure, stylish, and dependable locking solution for your commercial space.
For more than 90 years, Schlage has been creating the strongest and most technologically advanced security products for homes, multi-family, commercial, and institutional buildings. We have been meticulous designers, painstaking engineers, and proud craftsmen. From durable mechanical locks to comprehensive electronic access control solutions and biometrics, Schlage provides protection at critical moments–when property and personal security are at stake. In homes, public buildings, and the workplace, at the end of the day, Schlage stands for one thing: strong.
Attributes
Ansi Function: F20 - Entry/Office
Baa Qualified: Yes
Backset: 2-3/4" Backset
Base Material: Brass
Bolt Projection: 3/4" Latch, 1" Deadbolt
Bolt Protection: 3/4" Latch, 1" Deadbolt
Category: Mechanical Commercial Locksets
Commercial Residential: Commercial
Country of Origin: Mexico
Country of origin: Mexico
Cylinder Type: Less Cylinder
Design: 06 Lever
Dimension: 2-1/8" Rose with 4-5/8" Lever and 2-1/2" Projection
Door Range: 1-3/4"
Door Thickness: 1-3/4"
Dust Box: Plastic
Finish: Bright Brass
Finish Code: 605
Finish Description: Bright Brass
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Function: 9453-Entrance Office Lock w Deadbolt
Grade: Grade 1
Hand: Field Reversible
Handing: Reversible
Hazardous Material: NO
Installation: Commercial
Latch Faceplate Dimension: 1-1/4" x 8"
Lever Knob Design: 06 - Lever
Leverknob Design: 06 Lever
Limited Warranty: 3 Years
Lock Face Size: 8" x 1-1/4"
Manufacturer Warranty: Limited 10 Year Mechanical and 3 Year Electro Mechanical Warranty
Material: Zinc Base
No Of Inners: 1
Order_ Qty: 1
Origin: Mexico
Pack Height: 5.63"
Pack Height 2: 5.63"
Pack Length: 10.38"
Pack Length 2: 10.38"
Pack Qty: 1
Pack Volume: 313.68 in³
Pack Volume 2: 313.68 in³
Pack Width: 5.38"
Pack Width 2: 5.38"
Rose Escutcheon Design: A - Rose
Roseescutcheon Design: A Rose
Screws: Combination
Series: L Series
Ship Weight: 6.3 lbs.
Std Strike Height: 4-7/8"
Std Strike Number: 10-072
Std Strike Type: ASA
Std Strike Width: 1-1/4"
Strike: ANSI Strike
Strike Dimension: 4-7/8" with 1-1/4" Lip
Strike Height: 4-7/8"
Strike Number: 10-072
Strike Type: ASA
Strike Width: 1-1/4"
Subcategory: Mortise Locksets
Subtype: Mortise Lock
Type: Locks, Cylinders, Cores, Keyblanks
Ul Listing Type: UL Listed for 3 Hour Fire Door
Unit of Measure: Each
Unit of Measure 2: Case
Unit of Measure 2 Qty: 6
