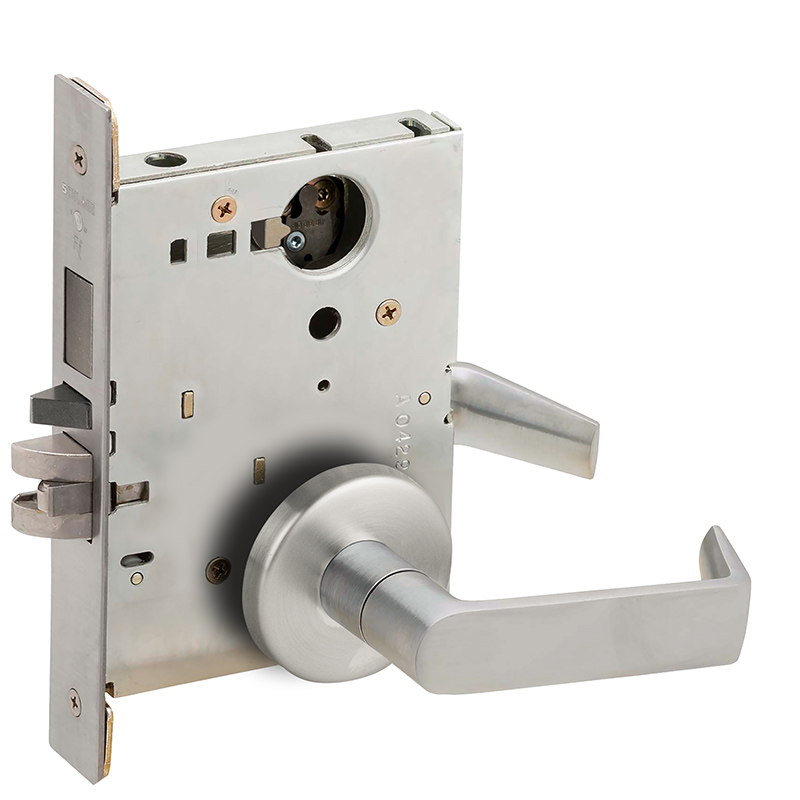

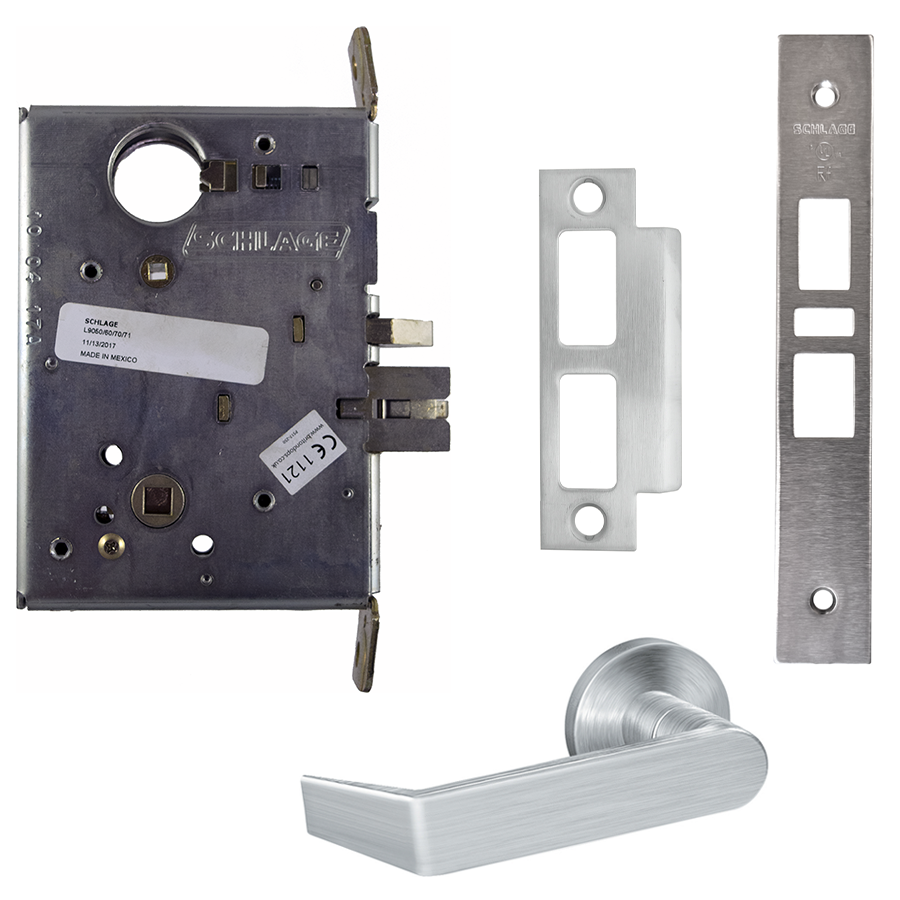

Schlage L9453L06B626 Mortise Deadbolt Lockset with 06 Lever, B Rose, Satin Chrome Finish

Schlage Commercial L9453L06B626 Entry / Office with Deadbolt Mortise Lock offers a robust solution for secure access control in commercial settings. Designed with a satin chrome finish, this lock combines durability with an elegant appearance that complements various architectural styles. The 2-3/4" backset and 1-3/4" door range ensure compatibility with most standard doors, while the reversible handing allows for versatile installation options. The lock features a 2-9/16" B Rose escutcheon and a 4-5/8" lever, providing both functionality and ease of use. Its ANSI strike, measuring 4-7/8" with a 1-1/4" lip, guarantees reliable performance. Built from a sturdy zinc base material, this lock is designed for long-lasting use, making it a dependable choice for high-traffic areas. With a UL listing for 3-hour fire doors, the L9453 also meets stringent safety standards, ensuring peace of mind. The lock is backed by a 3-year limited mechanical warranty and a 1-year limited electromechanical warranty, reflecting Schlage’s commitment to quality. Ideal for offices and entryways, this mortise lockset combines security, style, and reliability in one comprehensive package.

Entry / Office with Deadbolt Mortise Lock Less Cylinder with 06 Lever and B Rose Satin Chrome Finish

• Handing:
• L9000 Series lock bodies are field-reversible without disassembly. L400 Series locks are non-handed.
• Door thickness: 1-3/4" (44 mm) standard. 1-3/8" (35 mm) to 2-1/2" (64 mm) optional. Over 2-1/2" (64 mm) door ranges vary by function. No escutcheon available for 1-3/4" (44 mm) doors standard. 2" to 2-3/8" (51 mm to 60 mm) optional. Specify door thickness if other than 1-3/4".
• Backset: 2-3/4" (70 mm) only.
• Armored front:
• L9000 Series: 1-1/4" x 8" x 7/32" (32 mm x 203 mm x 6 mm) standard. 1-1/16" x 8" x 1-7/32" (27 mm x 203 mm x 6 mm) optional.
• L400 Series: 4-7/16" x 3-5/8" x 1" (113 mm x 92 mm x 25 mm)
• Case size:
• L9000 Series: 4-7/16" x 6-1/16" x 1" (113 mm x 154 mm x 25 mm)
• Spacing: Knob or lever to cylinder, 3-7/8" (98mm); knob or lever to thumbturn hub, 2-11/16" (68mm).
• Bolts: 1" (25mm) throw stainless steel deadbolt and 3/4" (19mm) throw stainless steel latch with anti-friction tongue.
• Exposed trim:
• Knobs: #41 and #42 heavy-duty wrought brass, bronze or stainless steel knobs match D Series knobs.
• Levers: Forged brass or bronze and cast stainless steel. Designs available to match D Series levers. 93 Lever design: Extruded brass, bronze or stainless steel. Mediterranean designs: Forged-brass lever and rose.
• Escutcheons: L escutcheons are cold-forged brass or bronze and stainless steel. N escutcheons are heavy wrought reinforced brass, bronze and stainless steel.
• Trim combinations: Available with knob both sides, lever both sides, or knob and lever with rose or escutcheon both sides.
• Strike: L9000 Series: ANSI curved lip strike 1-1/4" x 4-7/8" (32 mm x 124 mm) x 13/16" (30 mm) lip to center with dust box standard. L400 Series: 1-1/8" x 3-5/8" (29 mm x 92 mm) with dust box.
• Cylinder & keys: 6-pin Everest C123 keyway cylinder with two patented keys standard.
• Entry/Office Lock with Deadbolt, Latchbolt Retracted by Either Side, Locked by 20° Turn, Bolt Thrown by 90° Turn, Key or Handle Retracts Dead and Latchbolt, Locked Until Turn Restored Upright, Auxiliary Deadlocks Latchbolt, Inside Always Free
• ANSI/BHMI Certified A156.13-2012
• Commercial Grade 1
• Lock Body Mortises Inside the Edge of the Door
• UL Listed for 3 Hour Fide Door
• Tested and certified to ANSI/BHMA grade 1 operational and security standards
• UL listed for 3-hour fire door; spring-loaded fusible link inside lock case provides fail secure mode in case of fire
• Deadbolt features include anti-saw pin in bolt to prevent cut-through
• Security blocking hub prevents lock access by removing levers
• Vandlgard option allows the outside lever to rotate freely down to prevent damage from excessive force while in a locked state
• Lock monitoring options include request to exit (RX), latchbolt (LX), door position (DPS), and deadbolt (DM) (availability varies by function)
• Patented Everest 29 S123 keyway is provided standard which prohibits unauthorized key duplication
• Restricted geographically exclusive Primus upgraded security options offer advanced key control and exceptional physical security
• Two piece anti-friction tongue in latch bolt reduces wear
• Breakaway spindle keeps door secured in the event of vandalism
• Field reversible latch bolt allows handing change without opening case
• Every Schlage lock undergoes intensive testing to determine its ANSI grade level including: cycle, resistance, door impact, warped door and bolt strength tests
