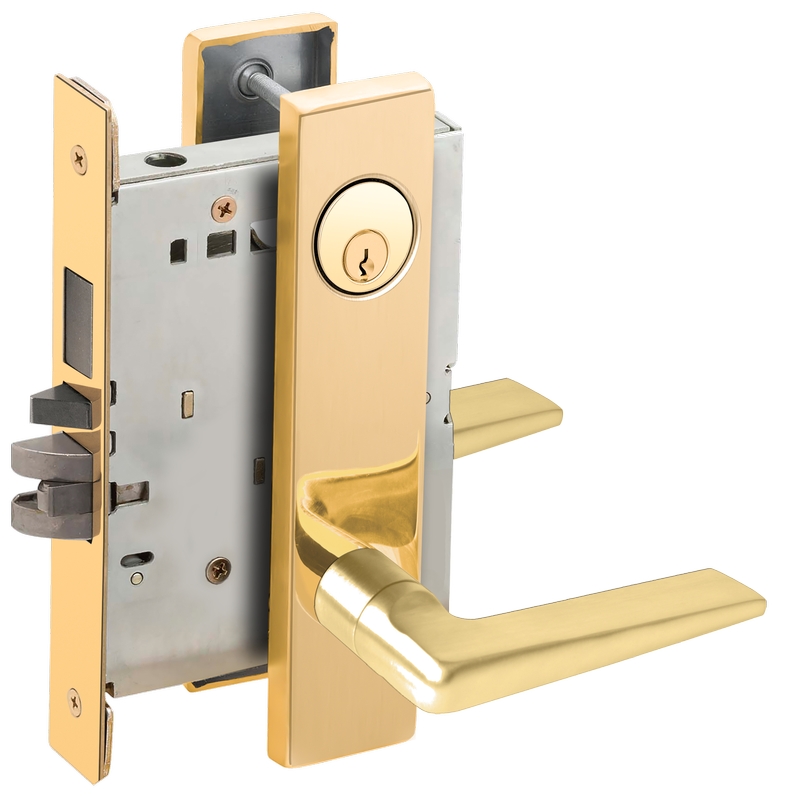

Schlage L-Series Extra Heavy Duty Mortise Locks are built to withstand the rigors of daily use without fail. Our L9000 Series locks are ideal for use in schools, hospitals and factories, where the finest hardware must also deliver consistent, dependable operation and stand up to constant use and abuse. We pay attention to these details so you can focus on creating a functional and aesthetically pleasing environment for your clients. In fact, every one of our L-Series locks meets ANSI Grade 1 standards for safety. A multitude of functions, finishes and trim designs are available to meet virtually every security and aesthetic requirement.
Attributes
Ansi Function: F20 - Entry/Office
Baa Qualified: Yes
Base Material: Brass
Bolt Projection: 3/4" Latch, 1" Deadbolt
Bolt Protection: 3/4" Latch, 1" Deadbolt
Commercial Residential: Commercial
Country of Origin: Mexico
Country of origin: Mexico
Cylinder Type: Conventional Cylinder
Design: 05 Lever and L Escutcheon
Door Thickness: 1-3/4"
Dust Box: Plastic
Finish: 605/US3
Finish Description: Bright Brass
Finish Family: Polished Brass
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Function: 9453-Entrance Office Lock w Deadbolt
Function Family: Entrance/Office
Grade: Grade 1
Hand: Field Reversible
Handing: Field Reversible
Installation: Commercial
Keying: Keyed Different
Keys: Cut
Keyway: S123
Lever Knob Design: 05 - Lever
Leverknob Design: 05 Lever
Limited Warranty: 3 Years
Lock Face Size: 8" x 1-1/4"
Num Of Keys: 2
Num Pins: 6
Of Keys: 2
Origin: Mexico
Pack Height: 5.63"
Pack Height 2: 5.63"
Pack Length: 10.38"
Pack Length 2: 10.38"
Pack Qty: 1
Pack Volume: 313.68 in³
Pack Volume 2: 313.68 in³
Pack Width: 5.38"
Pack Width 2: 5.38"
Pins: 6
Rose Escutcheon Design: L - Escutcheon
Roseescutcheon Design: L Escutcheon
Screws: Combination
Series: L9000 Series Mortise Lock
Ship Weight: 6.3 lbs.
Std Keyway: S123
Std Strike Height: 4-7/8"
Std Strike Number: 10-072
Std Strike Type: ASA
Std Strike Width: 1-1/4"
Strike: 10-072 Strike
Strike Height: 4-7/8"
Strike Number: 10-072
Strike Type: ASA
Strike Width: 1-1/4"
Subtype: Mortise Lock
Type: Locks, Cylinders, Cores, Keyblanks
Unit of Measure: Each
Unit of Measure 2: Case
Unit of Measure 2 Qty: 6
