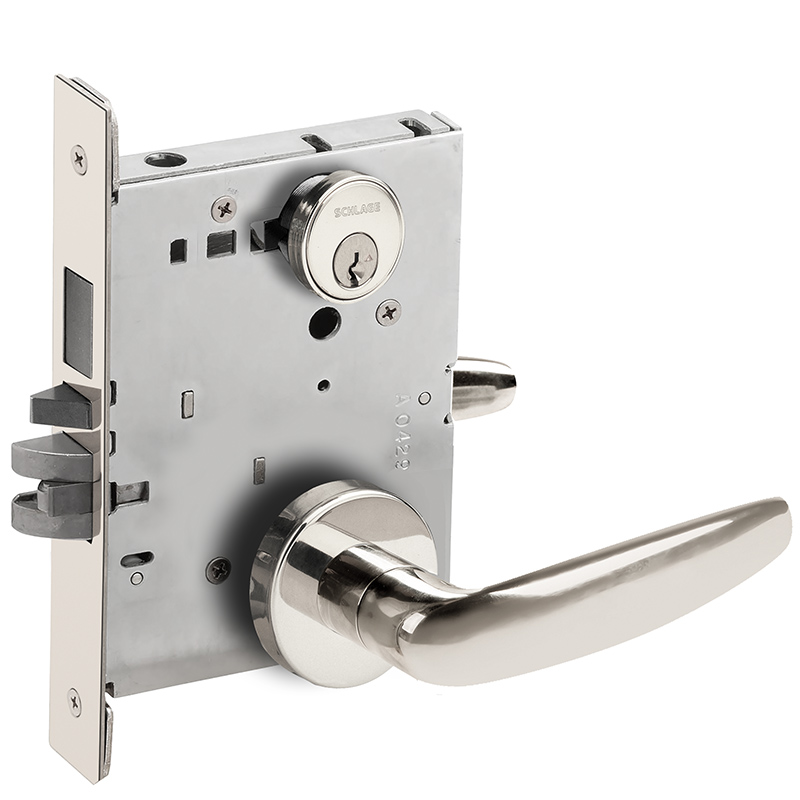

Schlage Commercial L9453P07A625 Entry / Office with Deadbolt Mortise Lock combines security and style, making it an ideal choice for commercial applications. This mechanical lockset features a C keyway and a reversible design, allowing for versatile installation on doors ranging from 1-3/4" thick. The lockset is elegantly finished in bright chrome, complemented by the modern 07 lever and A rose design, which adds a touch of sophistication to any entryway. Designed for durability, the L9453P is constructed from a robust zinc base and is backed by a 3-year limited mechanical warranty and a 1-year limited electromechanical warranty, ensuring long-lasting performance. With a 2-3/4" backset and ANSI strike measuring 4-7/8" with a 1-1/4" lip, this lockset provides a secure fit and reliable operation. Additionally, it is UL listed for a 3-hour fire door, enhancing safety in commercial settings. The lockset features a latch faceplate dimension of 1-1/4" x 8", and its 6-pin keyway offers added security. Ideal for office environments, the Schlage L9453P ensures ease of access while maintaining strict security standards. Upgrade your door hardware with this stylish and functional solution.
Attributes
Alt Part No: 256113
Ansi: F20 - Entry/Office
Ansi Function: F20 - Entry/Office
Baa Qualified: Yes
Backset: 2-3/4" Backset
Category: Mechanical Commercial Locksets
Commercial Residential: Commercial
Country of Origin: Mexico
Country of origin: Mexico
Cylinder Type: Conventional Cylinder
Design: 07 Lever and A Rose
Dimension: 2-1/8" Rose with 4-5/8" Lever and 2-7/8" Projection
Door Range: 1-3/4"
Door Thickness: 1.75
Dust Box: K510-066
Finish: Bright Chrome
Finish Code: 625
Finish Description: Bright Chrome
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Function: 9453-Entrance Office Lock w Deadbolt
Grade: Grade 1
Handing: Reversible
Hazardous Material: NO
Installation: Commercial
Keying: Keyed Different
Keys: Cut
Keyway: C Keyway
Latch Faceplate Dimension: 1-1/4" x 8"
Length: 0.0
Lever Knob Design: 07 - Lever
Leverknob Design: 07 Lever
Limited Warranty: 3 Years
Lock Face Size: 1.25
Manufacturer Warranty: 3 Year Limited Mechanical Warranty and 1-Year Limited Electromechanical Warranty
Material: Zinc Base
No Of Inners: 1
No Of Pins: 6 Pin Keyway
Num Of Keys: 2
Of Keys: 2
Order_ Qty: 1
Origin: Mexico
Rose Escutcheon Design: A - Rose
Roseescutcheon Design: A Rose
Sales Unit: EA
Screws: C203-736
Series: L Series
Std Strike Height: 4.875
Std Strike Number: 10-072
Std Strike Type: ASA
Std Strike Width: 1.1875
Strike: ANSI Strike
Strike Dimension: 4-7/8" with 1-1/4" Lip
Strike Height: 4.875
Strike Number: 10-072
Strike Type: ASA
Strike Width: 1.1875
Subcategory: Mortise Locksets
Subtype: Mortise Lock
Type: Locks, Cylinders, Cores, Keyblanks
Ul Listing Type: UL Listed for 3 Hour Fire Door
Unit of Measure: Each
