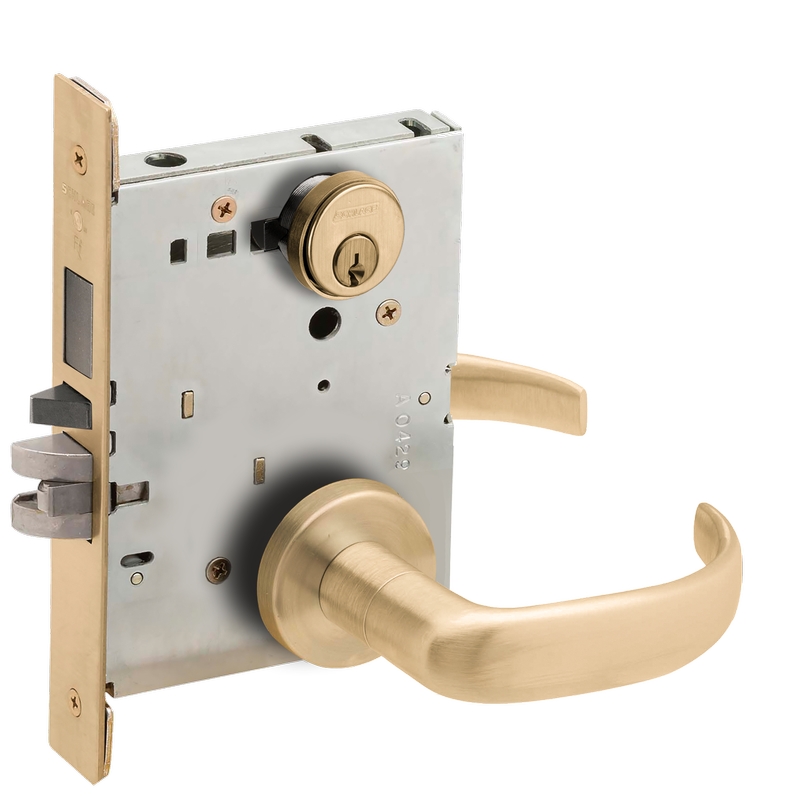

Schlage Commercial L9453P17A606 Entry / Office with Deadbolt Mortise Lock offers a robust solution for securing commercial spaces. Designed with a C keyway, this lock features a 17 lever and A rose design in a sophisticated satin brass finish, blending durability with aesthetic appeal. Its entry/office function includes a deadbolt and allows for the latchbolt to be retracted from either side, ensuring ease of access while maintaining security. This commercial-grade 1 lock is ANSI/BHMI certified and UL listed for a 3-hour fire door, confirming its reliability in critical situations. The lock body is designed to mortise into the edge of a 1-3/4" thick door, making it suitable for a wide range of applications. The 2-3/4" backset and 4-3/4" lever with a 2-1/8" rose provide a secure fit and feel. With a reversible handing and a robust zinc base material, the L9453P17A606 is built to withstand frequent use. The limited 10-year mechanical and 3-year electro-mechanical warranty adds an extra layer of assurance for building professionals and homeowners alike. Elevate your security with Schlage’s enduring craftsmanship and advanced technology.
For more than 90 years, Schlage has been creating the strongest and most technologically advanced security products for homes, multi-family, commercial, and institutional buildings. We have been meticulous designers, painstaking engineers, and proud craftsmen. From durable mechanical locks to comprehensive electronic access control solutions and biometrics, Schlage provides protection at critical moments–when property and personal security are at stake. In homes, public buildings, and the workplace, at the end of the day, Schlage stands for one thing: strong.
Attributes
Ansi Function: F20 - Entry/Office
Baa Qualified: Yes
Backset: 2-3/4" Backset
Base Material: Brass
Bolt Projection: 3/4" Latch, 1" Deadbolt
Bolt Protection: 3/4" Latch, 1" Deadbolt
Category: Mechanical Commercial Locksets
Commercial Residential: Commercial
Country of Origin: Mexico
Country of origin: Mexico
Cylinder Type: Conventional Cylinder
Design: 17 Lever and A Rose
Dimension: 2-1/8" Rose with 4-3/4" Lever and 3" Projection
Door Range: 1-3/4"
Door Thickness: 1-3/4"
Dust Box: Plastic
Finish: Satin Brass
Finish Code: 606
Finish Description: Satin Brass
Finish Family: Matte Brass
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Function: 9453-Entrance Office Lock w Deadbolt
Function Family: Entrance/Office
Grade: Grade 1
Hand: Field Reversible
Handing: Reversible
Hazardous Material: NO
Installation: Commercial
Keying: Keyed Different
Keys: Cut
Keyway: S123
Latch Faceplate Dimension: 1-1/4" x 8"
Lever Knob Design: 17 - Lever
Leverknob Design: 17 Lever
Limited Warranty: 3 Years
Lock Face Size: 8" x 1-1/4"
Manufacturer Warranty: Limited 10 Year Mechanical and 3 Year Electro Mechanical Warranty
Material: Zinc Base
No Of Inners: 1
No Of Pins: 6 Pin Keyway
Num Of Keys: 2
Num Pins: 6
Of Keys: 2
Order_ Qty: 1
Origin: Mexico
Pack Height: 5.63"
Pack Height 2: 5.63"
Pack Length: 10.38"
Pack Length 2: 10.38"
Pack Qty: 1
Pack Volume: 313.68 in³
Pack Volume 2: 313.68 in³
Pack Width: 5.38"
Pack Width 2: 5.38"
Pins: 6
Rose Escutcheon Design: A - Rose
Roseescutcheon Design: A Rose
Screws: Combination
Series: L Series
Ship Weight: 6.3 lbs.
Std Keyway: S123
Std Strike Height: 4-7/8"
Std Strike Number: 10-072
Std Strike Type: ASA
Std Strike Width: 1-1/4"
Strike: ANSI Strike
Strike Dimension: 4-7/8" with 1-1/4" Lip
Strike Height: 4-7/8"
Strike Number: 10-072
Strike Type: ASA
Strike Width: 1-1/4"
Subcategory: Mortise Locksets
Subtype: Mortise Lock
Type: Locks, Cylinders, Cores, Keyblanks
Ul Listing Type: UL Listed for 3 Hour Fire Door
Unit of Measure: Each
Unit of Measure 2: Case
Unit of Measure 2 Qty: 6
