Ship via: Can Ship UPS
Alternate Codes: L9453R17N626
Ansi Function: F20 - Entry/Office
Baa Qualified: Yes
Backset: 2-3/4"
Bolt Protection: 3/4" Latch, 1" Deadbolt
Category: Lock Sets, Mortise Locks, Mortise Lock Sets
Country of Origin: Mexico
Cylinder Type: Schlage FSIC With Core
Door Application: Mortise Electric, Mortise Lock Body, Mortise Lock Sets
Door Thickness: 1-3/4"
Dust Box: Plastic
Finish: 626/US26D
Finish Code: 626
Finish Color: Brushed Chrome, Satin Chrome
Finish Description: Satin Chrome
Fire Rated: 3 Hours {A}

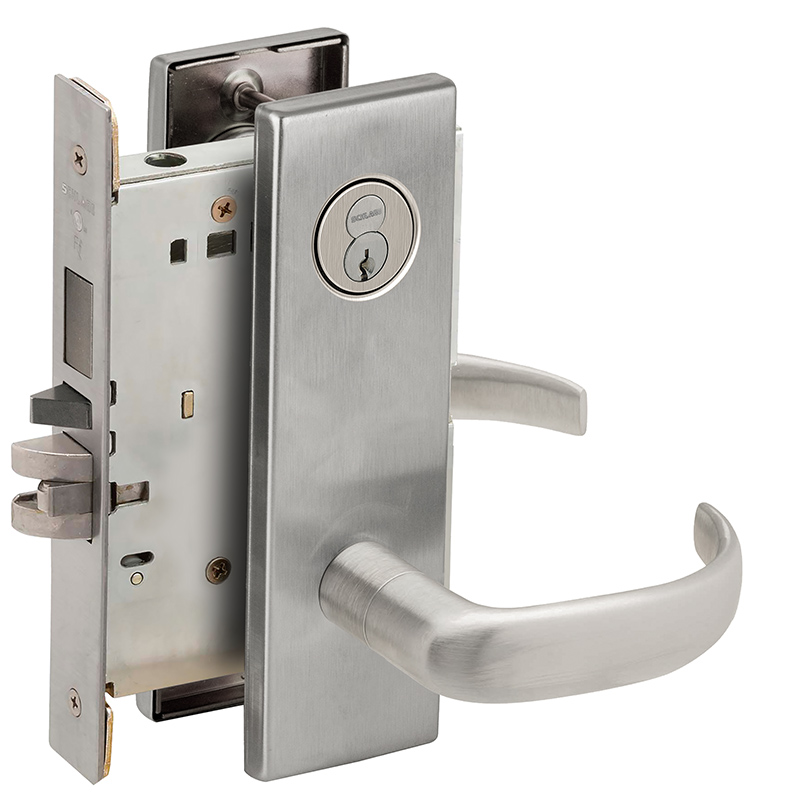

Function: 9453-Entrance Office Lock w Deadbolt
Grade: Grade 1
Hand: Field Reversible
Keying: 1 Bitted
Keys: Cut
Keyway: S123
Lever Design: 17
Lever Knob Design: 17 - Lever
Limited Warranty: 3 Years
Lock Category: Mortise Lockset - Latch and Deadbolt
Lock Face Size: 8" x 1-1/4"
Num Of Keys: 2
Num Pins: 6
Rose Escutcheon Design: N - Escutcheon
Rose/ Escutcheon: N Escutcheon
Screws: Combination
Series: L Series
Strike: 10-072 Strike
Strike Height: 4-7/8"
Strike Number: 10-072
Strike Type: ASA
Strike Width: 1-1/4"
Subtype: Mortise Lock
Type: Locks, Cylinders, Cores, Keyblanks
