Schlage Lock Company L9456-P-03A-626 IS-LOC L583-363 Corridor Mortise Lock combines robust security and innovative design, making it an ideal choice for high-traffic areas. This grade 1 mortise lock features a deadbolt with an inside indicator to clearly signal whether the door is locked or unlocked, enhancing safety and convenience. Its large ADA-compliant thumbturn ensures easy operation, catering to all users. Constructed from cold-rolled steel with zinc dichromate plating, the L9456 is designed for durability and longevity. The 6-pin conventional cylinder offers reliable key control, while Schlage's patented Everest 29 S123 keyway prevents unauthorized duplication, providing peace of mind. The lock is UL listed for a 3-hour fire door rating, ensuring safety in emergencies. With a backset of 2-3/4" and compatibility with standard door thicknesses, this lock fits seamlessly into most installations. The anti-saw pin in the bolt and the security blocking hub add extra layers of protection against tampering. Additionally, the field-reversible latch bolt simplifies installation and adaptability. Whether for commercial or residential applications, the Schlage L9456 ensures maximum security without sacrificing accessibility, making it a wise choice for any locking solution.

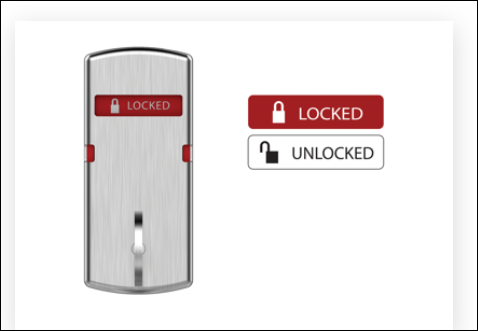

KIT - 03A Corridor Mortise Lock with Deadbolt, Inside Indicator (Locked/Unlocked) with Inside ADA Thumbturn (L583-363), 6-Pin C Keyway KD, 626/US26D Satin Chrome

The L series has long been the benchmark for grade 1 mortise locks. Beyond strength and security–it offers flexibility to meet most needs. Sixty-one mechanical functions include ten non-levered small- and large-case deadbolt functions and nine electrified functions that are regularly used as part of electronic access control systems. L Series locks have the ability to suite across electronic, tubular, exit trim, and multi-point locks to integrate seamlessly into any environment. The series features an array of security options including patented, 180-degree high visibility lock status indication trim, key override of a thumbturn being held, and support for multiple keyway families and cylinder types including Primus XP high-security cylinders.

Features:

• Tested and certified to ANSI/BHMA grade 1 operational and security standards
• UL listed for 3-hour fire door; spring-loaded fusible link inside lock case provides fail secure mode in case of fire
• Deadbolt features include anti-saw pin in bolt to prevent cut-through
• Security blocking hub prevents lock access by removing levers
• Vandlgard option allows the outside lever to rotate freely down to prevent damage from excessive force while in a locked state
• Lock monitoring options include request to exit (RX), latchbolt (LX), door position (DPS), and deadbolt (DM) (availability varies by function)
• Patented Everest 29 S123 keyway is provided standard which prohibits unauthorized key duplication
• Restricted geographically exclusive Primus upgraded security options offer advanced key control and exceptional physical security
• Two piece anti-friction tongue in latch bolt reduces wear
• Breakaway spindle keeps door secured in the event of vandalism
• Field reversible latch bolt allows handing change without opening case
• Every Schlage lock undergoes intensive testing to determine its ANSI grade level including: cycle, resistance, door impact, warped door and bolt strength tests

Specifications:

• Chassis Case material: Cold rolled steel (CRS) with zinc dichromate plating
• Chassis Backset: 2-3⁄4" (70 mm) only
• Chassis Case size:
• L9000 Series: 4-7⁄16" x 6-1⁄16" x 1" (113 mm x 154 mm x 25 mm)
• L400 Series: 4-7⁄16" x 3-5⁄8" x 1" (113 mm x 92 mm x 25 mm)
• Chassis Door Thickness:
• Standard: 1-3⁄4" (44 mm)
• Optional: 1-3⁄8" (35 mm)
• Over 1-3⁄4" (44 mm) specify door thickness and position in door EE, EI, EO, ED
• Spacing: Knob or lever to cylinder, 3-7/8" (98mm); knob or lever to thumbturn hub, 2-11/16" (68mm).
• Trim Handing: L9000 Series: Field-reversible without disassembly. L400 Series: Non-handed
• Lever/knob:
• 33 lever designs: Forged brass and cast stainless steel
• Two knob designs (see page 5): Heavy-duty wrought brass or stainless steel Ligature resistant lever (SL1) and knob (SK1), high security ligature resistant (HSLR) trim, HL6 hospital latch
• Rose/Escutcheon:
• L escutcheons: 7-15⁄16" x 1-3⁄4" x 7⁄16" (202 mm x 44 mm x 11 mm); cold-forged brass and stainless steel
• N escutcheons: 7-7⁄8" x 2-1⁄2" x 7⁄16" (200 mm x 64 mm x 11 mm); heavy-wrought, reinforced brass and stainless steel
• Roses: A, B, C: wrought brass and stainless steel; AVA and MER: forged brass
• Combinations: Available with knob both sides, lever both sides, or knob/lever combinations. Roses cannot be combined with escutcheons.
• Armor:
• L9000 Series: Standard: 1-1⁄4" x 8" x 7⁄32" (32 mm x 203 mm x 6 mm). Optional: 1-1⁄16" x 8" x 7⁄32" (27 mm x 203 mm x 6 mm)
• L400 Series: Standard: 1-1⁄4" x 5-9⁄16" x 7⁄32"(32 mm x 141 mm x 6 mm)
• Latch: 3⁄4" (19 mm) throw stainless steel latch with anti-friction tongue
• Deadbolt: 1" (25 mm) throw stainless steel deadbolt
• Strike:
• L9000 Series: Standard: ANSI curved lip strike 1-1⁄4" x 4-7⁄8" (32 mm x 124 mm) x 1-3⁄16" (30 mm) lip with dust box; optional: extended lip strike options (7⁄8", 1", 1-1⁄2", 1-3⁄4", 2")
• L400 Series: Standard: 1-1⁄8" x 3-1⁄2" (29 mm x 89 mm) with dust box; optional: 1-1⁄4" x 4-7⁄8" (32 mm x 124 mm) with dust box
• Cylinder format: 6-pin Conventional mortise cylinder (standard); also available in concealed mortise cylinder, FSIC, SFIC and 7-pin SL cylinder formats plus less cylinder options. Two nickel silver cut keys per lock.
• Keyway: Patented Everest 29 S123 (standard); also available in open, restricted, and Primus XP security levels with available master keying and construction keying.

Standard Lever and Knob Styles:

• 01: Width: 3.88". Projection: 2.69"
• 02: Width: 4.75". Projection: 2.81"
• 03 (Tubular): Width: 4.75". Projection: 2.81"
• 05: Width: 3.75". Projection: 2.88"
• 06 (Rhodes): Width: 4.63". Projection: 2.5"
• 07 (Athens): Width: 4.63". Projection: 2.88"
• 12: Width: 4.63". Projection: 3.06"
• 17 (Sparta): Width: 4.75". Projection: 3"
• 18: Width: 4.88". Projection: 2.69"
• ACC (Accent): Width: 4.13". Projection: 3.13"
• AST (Asti): Width: 4". Projection: 2.63"
• LAT (Latitude): Width: 4.75". Projection: 2.56"
• LON (Longitude): Width: 4.88". Projection: 2.56"
• MER (Merano): Width: 4". Projection: 3.13"
• OME (Omega): Width: 5.06". Projection: 3.31"
• 41: Width: 2.21". Projection: 2.34"
• 42: Width: 2.13". Projection: 2.54"

Non-Keyed Functions:

• L9010: Passage latch
• ANSI F01
• Levers (or knobs) only-both sides; latchbolt only
• Latchbolt retracted by lever (or knob) from either side at all times
• Inside lever always free for immediate egress
• L9025: Exit or communicating lock
• ANSI F31
• No outside trim; lever (or knob) only-inside; latchbolt and deadlocking auxiliary latch
• Latchbolt retracted by lever (or knob) from inside only
• Inside lever always free for immediate egress
• L/LV9040: Bath/bedroom privacy lock
• ANSI F22
• Emergency thumbturn access outside; thumbturn inside; latchbolt only
• Latchbolt retracted by lever (or knob) from either side
• Outside lever is made inoperative by rotating inside thumbturn; Vandlgard option allows outside lever to rotate freely down while locked
• To unlock from outside, remove access hole cover, insert emergency thumbturn (furnished) and rotate
• Rotating inside thumbturn unlocks outside lever; turning inside lever retracts latchbolt and unlocks outside lever; closing door also unlocks preventing lock-out
• Inside lever always free for immediate egress
• Note: Hospital latch trim not available with Vandlgard option.
• L/LV9040 with XL11-446: Privacy with thumbturn both sides
• Thumbturn both sides; latchbolt only
• Latchbolt retracted by lever (or knob) from either side
• Outside lever is made inoperative by rotating either thumbturn; Vandlgard option allows outside lever to rotate freely down while locked
• Rotating either thumbturn unlocks outside lever
• Rotating inside lever retracts latchbolt and unlocks outside lever; closing door also unlocks
• Inside lever always free for immediate egress
• Note: Available in rose or L escutcheon trim only.
• L/LV9044: Privacy with coin turn outside
• Coin turn outside; thumbturn inside; latchbolt only
• Latchbolt retracted by lever (or knob) from either side
• Outside lever is made inoperative by rotating outside coin turn or inside thumbturn; Vandlgard option allows outside lever to rotate freely down while locked
• Rotating outside coin turn unlocks outside lever
• Rotating inside thumbturn unlocks outside lever; turning inside lever retracts latchbolt and unlocks outside lever; closing door also unlocks preventing lock-out
• Inside lever always free for immediate egress
• Note: Ligature-resistant trims not available with Vandlgard option.
• L9412 with XL11-907: Exit lock with deadbolt
• Lever (or knob) only-outside; thumbturn inside with lever; deadbolt, latchbolt and deadlocking auxiliary latch
• Outside lever (or knob) always fixed; latchbolt retracted by inside lever
• Deadbolt thrown or retracted by rotating inside thumbturn
• Rotating inside lever retracts both deadbolt and latchbolt
• Inside lever always free for immediate egress
• L/LV9440: Privacy with deadbolt
• ANSI F19
• Emergency thumbturn access outside; thumbturn inside; deadbolt and latchbolt
• Latchbolt retracted by lever (or knob) from either side
• Outside lever is made inoperative when deadbolt is thrown by rotating inside thumbturn; Vandlgard option allows outside lever to rotate freely down while locked
• To unlock from outside, remove access hole cover, insert emergency thumbturn (furnished) and rotate
• Rotating inside thumbturn unlocks outside lever; turning inside lever retracts both deadbolt and latchbolt and unlocks outside lever
• Inside lever always free for immediate egress
• L/LV9444: Privacy with deadbolt and coin turn outside
• Coin turn outside; thumbturn inside; deadbolt and latchbolt
• Latchbolt retracted by lever (or knob) from either side
• Outside lever is made inoperative when deadbolt is thrown by rotating inside thumbturn or outside coin turn; Vandlgard option allows outside lever to rotate freely down while locked
• Rotating outside coin turn retracts deadbolt and unlocks outside lever
• Rotating inside thumbturn unlocks outside lever; turning inside lever retracts both deadbolt and latchbolt and unlocks outside lever
• Inside lever always free for immediate egress
• Note: Ligature-resistant trims not available with Vandlgard option.

Single Cylinder Non-Deadbolt Functions:

• L9026: Exit lock with cylinder
• Key cylinder only, no lever (or knob) outside; lever only-inside; latchbolt and deadlocking auxiliary latch
• Latchbolt retracted by lever from inside
• Key outside retracts latchbolt
• Inside lever always free for immediate egress
• Note: Available in rose or L escutcheon trim only.
• L/LV9050: Entrance/office lock
• ANSI F04
• Key cylinder outside; thumbturn inside; latchbolt and deadlocking auxiliary latch
• Latchbolt retracted by lever (or knob) from either side
• Outside lever is made inoperative by key outside or by turning inside thumbturn; Vandlgard option allows both levers to rotate freely down while locked
• Key outside unlocks outside lever and retracts latchbolt
• Rotating inside thumbturn unlocks outside lever; turning inside lever retracts latchbolt but does not unlock
• Inside lever always free for immediate egress
• Caution: Egress without fully rotating the thumbturn to vertical position can result in lock-out situations.
• Note: Hospital latch and ligature-resistant trims not available with Vandlgard option.
• L/LV9056, L/LV9056 with XL13-439: Entrance/office lock with automatic unlocking
• Key cylinder outside; thumbturn inside; latchbolt and deadlocking auxiliary latch
• Latchbolt retracted by lever (or knob) from either side
• Outside lever is made inoperative by key outside or by turning inside thumbturn; Vandlgard option allows outside lever to rotate freely down while locked
• Key outside unlocks outside lever and retracts latchbolt; XL13-439 option also allows key override of thumbturn if being held in locked position
• Rotating inside thumbturn unlocks outside lever; turning inside lever retracts latchbolt and unlocks outside lever; closing door also unlocks preventing lock-out
• Inside lever always free for immediate egress
• Note: Ligature-resistant trims not available with Vandlgard option.
• L/LV9070: Classroom lock, exterior lockdown only
• ANSI F05
• Key cylinder outside with lever (or knob); lever only-inside; latchbolt and deadlocking auxiliary latch
• Latchbolt retracted by lever from either side
• Outside lever is made inoperative by key outside; Vandlgard option allows outside lever to rotate freely down while locked
• Key outside unlocks outside lever and retracts latchbolt
• Inside lever always free for immediate egress
• Note: Outside lever remains inoperative until unlocked by key.
• Note: Hospital latch and ligature-resistant trims not available with Vandlgard option.
• L/LV9076: Classroom holdback lock, exterior lockdown only
• ANSI F06
• Key cylinder outside with lever (or knob); lever only-inside; latchbolt and deadlocking auxiliary latch
• Latchbolt retracted by lever from either side
• Outside lever is made inoperative by key outside; Vandlgard option allows outside lever to rotate freely down while locked
• Key outside unlocks outside lever and retracts latchbolt
• Rotate inside lever while turning key 360° to activate retracted latch holdback feature; to deactivate, reverse key rotation 360°
• Inside lever always free for immediate egress
• Note: Outside lever remains inoperative until unlocked by key.
• Note: Locks with holdback feature are not UL listed. Installation should be in accordance with existing codes only.
• Note: Ligature-resistant trims not available with Vandlgard option.
• L/LV9080: Storeroom lock
• ANSI F07
• Key cylinder outside with lever (or knob); lever only-inside; latchbolt and deadlocking auxiliary latch
• Outside lever always fixed; latchbolt retracted by inside lever; Vandlgard option allows outside lever to rotate freely down while locked
• Key outside retracts latchbolt
• Inside lever always free for immediate egress
• Note: Hospital latch and ligature-resistant trims not available with Vandlgard option.
• L/LV9081: Accessible storeroom lock
• Key cylinder outside with lever (or knob); lever only-inside; latchbolt and deadlocking auxiliary latch
• Latchbolt retracted by lever from either side
• Outside lever is made inoperative by key outside; Vandlgard option allows outside lever to rotate freely down while locked
• Key outside inserted and turned 280° unlocks allowing outside lever to retract latchbolt
• Inside lever always free for immediate egress

Double Cylinder Non-Deadbolt Functions:

• L/LV9060: Apartment entrance lock
• ANSI F09
• Key cylinder both sides; latchbolt and deadlocking auxiliary latch
• Latchbolt retracted by lever (or knob) from either side
• Outside lever is made inoperative by key inside; Vandlgard option allows outside lever to rotate freely down while locked
• Key outside retracts latchbolt but cannot lock or unlock outside lever
• Rotating inside lever retracts latchbolt; key inside retracts latchbolt and unlocks outside lever
• Inside lever always free for immediate egress
• Note: Outside lever remains inoperative until unlocked by key inside.
• Note: Hospital latch and ligature-resistant trims not available with Vandlgard option.
• L9066 with XL11-897: Store lock
• Key cylinder both sides; latchbolt and deadlocking auxiliary latch
• Latchbolt retracted by lever (or knob) from either side
• Both levers are made inoperative by key from either side
• Key use on either side unlocks both levers and retracts latchbolt
• Caution: Double cylinder locks on any door, in any structure which is used for egress are a life safety hazard in times of emergency and their use is not recommended. Installation should be in accordance with existing codes only.
• Note: Ligature-resistant trims not available with Vandlgard option.
• L/LV9071: Classroom security lock, interior/exterior lockdown
• ANSI F32
• Key cylinder both sides; latchbolt and deadlocking auxiliary latch
• Latchbolt retracted by lever (or knob) from either side
• Outside lever is made inoperative by key from either side; Vandlgard option allows outside lever to rotate freely down while locked
• Rotating inside lever retracts latchbolt; key on either side unlocks outside lever and retracts latchbolt
• Inside lever always free for immediate egress
• Note: Outside lever remains inoperative until unlocked by key.
• Note: Ligature-resistant trims not available with Vandlgard option.
• L/LV9077: Classroom security holdback lock, interior/exterior lockdown
• Key cylinder both sides; latchbolt and deadlocking auxiliary latch
• Latchbolt retracted by lever (or knob) from either side
• Outside lever is made inoperative by key from either side; Vandlgard option allows outside lever to rotate freely down while locked
• Key outside retracts latchbolt but cannot unlock outside lever
• Rotating inside lever retracts latchbolt; key inside retracts latchbolt and unlocks outside lever
• Rotate inside lever while turning key 360° to activate retracted latch holdback feature; to deactivate, reverse key rotation 360°
• Inside lever always free for immediate egress
• Note: Outside lever remains inoperative until unlocked by key inside.
• Note: Locks with holdback feature are not UL listed. Installation should be in accordance with existing codes only.
• Note: Ligature-resistant trims not available with Vandlgard option.
• L/LV9082: Institution lock
• ANSI F30
• Key cylinder both sides; latchbolt and deadlocking auxiliary latch
• Both levers (or knobs) always fixed; Vandlgard option allows both levers to rotate freely down while locked
• Key on either side retracts latchbolt
• Caution: Double cylinder locks on anydoor, in any structure which is used for egress are a life safety hazard in times of emergency and their use is not recommended. Installation should be in accordance with existing codes only.
• Note: Hospital latch and ligature-resistant trims not available with Vandlgard option.

Single Cylinder Deadbolt Functions:

• L/LV9453: Entrance/office lock with deadbolt
• ANSI F20
• Key cylinder outside; thumbturn inside; deadbolt, latchbolt and deadlocking auxiliary latch
• Latchbolt retracted by lever (or knob) from either side
• Outside lever is made inoperative when deadbolt is thrown by key outside; rotating thumbturn 20° locks outside lever only; rotating thumbturn 90° also throws deadbolt; Vandlgard® option allows outside lever to rotate freely down while locked
• Key outside retracts deadbolt and latchbolt, however, outside lever remains locked
• Rotating inside lever retracts deadbolt and latchbolt; outside lever unlocked when thumbturn is returned to vertical position
• Inside lever always free for immediate egress
• Caution: Egress without fully rotating the thumbturn to vertical position can result in lock-out situations.
• Note: Hospital latch and ligature-resistant trims not available with Vandlgard option.
• L/LV9456, L/LV9456 with XL13-439: Corridor lock with deadbolt
• ANSI F13
• Key cylinder outside; thumbturn inside; deadbolt and latchbolt
• Latchbolt retracted by lever (or knob) from either side
• Outside lever is made inoperative when deadbolt is thrown by key outside or by inside thumbturn; Vandlgard option allows outside lever to rotate freely down while locked
• Key outside retracts deadbolt and unlocks outside lever; XL13-439 option allows key to retract deadbolt overriding thumbturn if being held in locked position
• Rotating inside lever retracts both deadbolt and latchbolt and unlocks outside lever
• Inside lever always free for immediate egress
• Note: Hospital latch and ligature-resistant trims not available with Vandlgard option.
• L9460 with XL11-635: Cylinder x thumbturn deadbolt with fixed levers
• Key cylinder outside; thumbturn inside; deadbolt only
• Both levers (or knobs) always fixed
• Deadbolt thrown or retracted by key outside or by inside thumbturn
• L9460 with XL11-886: Cylinder x thumbturn deadbolt with inside active lever
• Key cylinder outside; thumbturn inside; deadbolt only
• Outside lever (or knob) always fixed; inside lever always active
• Deadbolt thrown or retracted by key outside or by inside thumbturn
• Rotating inside lever retracts deadbolt
• Inside lever always free for immediate egress
• L9464 with XL11-886: Single cylinder deadbolt with inside active lever
• Key cylinder outside with lever (or knob); lever only-inside; deadbolt only
• Outside lever always fixed; inside lever always active
• Deadbolt thrown or retracted by key outside
• Rotating inside lever retracts deadbolt
• Inside lever always free for immediate egress
• L9465: Closet/storeroom lock
• Key cylinder outside with lever (or knob); lever only-inside; deadbolt and latchbolt
• Latchbolt retracted by lever from either side at all times
• Deadbolt thrown or retracted by key outside
• Caution: Deadbolt locks with outside key retraction only can result in situations where occupants can be locked in.
• Note: Hospital latch and ligature-resistant trims not available with Vandlgard option.
• L9473: Dormitory/bedroom lock
• ANSI F21
• Key cylinder outside; thumbturn inside; deadbolt and latchbolt
• Latchbolt retracted by lever (or knob) from either side at all times
• Deadbolt thrown or retracted by key outside or by inside thumbturn
• Note: Hospital latch and ligature-resistant trims not available with Vandlgard option.
• L/LV9480, L/LV9480 with XL13-439: Storeroom lock with deadbolt
• Key cylinder outside; thumbturn inside; deadbolt, latchbolt and deadlocking auxiliary latch
• Outside lever (or knob) always fixed; latchbolt retracted by inside lever; Vandlgard option allows outside lever to rotate freely down while locked
• Deadbolt thrown or retracted by key outside or by inside thumbturn
• Key outside retracts deadbolt and latchbolt, however, outside lever remains locked; XL13-439 option allows key to retract deadbolt and latchbolt overriding thumbturn if being held in locked position
• Rotating inside lever retracts both deadbolt and latchbolt
• Inside lever always free for immediate egress
• Note: Ligature-resistant trims not available with Vandlgard option.
• L/LV9485, L/LV9485 with XL13-439: Faculty/hotel restroom lock with deadbolt
• Key cylinder outside; thumbturn inside; deadbolt, latchbolt and deadlocking auxiliary latch
• Outside lever (or knob) always fixed; latchbolt retracted by inside lever; Vandlgard option allows outside lever to rotate freely down while locked
• Deadbolt thrown or retracted by rotating inside thumbturn
• Key outside retracts latchbolt but does not retract deadbolt unless using an emergency key (sold separately); XL13-439 option allows emergency key to retract deadbolt and latchbolt overriding thumbturn if being held in locked position
• Rotating inside lever retracts both deadbolt and latchbolt
• Inside lever always free for immediate egress
• Note: Not available in SFIC or Everest SL formats.
• Note: Hospital latch and ligature-resistant trims not available with Vandlgard option.
• L9485 with XL11-557: Prison function lock
• Key cylinder outside with knob; knob only-inside; deadbolt, latchbolt and deadlocking auxiliary latch
• Outside knob always free spinning; latchbolt retracted by inside knob
• Inside knob is made inoperative (fixed) when deadbolt is thrown by guard key outside
• Guard key outside retracts deadbolt and unlocks inside knob; in unlocked state use of prisoner’s key outside retracts latchbolt only
• Note: Available with knobs in rose or L escutcheon trim only. Tamper-resistant torx screws standard.
• L/LV9486, L/LV9486 with XL13-439: Faculty/hotel restroom lock with chevron indicator
• Key cylinder outside; thumbturn inside; deadbolt, latchbolt and deadlocking auxiliary latch
• Outside lever (or knob) always fixed; latchbolt retracted by inside lever; Vandlgard® option allows outside lever to rotate freely down while locked
• Deadbolt thrown or retracted by rotating inside thumbturn, when thrown-indicator message changes from blank to "do not disturb"
• Key outside retracts latchbolt but does not retract deadbolt unless using an emergency key (sold separately); XL13-439 option allows emergency key to retract deadbolt and latchbolt overriding thumbturn if being held in locked position
• Rotating inside lever retracts both deadbolt and latchbolt
• Inside lever always free for immediate egress
• Note: Not available in SFIC or Everest SL formats. Hospital latch trim not available with Vandlgard option.
• To order with key override, specify function and note XL13-439 as a special option.
• Available with A, B or C roses only; to order chevron indicator with "occupied" message specify L583-375.
• L/LV9496, L/LV9496 with XL13-439: Corridor lock with chevron indicator
• Key cylinder outside; thumbturn inside; deadbolt and latchbolt
• Latchbolt retracted by lever (or knob) from either side
• Outside lever is made inoperative when deadbolt is thrown by key outside or by inside thumbturn, when thrown-indicator message changes from blank to "occupied"; Vandlgard option allows outside lever to rotate freely down while locked
• Key outside retracts deadbolt and unlocks outside lever; XL13-439 option allows key to retract deadbolt overriding thumbturn if being held in locked position
• Rotating inside lever retracts both deadbolt and latchbolt and unlocks outside lever
• Inside lever always free for immediate egress
• Note: Available in rose trim only.
• To order with key override, specify function and note XL13-439 as a special option.
• Adds chevron style occupancy indicator (09-611) to sectional trim lock with A or B roses only.

Double Cylinder Deadbolt Functions:

• L/LV9457: Classroom security lock with deadbolt
• ANSI F33
• Key cylinder both sides; deadbolt and latchbolt
• Latchbolt retracted by lever (or knob) from either side
• Outside lever is made inoperative when deadbolt is thrown by key from either side; Vandlgard option allows outside lever to rotate freely down while locked
• Key either side retracts both latchbolt and deadbolt and unlocks outside lever
• Rotating inside lever retracts both deadbolt and latchbolt and unlocks outside lever
• Inside lever always free for immediate egress
• Note: Ligature-resistant trims not available with Vandlgard option.
• L/LV9458: Classroom security lock with deadbolt and auxiliary latch
• ANSI F34
• Key cylinder both sides; deadbolt, latchbolt and deadlocking auxiliary latch
• Latchbolt retracted by lever (or knob) from either side
• Outside lever is made inoperative when deadbolt is thrown by key from either side; Vandlgard option allows outside lever to rotate freely down while locked
• Key either side retracts both latchbolt and deadbolt and unlocks outside lever
• Rotating inside lever retracts both deadbolt and latchbolt and unlocks outside lever
• Inside lever always free for immediate egress
• Note: Ligature-resistant trims not available with Vandlgard option.
• L9462 with XL11-886: Double cylinder deadbolt with active inside lever
• Key cylinder both sides; deadbolt only
• Outside lever (or knob) always fixed; inside lever always active
• Deadbolt thrown or retracted by key from either side
• Rotating inside lever retracts deadbolt
• Inside lever always free for immediate egress
• L9466: Utility room/storeroom lock
• ANSI F14
• Key cylinder both sides; deadbolt and latchbolt
• Latchbolt retracted by lever (or knob) from either side
• Deadbolt thrown or retracted by key from either side
• Caution: Double cylinder locks on any door, in any structure which is used for egress are a life safety hazard in times of emergency and their use is not recommended. Installation should be in accordance with existing codes only.
• Note: Hospital latch and ligature-resistant trims not available with Vandlgard option.
• L/LV9482 x XL11-543: Institution lock with deadbolt
• Key cylinder both sides; deadbolt, latchbolt and deadlocking auxiliary latch
• Both levers always fixed; Vandlgard option allows both leversto rotate freely down while locked
• Deadbolt thrown or retracted by key from either side
• Key on either side retracts both deadbolt and latchbolt
• Caution: Double cylinder locks on any door, in any structure which is used for egress are a life safety hazard in times of emergency and their use is not recommended. Installation should be in accordance with existing codes only.

Finishes:

• 605 - Bright brass
• 606 - Satin brass
• 609 - Antique brass
• 612 - Satin bronze
• 613 - Oil rubbed bronze
• 619 - Satin nickel
• 622 - Matte black
• 625 - Bright chrome
• 626 - Satin chrome
• 626AM - Satin chrome with antimicrobial coating
• 629 - Bright stainless steel
• 630 - Satin stainless steel
• 630AM - Satin stainless steel antimicrobial
• 643e - Aged bronze
