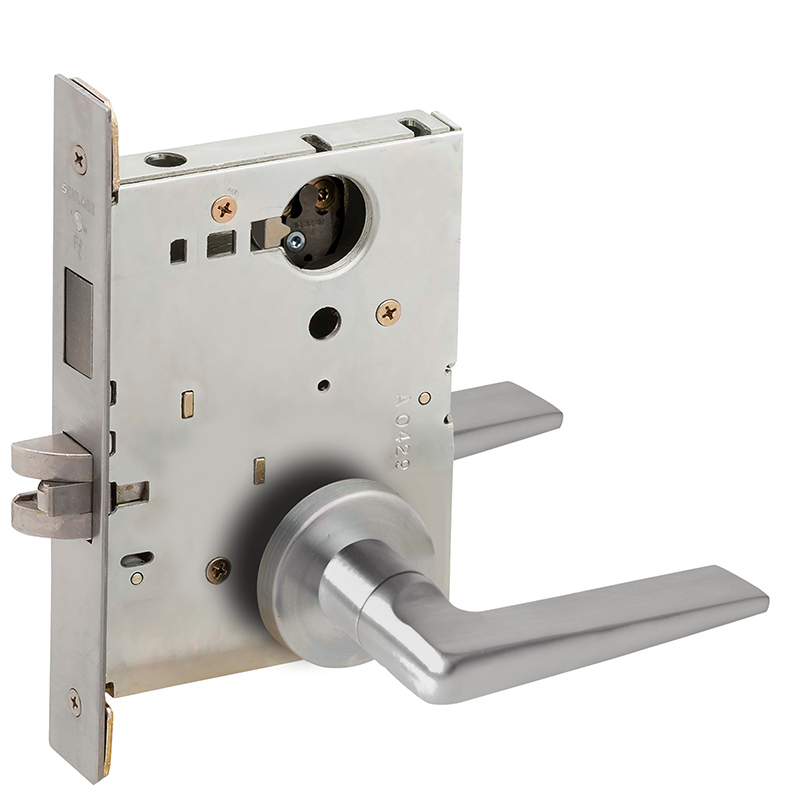

Schlage Commercial L9456L05A626 Corridor Mortise Lock Less Cylinder with 05 Lever and A Rose Satin Chrome Finish offers a robust solution for high-traffic areas requiring reliable security and ease of access. This corridor-style lock features a latchbolt that can be retracted from either side and a deadbolt that is thrown by a key or thumbturn, ensuring peace of mind while maintaining immediate egress through the always-free inside lever. Designed with commercial applications in mind, the L9456 is ANSI/BHMI Certified A156.13-2012 and holds a Commercial Grade 1 rating, making it suitable for institutional and multi-family environments. The lock body is meticulously crafted to mortise into the edge of the door, providing a seamless installation that enhances security. The satin chrome finish not only adds a modern aesthetic but also ensures durability against wear and tear. This model accommodates a 2-3/4" backset and fits doors with a thickness of 1-3/4". Additionally, it is UL Listed for 3-hour fire doors, underscoring its reliability in critical situations. The limited 10-year mechanical warranty and 3-year electro-mechanical warranty further attest to Schlage's commitment to quality craftsmanship and long-lasting performance.
For more than 90 years, Schlage has been creating the strongest and most technologically advanced security products for homes, multi-family, commercial, and institutional buildings. We have been meticulous designers, painstaking engineers, and proud craftsmen. From durable mechanical locks to comprehensive electronic access control solutions and biometrics, Schlage provides protection at critical moments–when property and personal security are at stake. In homes, public buildings, and the workplace, at the end of the day, Schlage stands for one thing: strong.
Attributes
Ansi Function: F13 - Dormitory
Baa Qualified: Yes
Backset: 2-3/4" Backset
Base Material: Brass or Bronze
Bolt Projection: 3/4" Latch, 1" Deadbolt
Bolt Protection: 3/4" Latch, 1" Deadbolt
Category: Mechanical Commercial Locksets
Commercial Residential: Commercial
Country of Origin: Mexico
Country of origin: Mexico
Cylinder Type: Less Cylinder
Design: NULL
Dimension: 2-1/8" Rose with 3-3/4" Lever and 2-13/16" Projection
Door Range: 1-3/4"
Door Thickness: 1-3/4"
Dust Box: Plastic
Finish: Satin Chrome
Finish Code: 626
Finish Description: Satin Chrome
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Function: 9456-Corridor Lock
Grade: Grade 1
Hand: Field Reversible
Handing: Reversible
Hazardous Material: NO
Installation: Commercial
Latch Faceplate Dimension: 1-1/4" x 8"
Lever Knob Design: 05 - Lever
Leverknob Design: 05 Lever
Limited Warranty: 3 Years
Lock Face Size: 8" x 1-1/4"
Manufacturer Warranty: Limited 10 Year Mechanical and 3 Year Electro Mechanical Warranty
Material: Zinc Base
No Of Inners: 1
Order_ Qty: 1
Origin: Mexico
Pack Height: 5.63"
Pack Height 2: 5.63"
Pack Length: 10.38"
Pack Length 2: 10.38"
Pack Qty: 1
Pack Volume: 313.68 in³
Pack Volume 2: 313.68 in³
Pack Width: 5.38"
Pack Width 2: 5.38"
Rose Escutcheon Design: A - Rose
Roseescutcheon Design: A Rose
Screws: Combination
Series: L Series
Ship Weight: 6.3 lbs.
Std Strike Height: 4-7/8"
Std Strike Number: 10-072
Std Strike Type: ASA
Std Strike Width: 1-1/4"
Strike: ANSI Strike
Strike Dimension: 4-7/8" with 1-1/4" Lip
Strike Height: 4-7/8"
Strike Number: 10-072
Strike Type: ASA
Strike Width: 1-1/4"
Subcategory: Mortise Locksets
Subtype: Mortise Lock
Type: Locks, Cylinders, Cores, Keyblanks
Ul Listing Type: UL Listed for 3 Hour Fire Door
Unit of Measure: Each
Unit of Measure 2: Case
Unit of Measure 2 Qty: 6
