• Corridor - Latchbolt Retracted From Either Side, Deadbolt Thrown by Key or Thumbturn, Throwing Deadbolt Locks Outside Lever, Turning Inside Lever Retracts Deadbolt and Latchbolt and Unlocks Outside Lever, Inside Lever is Always Free for Immediate Egress,
• ANSI/BHMI Certified A156.13-2012
• Commercial Grade 1

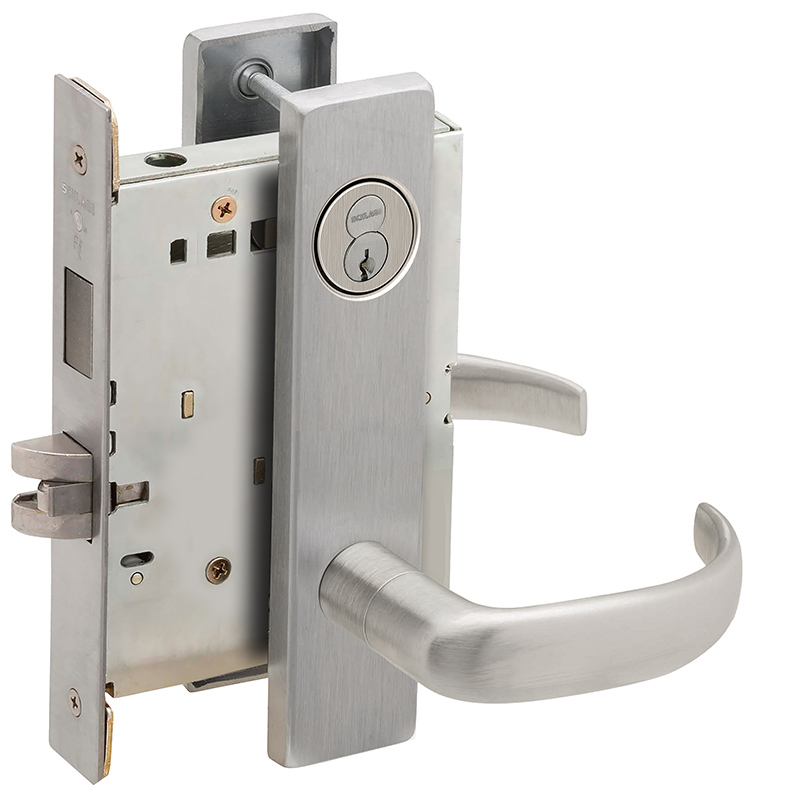

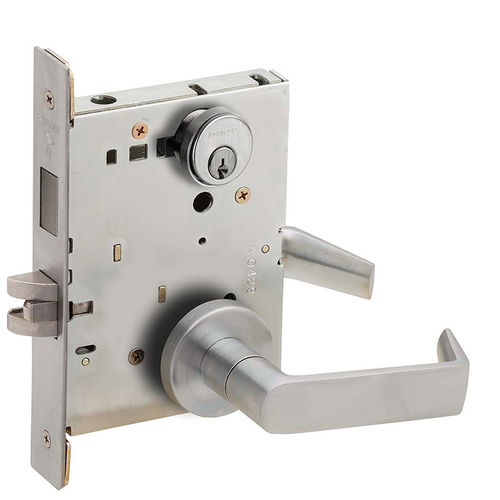

• Lock Body Mortises Inside the Edge of the Door
• UL Listed for 3 Hour Fide Door
• Tested and certified to ANSI/BHMA grade 1 operational and security standards
• UL listed for 3-hour fire door; spring-loaded fusible link inside lock case provides fail secure mode in case of fire
• Deadbolt features include anti-saw pin in bolt to prevent cut-through
• Security blocking hub prevents lock access by removing levers
• Vandlgard option allows the outside lever to rotate freely down to prevent damage from excessive force while in a locked state
• Lock monitoring options include request to exit (RX), latchbolt (LX), door position (DPS), and deadbolt (DM) (availability varies by function)
• Patented Everest 29 S123 keyway is provided standard which prohibits unauthorized key duplication
• Restricted geographically exclusive Primus upgraded security options offer advanced key control and exceptional physical security
• Two piece anti-friction tongue in latch bolt reduces wear
• Breakaway spindle keeps door secured in the event of vandalism
• Field reversible latch bolt allows handing change without opening case
• Every Schlage lock undergoes intensive testing to determine its ANSI grade level including: cycle, resistance, door impact, warped door and bolt strength tests
