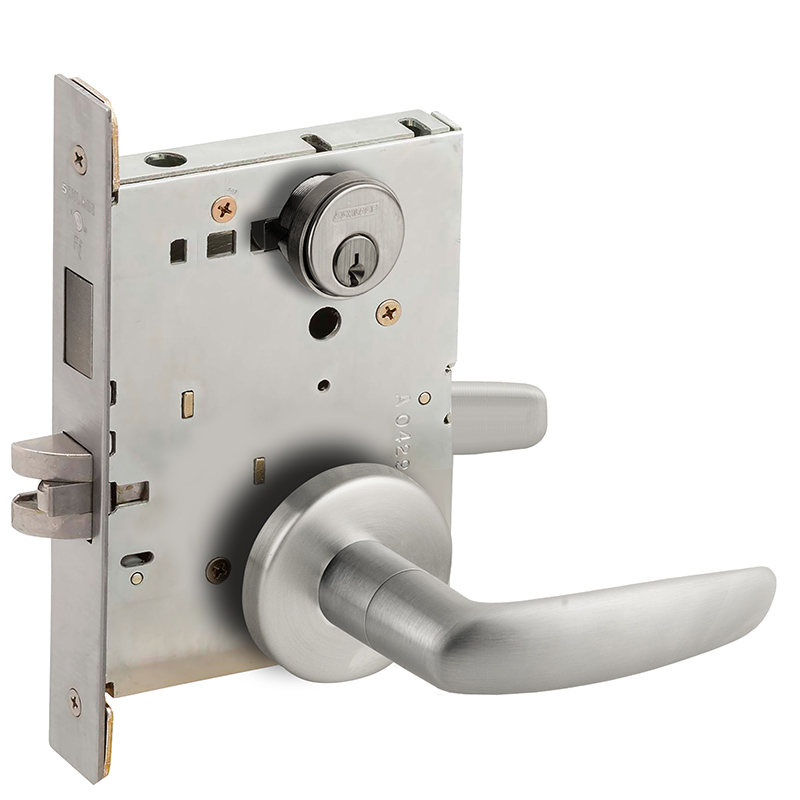

Schlage Commercial L9457P07B626 Classroom Security with Deadbolt Mortise Lock combines durability and functionality to enhance security in educational and commercial environments. Designed with a C Keyway, this lock features a sleek Satin Chrome finish that not only provides a modern aesthetic but also ensures long-lasting performance. This mortise lockset is equipped with a classroom security function, allowing for easy access while maintaining safety. The reversible handing accommodates various door configurations, making it a versatile choice for different installations. With a generous 2-3/4" backset, it is suitable for doors ranging from 1-3/4" thick. The lockset’s robust construction includes a 2-9/16" rose and a 4-5/8" lever, ensuring a secure grip and reliable operation. The ANSI strike with a 4-7/8" dimension and 1-1/4" lip further enhances its security features. Additionally, it is UL Listed for 3-hour fire doors, providing peace of mind in case of emergencies. Backed by a 3-year limited mechanical warranty and a 1-year limited electromechanical warranty, the Schlage L9457P07B626 is a trusted choice for those seeking a reliable locking solution. With its quality zinc base material and 6-pin keyway, this lockset meets the demands of high-traffic areas while offering convenient access control.
Classroom Security with Deadbolt Mortise Lock C Keyway with 07 Lever and B Rose Satin Chrome Finish
Product Assemble-to-Order. Lead Time 2-5 days
Ship via: Can Ship UPS
Ansi Function: F33 - Classroom Security with Deadbolt
Baa Qualified: Yes
Backset: 2-3/4" Backset
Bolt Protection: 3/4" Latch, 1" Deadbolt
Category: Mechanical Commercial Locksets
Country of Origin: Mexico
Cylinder Type: Conventional Cylinder
Design: 07 Lever and B Rose
Dimension: 2-9/16" Rose with 4-5/8" Lever and 2-7/8" Projection
Door Range: 1-3/4"
Door Thickness: 1-3/4"
Dust Box: Plastic
Finish: Satin Chrome
Finish Code: 626
Finish Description: Satin Chrome
Fire Rated: 3 Hours {A}
Function: 9457-Classroom Security w Deadbolt
Grade: Grade 1
Hand: Field Reversible
Handing: Reversible
Hazardous Material: NO
Keying: Keyed Different
Keys: Cut
Keyway: S123
Latch Faceplate Dimension: 1-1/4" x 8"
Lever Knob Design: 07 - Lever
Limited Warranty: 3 Years
Lock Face Size: 8" x 1-1/4"
Manufacturer Warranty: 3 Year Limited Mechanical Warranty and 1-Year Limited Electromechanical Warranty
Material: Zinc Base
No Of Inners: 1
No Of Pins: 6 Pin Keyway
Num Of Keys: 2
Num Pins: 6
Order_ Qty: 1
Rose Escutcheon Design: B - Rose
Screws: Combination
Series: L Series
Strike: ANSI Strike
Strike Dimension: 4-7/8" with 1-1/4" Lip
Strike Height: 4-7/8"
Strike Number: 10-072
Strike Type: ASA
Strike Width: 1-1/4"
Subcategory: Mortise Locksets
Subtype: Mortise Lock
Type: Locks, Cylinders, Cores, Keyblanks
Ul Listing Type: UL Listed for 3 Hour Fire Door
