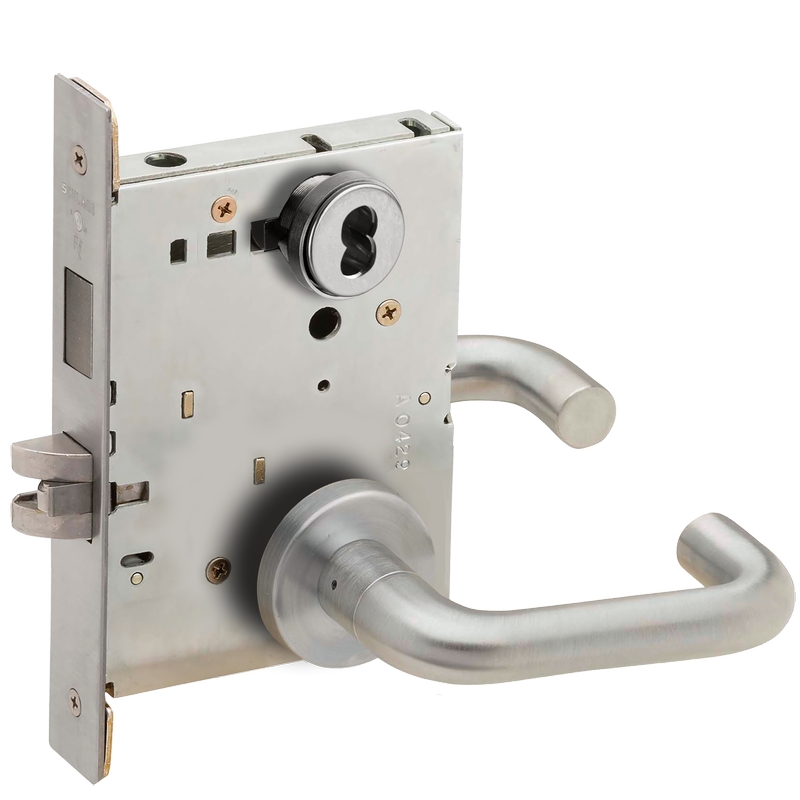

Schlage Commercial L9473J03A626 Dormitory / Bedroom Mortise Lock offers a sophisticated solution for secure access in residential and dormitory settings. Designed with user convenience in mind, this lock features a large format IC less core that enhances the flexibility of key management. The elegant satin chrome finish not only provides a sleek appearance but also ensures durability and resistance to wear. With a backset of 2-3/4 inches, this mortise lock is built to accommodate standard door preparations while delivering robust security. The dimensions of the lock include a 2-1/8 inch rose, a 4-3/4 inch lever, and a 2-13/16 inch projection, ensuring a comfortable grip and ease of use. The reversible handing allows for versatile installation options, making it suitable for various door orientations. The L9473J03A626 is part of Schlage's L Series, recognized for its reliability and strength. Equipped with an ANSI strike, this lock meets industry standards for performance and security. Whether for dormitory rooms or private bedrooms, this lock combines function and style, providing peace of mind and a lasting solution for any environment.
Attributes
Ansi Function: F21 - Entry Office
Baa Qualified: Yes
Backset: 2-3/4" Backset
Base Material: Brass or Bronze
Bolt Projection: 3/4" Latch, 1" Deadbolt
Bolt Protection: 3/4" Latch, 1" Deadbolt
Category: Mechanical Commercial Locksets
Commercial Residential: Commercial
Country of Origin: Mexico
Country of origin: Mexico
Cylinder Type: Schlage FSIC Less Core
Design: NULL
Dimension: 2-1/8" Rose with 4-3/4" Lever and 2-13/16" Projection
Door Range: 1-3/4"
Door Thickness: 1-3/4"
Dust Box: Plastic
Finish: Satin Chrome
Finish Code: 626
Finish Description: Satin Chrome
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Function: 9473-Dormitory Bedroom Lock
Grade: Grade 1
Hand: Field Reversible
Handing: Reversible
Hazardous Material: NO
Installation: Commercial
Latch Faceplate Dimension: 1-1/4" x 8"
Lever Knob Design: 03 - Lever
Leverknob Design: 03 Lever
Limited Warranty: 3 Years
Lock Face Size: 8" x 1-1/4"
Manufacturer Warranty: Limited 10 Year Mechanical and 3 Year Electro Mechanical Warranty
Material: Zinc Base
No Of Inners: 1
Order_ Qty: 1
Origin: Mexico
Pack Height: 5.63"
Pack Height 2: 5.63"
Pack Length: 10.38"
Pack Length 2: 10.38"
Pack Qty: 1
Pack Volume: 313.68 in³
Pack Volume 2: 313.68 in³
Pack Width: 5.38"
Pack Width 2: 5.38"
Rose Escutcheon Design: A - Rose
Roseescutcheon Design: A Rose
Screws: Combination
Series: L Series
Ship Weight: 6.3 lbs.
Std Strike Height: 4-7/8"
Std Strike Number: 10-072
Std Strike Type: ASA
Std Strike Width: 1-1/4"
Strike: ANSI Strike
Strike Dimension: 4-7/8" with 1-1/4" Lip
Strike Height: 4-7/8"
Strike Number: 10-072
Strike Type: ASA
Strike Width: 1-1/4"
Subcategory: Mortise Locksets
Subtype: Mortise Lock
Type: Locks, Cylinders, Cores, Keyblanks
Ul Listing Type: UL Listed for 3 Hour Fire Door
Unit of Measure: Each
Unit of Measure 2: Case
Unit of Measure 2 Qty: 6
