Schlage L9480J 17N 626 Lock Mortise Lock

Images may not represent actual product and finish

Schlage L9480J 17N 626 Lock Mortise Lock

Your Price: $1,072.21

Retail Price:$1,559.58

Your Savings:$487.37(31%)

Storeroom Mortise Lock with Deadbolt, 17N Design, FSIC Prep, Less Core, Satin Chrome

Part Number

: SCH_L9480J17N626

Availability: 11 In stock

Quantity

Description

Schlage L9480J 17N 626 Lock Mortise Lock

Schlage L-Series Extra Heavy Duty Mortise Locks are built to withstand the rigors of daily use without fail. Our L9000 Series locks are ideal for use in schools, hospitals and factories, where the finest hardware must also deliver consistent, dependable operation and stand up to constant use and abuse. We pay attention to these details so you can focus on creating a functional and aesthetically pleasing environment for your clients. In fact, every one of our L-Series locks meets ANSI Grade 1 standards for safety. A multitude of functions, finishes and trim designs are available to meet virtually every security and aesthetic requirement.

Storeroom Lock with Deadbolt, Latchbolt Retracted By Key or Lever, Outside Always Fixed, Deadbolt Thrown By Key or Thumbturn, Turning Inside Lever Retracts Both Dead and Latchbolt, Auxiliary Latch Deadlocks Latchbolt When Locked, Inside Lever Always Free
ANSI/BHMI Certified A156.13-2012
Commercial Grade 1
Lock Body Mortises Inside the Edge of the Door
UL Listed for 3 Hour Fide Door
Tested and certified to ANSI/BHMA grade 1 operational and security standards
UL listed for 3-hour fire door; spring-loaded fusible link inside lock case provides fail secure mode in case of fire
Deadbolt features include anti-saw pin in bolt to prevent cut-through
Security blocking hub prevents lock access by removing levers
Vandlgard option allows the outside lever to rotate freely down to prevent damage from excessive force while in a locked state
Lock monitoring options include request to exit (RX), latchbolt (LX), door position (DPS), and deadbolt (DM) (availability varies by function)
Patented Everest 29 S123 keyway is provided standard which prohibits unauthorized key duplication
Restricted geographically exclusive Primus upgraded security options offer advanced key control and exceptional physical security
Two piece anti-friction tongue in latch bolt reduces wear
Breakaway spindle keeps door secured in the event of vandalism
Field reversible latch bolt allows handing change without opening case
Every Schlage lock undergoes intensive testing to determine its ANSI grade level including: cycle, resistance, door impact, warped door and bolt strength tests

Product Assemble-to-Order. Lead Time 2-5 days

Attributes

Ship via: Can Ship UPS

Alternate Codes: L9480J17N626

Baa Qualified: Yes

Backset: 2-3/4"

Bolt Protection: 3/4" Latch, 1" Deadbolt

Category: Lock Sets, Mortise Locks, Mortise Lock Sets

Country of Origin: Mexico

Cylinder Type: Schlage FSIC Less Core

Door Application: Mortise Electric, Mortise Lock Body, Mortise Lock Sets

Door Thickness: 1-3/4"

Dust Box: Plastic

Finish: 626/US26D

Finish Code: 626

Finish Color: Brushed Chrome, Satin Chrome

Finish Description: Satin Chrome

Fire Rated: 3 Hours {A}

Function: 9480-Storeroom Lock w Deadbolt

Grade: Grade 1

Hand: Field Reversible

Lever Design: 17

Lever Knob Design: 17 - Lever

Limited Warranty: 3 Years

Lock Category: Mortise Lockset - Latch and Deadbolt

Lock Face Size: 8" x 1-1/4"

Rose Escutcheon Design: N - Escutcheon

Rose/ Escutcheon: N Escutcheon

Screws: Combination

Series: L Series

Strike: 10-072 Strike

Strike Height: 4-7/8"

Strike Number: 10-072

Strike Type: ASA

Strike Width: 1-1/4"

Subtype: Mortise Lock

Type: Locks, Cylinders, Cores, Keyblanks

Resources

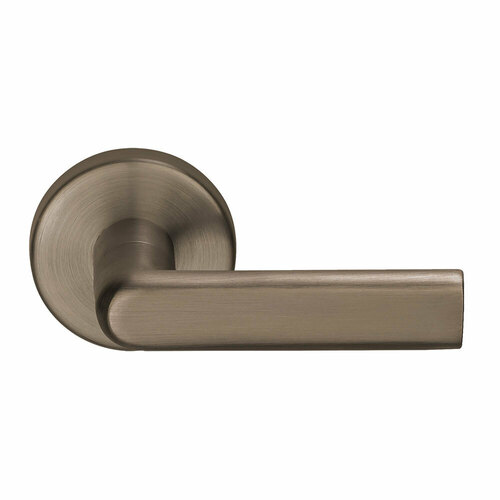

Schlage 09-454 01A 613 Lock Lock Parts
