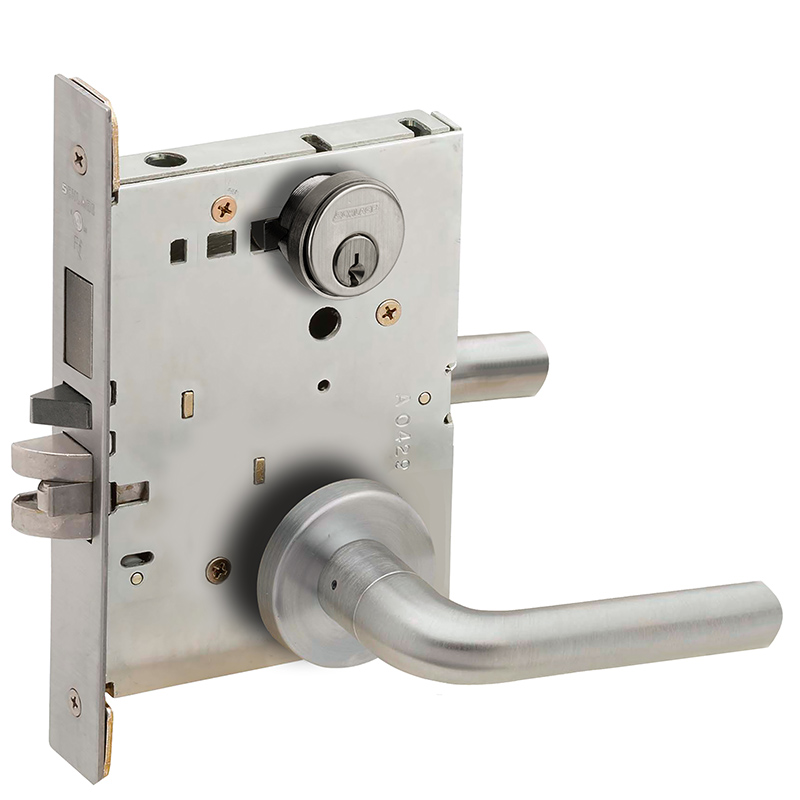

Schlage Commercial L9480P02A626 Storeroom with Deadbolt Mortise Lock combines security and style, making it an ideal choice for commercial applications. Designed for durability, this mechanical lockset features a storeroom function with a deadbolt, providing enhanced protection for your storeroom while allowing for convenient access when needed. The C keyway offers a reliable locking solution, and the reversible handing ensures versatility for various door configurations. This lockset is crafted with a satin chrome finish that not only enhances its aesthetic appeal but also provides resistance to wear and tear. The 2-3/4" backset accommodates standard door preparations, while its 2-1/8" rose and 4-3/4" lever design create a sleek profile suitable for any professional environment. With a door range of 1-3/4", it is compatible with a variety of commercial doors. Furthermore, the L9480P series is UL Listed for 3-hour fire doors, ensuring compliance with safety standards. With a 3-year limited mechanical warranty and a 1-year limited electromechanical warranty, you can trust in the quality and longevity of this product. Choose the Schlage Commercial L9480P02A626 for a secure, stylish, and dependable locking solution that meets the demands of today's commercial spaces.
Attributes
Baa Qualified: Yes
Backset: 2-3/4" Backset
Base Material: Brass or Bronze
Bolt Projection: 3/4" Latch, 1" Deadbolt
Bolt Protection: 3/4" Latch, 1" Deadbolt
Category: Mechanical Commercial Locksets
Commercial Residential: Commercial
Country of Origin: Mexico
Country of origin: Mexico
Cylinder Type: Conventional Cylinder
Design: 02 Lever and A Rose
Dimension: 2-1/8" Rose with 4-3/4" Lever and 2-13/16" Projection
Door Range: 1-3/4"
Door Thickness: 1-3/4"
Dust Box: Plastic
Finish: Satin Chrome
Finish Code: 626
Finish Description: Satin Chrome
Finish Family: Matte Silver
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Function: 9480-Storeroom Lock w Deadbolt
Function Family: Storeroom
Grade: Grade 1
Hand: Field Reversible
Handing: Reversible
Hazardous Material: NO
Installation: Commercial
Keying: Keyed Different
Keys: Cut
Keyway: S123
Latch Faceplate Dimension: 1-1/4" x 8"
Lever Knob Design: 02 - Lever
Leverknob Design: 02 Lever
Limited Warranty: 3 Years
Lock Face Size: 8" x 1-1/4"
Manufacturer Warranty: 3 Year Limited Mechanical Warranty and 1-Year Limited Electromechanical Warranty
Material: Zinc Base
No Of Inners: 1
No Of Pins: 6 Pin Cylinder
Num Of Keys: 2
Num Pins: 6
Of Keys: 2
Order_ Qty: 1
Origin: Mexico
Pack Height: 5.63"
Pack Height 2: 5.63"
Pack Length: 10.38"
Pack Length 2: 10.38"
Pack Qty: 1
Pack Volume: 313.68 in³
Pack Volume 2: 313.68 in³
Pack Width: 5.38"
Pack Width 2: 5.38"
Pins: 6
Rose Escutcheon Design: A - Rose
Roseescutcheon Design: A Rose
Screws: Combination
Series: L Series
Ship Weight: 6.3 lbs.
Std Keyway: S123
Std Strike Height: 4-7/8"
Std Strike Number: 10-072
Std Strike Type: ASA
Std Strike Width: 1-1/4"
Strike: ANSI Strike
Strike Dimension: 4-7/8" with 1-1/4" Lip
Strike Height: 4-7/8"
Strike Number: 10-072
Strike Type: ASA
Strike Width: 1-1/4"
Subcategory: Mortise Locksets
Subtype: Mortise Lock
Type: Locks, Cylinders, Cores, Keyblanks
Ul Listing Type: UL Listed for 3 Hour Fire Door
Unit of Measure: Each
Unit of Measure 2: Case
Unit of Measure 2 Qty: 6
